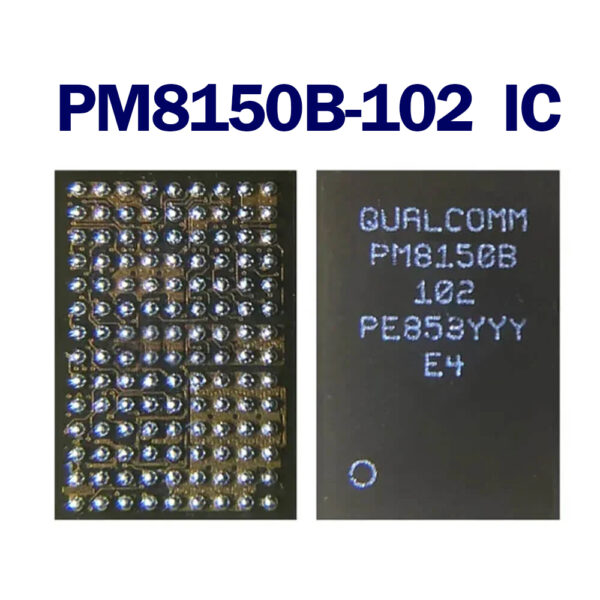

PM 8150B Mobile Phone IC
Optimize Your Mobile Device’s Performance
The PM 8150B Mobile Phone IC is expertly designed to enhance the efficiency and overall functionality of your mobile device. Catering to modern technological demands, this integrated circuit ensures stable performance for seamless everyday use. PM 8150B Mobile Phone IC
Precision Engineering for Compatibility
Engineered to meet the highest industry standards, the PM 8150B offers universal compatibility with a vast array of mobile devices. Whether you’re upgrading your gadget or seeking reliable replacements, this power management IC blends seamlessly with varying device architectures. PM 8150B Mobile Phone IC
Efficient and Reliable Power Management
Built to balance power efficiency and extended battery life, the PM 8150B ensures your device operates at its peak potential. Its robust design facilitates consistent energy distribution, reducing wear and tear over prolonged usage. PM 8150B Mobile Phone IC
The PM8150B is a critical, high-performance Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is a specialized variant within the PM8150 family, designed specifically to handle advanced battery charging, power distribution, and fuel gauge functions for flagship and high-end smartphones. PM 8150B Mobile Phone IC
Commonly found in devices like the Xiaomi Mi 9, Mi 10, Redmi K20 Pro, and Poco X3 Pro, this IC works in tandem with the primary PM8150 to ensure the device operates efficiently under heavy loads. PM 8150B Mobile Phone IC
PM8150B Technical Specifications Table
| Feature Category | Detailed Specification |
| Model Number | PM8150B (Secondary/Interface PMIC) |
| Manufacturer | Qualcomm |
| Common Variant | PM8150B-102 |
| Main Functions | Battery Charging, Fuel Gauge, VPH_PWR Management |
| Package Type | FOWPSP (Fan-Out Wafer-Level Pico-Scale Package) |
| Pin Configuration | 161-Pin Ball Grid Array (BGA) |
| Charging Technology | Support for Quick Charge 4.0+, USB-PD 3.0 |
| Input Voltage (VBUS) | Up to $12\text{V}$ (with $28\text{V}$ Over-Voltage Protection) |
| Max Charge Current | $4\text{A}$ Switch-mode high-efficiency charging |
| Output Rails | 8 SMPS (Buck) and 18+ LDO Regulators |
| Interface | SPMI (System Power Management Interface) / $\text{I}^2\text{C}$ |
| Oscillator | $38.4\text{ MHz}$ Crystal Support |
| Dimensions | Approx. $4.49\text{ mm} \times 5.07\text{ mm} \times 0.55\text{ mm}$ |
| Safety Features | OVP, OTP (Thermal), BCL (Battery Current Limiting) |
In-Depth Analysis of PM8150B Functions
1. Advanced Battery Management & Charging
Unlike the standard PM8150, the PM8150B is the “Charging Master.” It houses a high-efficiency 4A switch-mode charger that allows for rapid heat-controlled charging. It supports Qualcomm Quick Charge 4+ and is compliant with USB Type-C Rev 1.3. This chip is responsible for negotiating the power delivery (PD) protocols with the wall adapter to ensure the highest possible speed without damaging the battery cells. PM 8150B Mobile Phone IC
2. Battery Current Limiting (BCL) & Protection
The IC features a dedicated BCL hardware block. This is a safety layer that monitors the battery voltage and current in real-time (with less than $1\text{ ms}$ latency). If the battery voltage dips too low (UVLO) or the current surges too high (OCP), the PM8150B sends an immediate interrupt to the Snapdragon processor to throttle performance, preventing the phone from a sudden “blackout” or shutdown. PM 8150B Mobile Phone IC
3. Precision Fuel Gauge
The Fuel Gauge inside the PM8150B uses a hybrid algorithm of voltage and current monitoring to estimate the State of Charge (SoC). It factors in battery aging and temperature fluctuations to provide the user with an accurate percentage display. This prevents issues like the phone jumping from 20% to 5% instantly.
4. Integrated Housekeeping Features
Beyond power, the PM8150B manages several secondary “housekeeping” tasks:
-
Haptics: It often contains the driver for the Vibrator Motor (ERM or LRA).
-
LEDs: It manages high-side current sources for Notification LEDs or Flashlight modules, supporting PWM dimming for smooth light transitions.
-
Thermal Monitoring: It has dedicated ADC channels for NTC thermistors placed near the battery and charging port to monitor “skin temperature.“
Diagnostic Guide for Technicians
The PM8150B is a frequent culprit in hardware repairs. Technicians should look for the following symptoms if this IC is suspected to be faulty:
-
Charging Issues: The phone detects the charger but the percentage doesn’t increase (“Fake Charging”) or it only charges when powered off.
-
Dead with Short on VPH_PWR: If the main power rail (VPH_PWR) is shorted, the PM8150B is often the first place to check, as it generates this rail from the battery.
-
No Power / Bootloop: If the SPMI communication between the PM8150 and PM8150B is broken, the CPU will refuse to initiate the boot sequence.
-
Temperature Warnings: If the phone displays “Battery Temperature too High” even when cold, the internal ADC of the PM8150B might be damaged.
