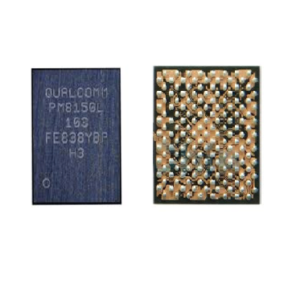

PM 8150L Mobile Phone IC

Efficient Power Management for Mobile Devices

PM 8150L Mobile Phone IC is designed to deliver seamless energy management for your devices. PM 8150L Mobile Phone IC It ensures optimized performance, paving the way for longer battery life and better device functionality. PM 8150L Mobile Phone IC

Compact Design with Robust Features

This cutting-edge component boasts a compact design, making it an ideal fit for modern phones. Its advanced circuitry ensures compatibility with a wide range of mobile platforms, while maintaining efficiency and reliability. PM 8150L Mobile Phone IC

Trusted Solution for Modern Smartphones

The PM 8150L Mobile Phone IC is a trusted choice for manufacturers seeking a high-quality, durable, and performance-driven integrated circuit. Experience a balanced blend of innovation, precision, and durability suited for today’s fast-paced tech environment. PM 8150L Mobile Phone IC

The PM8150L is a high-performance Secondary Power Management Integrated Circuit (PMIC) designed by Qualcomm. It is a critical companion chip used alongside the primary PM8150 IC to support flagship chipsets like the Snapdragon 855 and Snapdragon 865.

Unlike the primary PMIC which handles the CPU core, the PM8150L is specialized for high-current peripherals, display power, and fast-charging logistics. PM 8150L Mobile Phone IC

1. PM8150L Core Specifications Table

Feature Category	Technical Specification Detail
Manufacturer	Qualcomm
Model Number	PM8150L (Secondary/Companion PMIC)
Common Variants	PM8150L-103 (Standard flagship variant)
Package Type	FOWPSP (Fan-Out Wafer Level Pico-Scale Package)
Pin/Ball Count	161-Ball Grid Array
Compatible Chipsets	Snapdragon 855 (SM8150), Snapdragon 865 (SM8250)
Regulators (SMPS)	2 High-Frequency (HF) Buck, 8 Fast-Transient (FT) Buck
LDO Regulators	18 Linear Regulators (Low-noise for sensitive parts)
Voltage Range	$0.5\text{V}$ to $2.1\text{V}$ (Regulated outputs)
Control Protocol	SPMI (System Power Management Interface)
Key Functions	Display Power, Flash LED, Haptics, Battery Charging Support
Safety Features	Over-Temperature (OTP), Over-Voltage (OVP), Under-Voltage (UVLO)

2. Functional Roles of PM8150L

While the main PM8150 focuses on the “brain” (Processor and RAM), the PM8150L manages the “body” of the smartphone.

A. Display and Backlight Management

The PM8150L is responsible for generating the high voltages required for modern AMOLED and LCD panels. It includes specialized Boost Converters that provide the $+5\text{V}$ and $-5\text{V}$ (VSP/VSN rails) necessary for the display driver IC (DDIC). If this chip fails, the phone may turn on (vibrate/ring) but show a completely black screen.

B. Camera and Flash Control

It provides dedicated LDO (Low Drop-Out) lines for camera modules. Cameras require extremely “clean” power to avoid noise in photos. Additionally, the Flash LED driver is often integrated into the PM8150L, managing the high-current burst needed for the flashlight.

C. Haptics and Audio Auxiliary

The motor driver for haptic feedback (vibration) is controlled by this IC. It also supports auxiliary power for audio codecs and RF components to ensure clear signal reception and sound output.

3. Thermal and Safety Mechanisms

The PM8150L is designed for high-density environments where heat is a major factor.

Intelligent Throttling: It monitors the temperature of the charging and display rails. If it detects a surge (e.g., during $4\text{K}$ video recording or fast charging), it communicates with the CPU via the SPMI interface to reduce the power load.
Current Protection: It features OCP (Over-Current Protection) on its buck converters. This prevents a tiny liquid drop near the display connector from burning the entire motherboard.

4. Technician’s Troubleshooting Guide

In mobile repair shops, the PM8150L is a high-demand part for flagship repairs.

“Half-Dead” Symptoms: If a phone has a “short circuit” but only in specific sections (like the backlight or camera), the PM8150L is the primary suspect.
No Graphics/No Light: If the screen is black but the motherboard shows a normal “Boot Sequence” current on the DC Power Supply ( $200\text{mA}$ to $800\text{mA}$ ), the PM8150L’s boost circuit has likely failed.
Variant Importance: Always check the code (e.g., 103). While the PM8150 and PM8150L belong to the same family, they are not interchangeable. Replacing one with the other will cause a permanent short circuit on the VPH_PWR rail.
