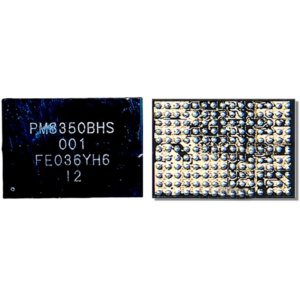

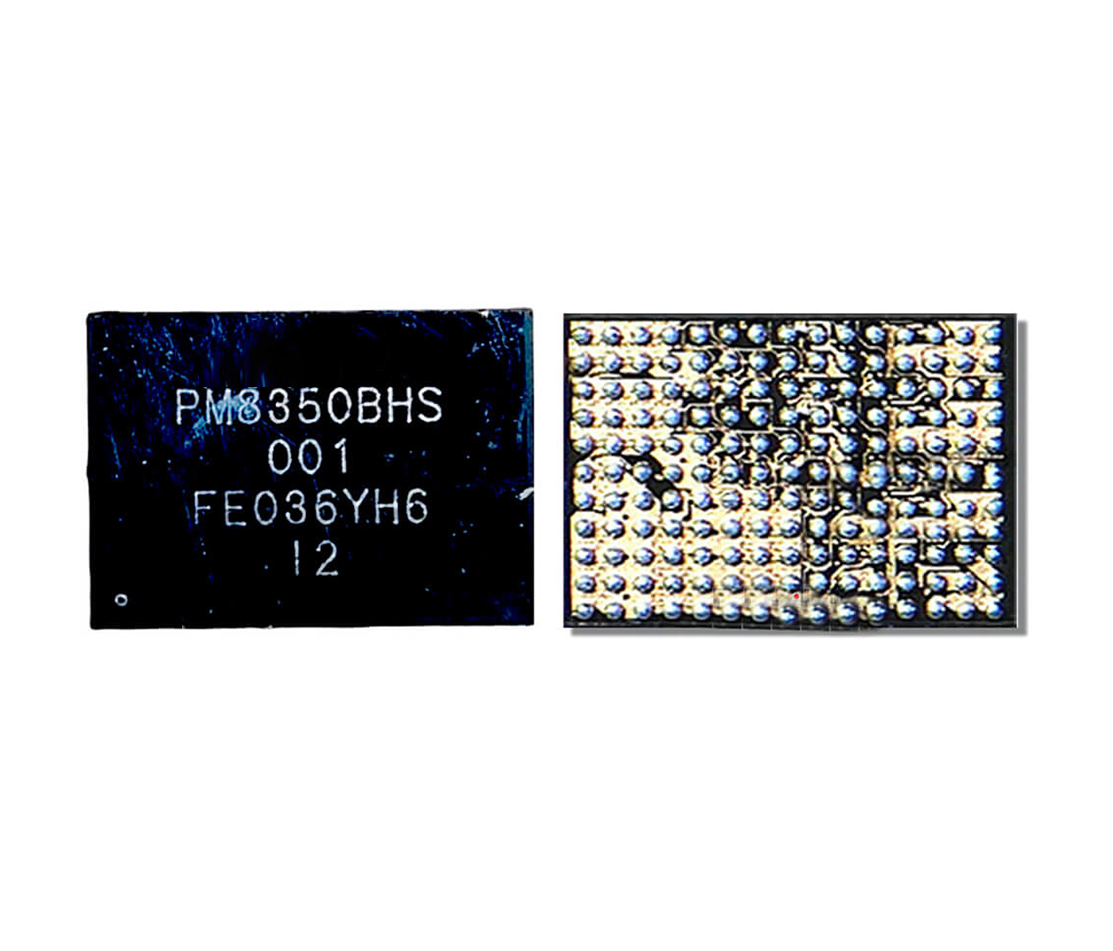

PM 8350BHS Mobile Phone IC
Reliable Performance for Modern Mobile Devices
The PM 8350BHS Mobile Phone IC is crafted to deliver consistent and reliable performance, making it an essential component for enhancing the functionality of today’s advanced mobile devices. Its optimized design ensures long-lasting and efficient operation, perfect for cutting-edge smartphone architectures. PM 8350BHS Mobile Phone IC
Compact and Efficient Design
Designed with precision, the PM 8350BHS integrates seamlessly into compact device designs, granting manufacturers flexibility and efficiency. Its innovative engineering reduces power consumption while maintaining peak performance, contributing to extended battery life and sustainable energy use. PM 8350BHS Mobile Phone IC
Trusted Quality and Versatility
Built to meet industry standards, the PM 8350BHS IC offers unparalleled adaptability, suiting a variety of mobile device needs. Whether you’re upgrading current devices or designing new models, this versatile IC ensures a smooth integration process and superior output quality.
The PM8350BHS is a high-performance, secondary Power Management Integrated Circuit (PMIC) designed by Qualcomm. It is a specialized variant within the PM8350 family, primarily engineered to support flagship smartphones running on the Snapdragon 888 and Snapdragon 8 Gen 1 platforms. PM 8350BHS Mobile Phone IC
Unlike a primary PMIC that handles basic boot-up, the PM8350BHS is a “heavy-lifter” that manages high-current demands for fast charging, high-refresh-rate displays, and GPU-intensive tasks. PM 8350BHS Mobile Phone IC
PM8350BHS Technical Specifications Table
| Feature Category | Technical Specification Detail |
| Manufacturer | Qualcomm |
| Model Number | PM8350BHS (Variant of PM8350B/BH) |
| Architecture | Multi-channel Buck-Boost & LDO Regulator |
| Compatible CPUs | Snapdragon 888, 888+, 8 Gen 1 |
| Package Type | BGA (Ball Grid Array) / Fine-pitch QFN |
| Charging Support | Qualcomm Quick Charge 5 / USB-PD 3.0 (PPS) |
| Max Charging Speed | Supports up to $65\text{W} – 120\text{W}$ (System dependent) |
| Buck Converters | 8+ Independent High-Current Rails |
| Output Voltage Range | $0.6\text{V}$ to $5.5\text{V}$ |
| Efficiency | ~96% Peak Efficiency (Conversion) |
| Interface Protocol | SPMI (System Power Management Interface) / $\text{I}^2\text{C}$ |
| Safety Features | OVP, OTP, Thermal Throttling, Current Limiting |
| Thermal Limit | Max Operating $125^\circ\text{C}$ (Junction Temperature) |
In-Depth Analysis of PM8350BHS Functions
1. Advanced Charging Logic
The “BHS” suffix often denotes a version optimized for High-Speed (HS) charging and thermal efficiency. While the main PMIC handles the device’s idle state, the PM8350BHS kicks in during fast-charging cycles. It communicates with the USB-C controller to negotiate high-wattage input (like $65\text{W}$ or $120\text{W}$) and converts it into a voltage that the battery can safely absorb without excessive heat. PM 8350BHS Mobile Phone IC
2. High-Performance Display & GPU Support
Flagship phones today use 120Hz/144Hz OLED panels and high-clocked GPUs. These components require extremely stable “low-ripple” power. The PM8350BHS provides dedicated power rails for the GPU core and the display driver. If this IC fails, the phone might power on but show a “Black Screen” or crash specifically when a 3D game is launched. PM 8350BHS Mobile Phone IC
3. Thermal Management & Stability
Because it is used in premium devices like the ASUS ROG Phone 5/6, Xiaomi 11/12, and OnePlus 9/10 series, it features advanced thermal sensors. It uses “Dynamic Voltage Scaling” to adjust power in real-time. If the gaming load increases, it slightly raises the voltage to prevent system lag; if the phone gets too hot, it sends a signal to the CPU to reduce performance.
Repair & Diagnostic Insights (600-Word Context)
Common Failure Symptoms:
-
The 1% Charging Bug: A very common issue in Xiaomi 11 series where the phone won’t charge beyond 1% or doesn’t show the charging icon. This is almost always a PM8350BHS/BH failure.
-
Sudden Reboots: If the IC cannot maintain the “Vcore” voltage for the Snapdragon 888, the phone will reboot as soon as it tries to load the OS.
-
No Power (Dead): If the internal MOSFETs of the PM8350BHS short-circuit, it can pull down the main VPH_PWR line, making the entire motherboard “dead” with no DC supply reading.
Technician’s Comparison: PM8350 vs. PM8350BHS
While the chips look similar, they are not always interchangeable.
-
PM8350: The primary controller (handles startup, audio, and basic LDOs).
-
PM8350BHS: The secondary controller (handles charging, high-power bucks, and specialized sensors).
-
Substitution: You must match the “BHS” or “BH” marking exactly. Using a standard PM8350 in place of a BHS variant may result in the phone booting but failing to charge or losing display functionality.
Installation Best Practices
Due to its high ball count and thermal pad, the PM8350BHS requires precision reballing. Technicians should use high-quality lead-free solder paste with a melting point of approximately $217^\circ\text{C} – 225^\circ\text{C}$. Overheating during installation can damage the internal silicon, leading to “half-dead” symptoms where some functions work but others (like Wi-Fi or Fast Charge) do not.
