PM 8841 Mobile Phone IC
Unmatched Efficiency and Reliability

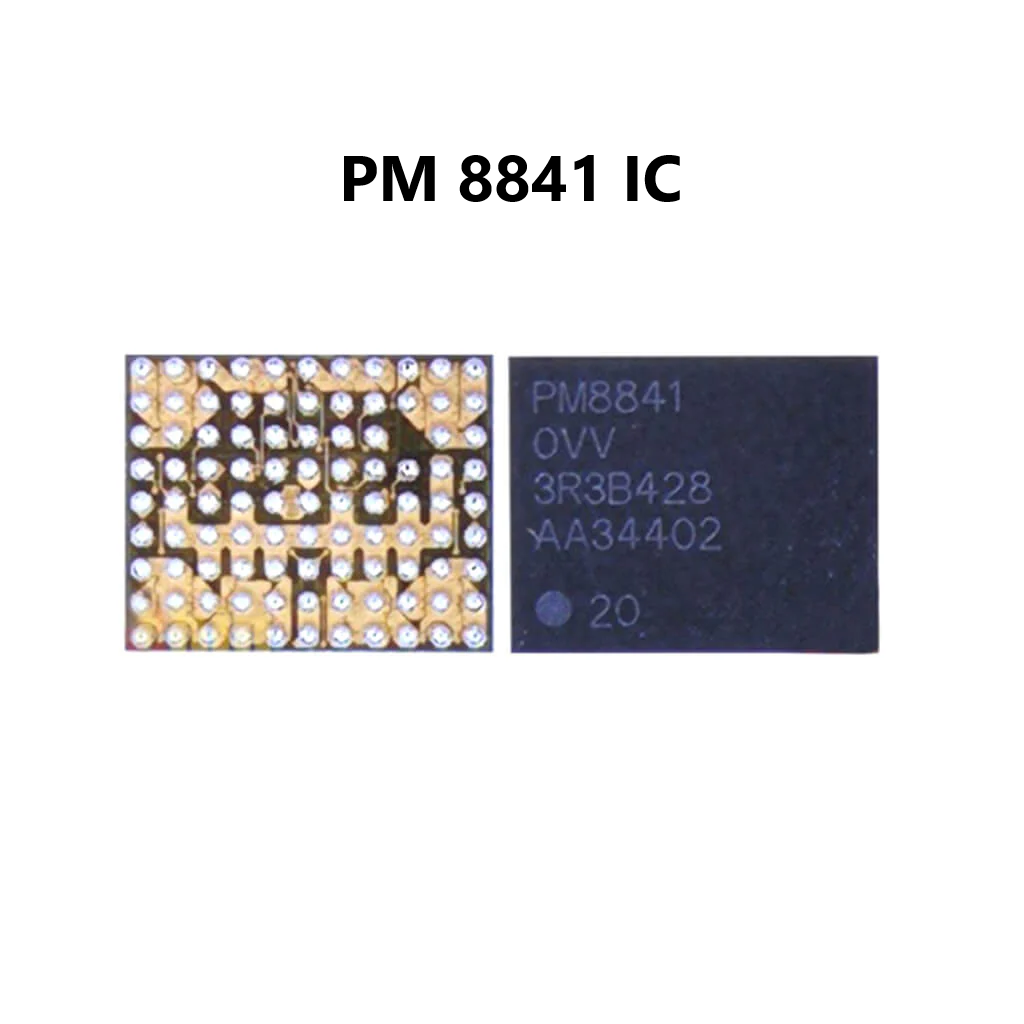

The PM 8841 Mobile Phone IC is a cutting-edge solution designed to enhance the performance and longevity of mobile devices. Engineered for superior power management, this IC ensures a seamless and efficient operation for a wide range of mobile devices. PM 8841 Mobile Phone IC
Compact Design, Maximum Output
With its compact structure and advanced circuitry, the PM 8841 fits perfectly into modern mobile designs without compromising on power or performance. This IC is meticulously crafted to meet the high demands of mobile technology, making it an ideal choice for both manufacturers and repair specialists. PM 8841 Mobile Phone IC
Built for Durability and Compatibility
Crafted with precision and durability in mind, the PM 8841 IC ensures long-lasting performance and compatibility with various device configurations. Whether for replacements or upgrades, this product delivers consistent and dependable results. PM 8841 Mobile Phone IC
PM8841 ek mahatvapoorn Power Management Integrated Circuit (PMIC) hai jo mukhya roop se Qualcomm Snapdragon chipsets ke saath purane premium aur mid-range smartphones mein paya jata hai (jaise Sony Xperia Z1, Z3, aur Xiaomi ke kuch models). Ye IC battery se aane wali energy ko manage karti hai aur phone ke alag-alag hisson ko sahi voltage supply karti hai. PM 8841 Mobile Phone IC
Niche PM8841 ki puri specifications aur technical details di gayi hain:
PM8841 Full Specifications Table
| Feature Category | Technical Specification Detail |
| Manufacturer | Qualcomm (Mukhya roop se Snapdragon ke liye) |
| Model Number | PM8841 (Secondary Power IC) |
| Package Type | CSP (Chip Scale Package) / BGA (Ball Grid Array) |
| Pin/Ball Count | 98-Ball Grid Array (CSP98) |
| Operating Voltage | $3.4\text{V}$ to $4.4\text{V}$ (Standard Mobile Battery Input) |
| Functionality | Multi-channel Step-down Buck Converter |
| Buck Regulators | 8-Phase Buck Converters (High current delivery) |
| Output Current | Up to $3\text{A}$ – $5\text{A}$ on specific rails |
| Frequency | High-frequency switching ($2\text{ MHz}$ to $4\text{ MHz}$) |
| Safety Features | OVP (Over Voltage), OTP (Over Temperature), OCP |
| Compatible CPUs | Snapdragon 800, 801, 805 series |
| Interface | SPMI (System Power Management Interface) |
| Operating Temp | $-40^\circ\text{C}$ to $+125^\circ\text{C}$ |
PM8841 IC ka Detailed Overview
1. Role in Smartphone Architecture
PM8841 aksar ek “Secondary PMIC” ke roop mein kaam karti hai. Iska mukhya kaam CPU (Central Processing Unit) aur GPU (Graphics Processing Unit) ko Core Voltage dena hota hai. Kyunki modern processors ko bahut zyada current ki zaroorat hoti hai ($5\text{ Amperes}$ tak), PM8841 is load ko handle karne ke liye 8-phase buck architecture ka istemal karti hai taaki efficiency bani rahe aur heat kam paida ho. PM 8841 Mobile Phone IC
2. Power Conversion & Buck Regulators
Is IC mein high-efficiency switching regulators hote hain. Ye regulators battery voltage ko step-down karke $0.8\text{V}$ se $1.2\text{V}$ ke beech le aate hain, jo ki processor ki speed aur load ke mutabiq lagatar badalta rehta hai (jisey Dynamic Voltage Scaling kehte hain). Iski high frequency ki wajah se motherboard par choti inductors (coils) ka istemal kiya ja sakta hai, jo space bachata hai. PM 8841 Mobile Phone IC
3. Battery aur Thermal Management
PM8841 sirf power supply nahi karti, balki ye device ki “Health” par bhi nazar rakhti hai:
-
Thermal Monitoring: Agar gaming ya heavy multitasking ke waqt processor zyada garam ho jaye, toh PM8841 turant voltage supply kam kar deti hai taaki phone damage na ho. PM 8841 Mobile Phone IC
-
Current Protection: Agar motherboard par kisi component mein short-circuit hota hai, toh ye IC power cut-off kar deti hai, jise technician “Dead Shorting” troubleshoot karte waqt check karte hain. PM 8841 Mobile Phone IC
4. Common Repairing Challenges
Mobile technicians ke liye PM8841 ek challenging chip ho sakti hai:
-
Shorting Issues: Agar phone bilkul on nahi ho raha aur multimeter par “V-Core” rails short dikha rahi hain, toh aksar PM8841 ke andar ka internal capacitor fail ho jata hai.
-
Reballing: Iska CSP98 package bahut chota hota hai, isliye ise nikaalne aur wapas lagane (reballing) ke liye precision aur sahi temperature ($350^\circ\text{C}$ approx) ki zaroorat hoti hai.
-
Compatibility: Dhyan rahe ki PM8841 ko sirf PM8841 se hi badla ja sakta hai. Ye PM8941 ya kisi aur model ke saath pin-compatible nahi hoti.
5. Popular Devices List
Ye IC in mashoor devices mein mukhya roop se payi jati hai:
-
Sony Xperia Series: Z1, Z2, Z3, Z Ultra.
-
Samsung: Galaxy Note 3 (N9005 variant).
-
Xiaomi: Purane Mi series flagship models.
-
LG: G2 aur G3 models.
Summary
PM8841 ek high-performance power controller hai jo heavy processing tasks ke waqt stability provide karti hai. Iski 8-phase design ise purane flagship phones ka ek mazboot hissa banati hai. Agar aapka phone heavy use par restart ho raha hai ya CPU rails par voltage nahi ban raha, toh PM8841 ki testing sabse zaroori hai.
