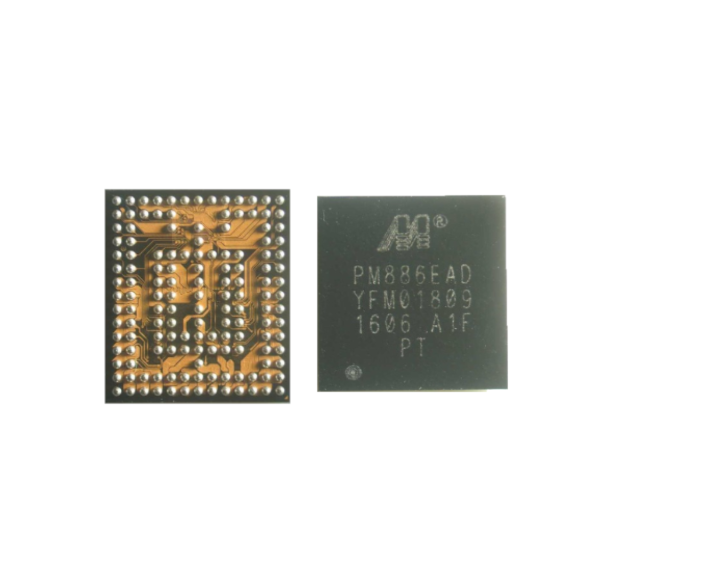

PM 886 Mobile Phone IC
Designed for Optimal Performance
The PM 886 Mobile Phone IC is engineered to deliver unmatched efficiency and reliability for today’s advanced mobile devices. Whether you’re building a new smartphone or upgrading an existing product, this IC ensures seamless operation and superior performance. PM 886 Mobile Phone IC
Compact Design and Superior Technology
Maximize device functionality with the PM 886’s compact and robust design. Built for precision, it supports efficient power management and advanced processing capabilities to ensure your device operates at peak efficiency. PM 886 Mobile Phone IC
Future-Ready Integration
Offering easy integration and compatibility with a wide range of mobile platforms, the PM 886 IC is the perfect solution for manufacturers aiming to stay ahead in the competitive mobile technology landscape. PM 886 Mobile Phone IC
The PM886 (often referred to as PM886EAD) is a dedicated Power Management Integrated Circuit (PMIC) designed primarily for entry-level and mid-range mobile devices. Manufactured by companies such as Marvell (and often associated with Qualcomm or MediaTek ecosystems), it plays a vital role in regulating voltage and managing power distribution across the smartphone’s motherboard. PM 886 Mobile Phone IC
Below are the comprehensive specifications and technical details for the PM886 Mobile Phone IC. PM 886 Mobile Phone IC
PM886 IC Technical Specifications
| Feature | Specification |
| Model Name | PM886 / PM886EAD |
| Component Type | Power Management Integrated Circuit (PMIC) |
| Package Type | BGA (Ball Grid Array) / SOP (Small Outline Package) |
| Operating Voltage | 3.7V to 5V (Standard Mobile Supply) |
| Dissipation Power | $5V$ Nominal |
| Output Rails | Multiple LDO (Low Dropout) & Buck Regulators |
| Operating Temperature | $0^\circ\text{C}$ to $45^\circ\text{C}$ (Optimal range) |
| Application | Power Distribution, Signal Stability, Battery Charging Control |
| Compatibility | Samsung Galaxy J1 Ace (J110), Huawei G620, Universal Repair |
| Pins/Solder Balls | High-precision micro-solder balls for PCB alignment |
| Manufacturing Material | High-grade durable silicon with heat-resistant substrate |
Key Features and Functionality
The PM886 is more than just a power regulator; it is the “beating heart” of the phone’s power system. Its primary responsibilities include:
-
Voltage Regulation: It takes the fluctuating output from the Lithium-ion battery and converts it into stable, fixed voltages (e.g., $1.8V$, $2.8V$, $3.3V$) required by the processor, RAM, and display.
-
Power Sequencing: Ensures that different components of the phone turn on in the correct order to prevent electrical shorts or data corruption. PM 886 Mobile Phone IC
-
Battery Management: Often assists in monitoring the charging cycle and protecting the motherboard from irregular power inputs or surges. PM 886 Mobile Phone IC
-
Heat Dissipation: Designed with a thermal management system to prevent the IC from overheating during heavy processing tasks. PM 886 Mobile Phone IC
Device Compatibility & Repair Usage
The PM886 IC is widely used as a replacement part in professional mobile repair. It is famously found in the following models:
-
Samsung Galaxy J1 Ace (SM-J110 series): Specifically used as the main power supervisor.
-
Huawei G620: Integrated for power delivery and signal stability.
-
Generic Android Handsets: Often utilized in low-cost smartphones using older Marvell or Qualcomm-adjacent architectures.
Note for Technicians: Replacing the PM886 requires professional BGA reballing tools. Since it is a “Primary Power IC,” a faulty PM886 will usually result in a “Dead” phone state where the device refuses to trigger the boot sequence or shows no sign of charging.
Technical Performance Indicators
The PM886 is engineered for Signal Stability. In modern smartphone architecture, even a slight fluctuation in voltage can lead to a “Ghost Touch” on the screen or intermittent Wi-Fi signals. The PM886 addresses this by using high-frequency switching regulators that minimize electromagnetic interference (EMI).
Common Failure Symptoms
If the PM886 IC is damaged, you may notice:
-
No Power: The phone does not respond to the power button.
-
Short Circuit: The motherboard shows a high current draw on a DC Power Supply.
-
Overheating: The area near the CPU becomes hot immediately after connecting a battery.
-
Charging Issues: The phone displays a charging icon but the percentage never increases.
