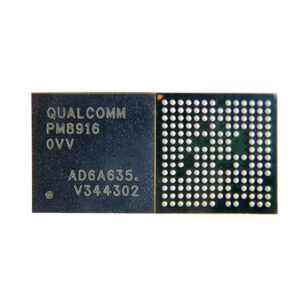

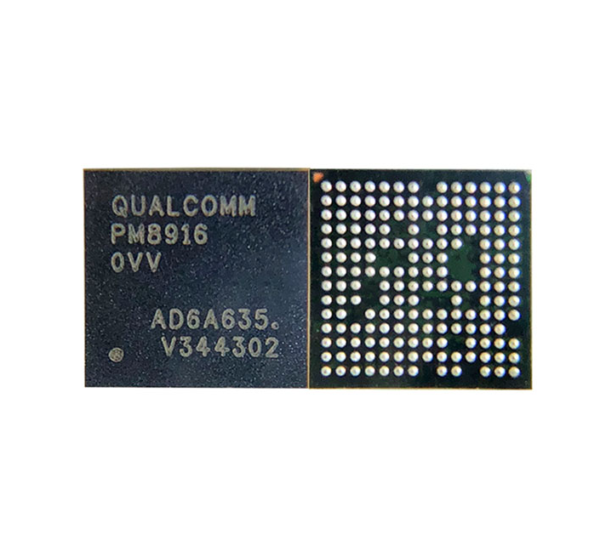

PM 8916 Original Mobile Phone IC
Boost Your Phone’s Efficiency
The PM 8916 Original Mobile Phone IC is specifically designed to optimize your smartphone’s performance and ensure longevity. Whether you’re repairing a faulty device or upgrading components, this IC offers seamless integration and reliable functionality. PM 8916 Original Mobile Phone IC
Original Design, Premium Quality
Manufactured to high standards, the PM 8916 IC guarantees compatibility with your device while enhancing its efficiency. Its robust construction ensures durability and exceptional performance, even in demanding conditions. Trust the original design to deliver optimal results.
Why Choose PM 8916?
This product is ideal for professionals and tech enthusiasts seeking dependable hardware for smartphone repairs or upgrades. The PM 8916 Mobile Phone IC comes with a proven track record, making it a trusted component for restoring your phone’s functionality.
The PM8916 is a highly integrated Power Management Integrated Circuit (PMIC) developed by Qualcomm, specifically designed to partner with the Snapdragon 410 (MSM8916) and 410E application processors.1 It is a critical component in mid-range smartphones and IoT devices, managing everything from battery charging to the precise voltage requirements of the CPU, memory, and RF components.2
The PM8916 is a highly integrated Power Management Integrated Circuit (PMIC) developed by Qualcomm, specifically designed to pair with the Snapdragon 410 and 415 processor series. It is a critical component in mid-range smartphones and tablets from the mid-2010s (found in devices like the Samsung Galaxy A-series, Xiaomi Redmi 2, and Lenovo A6000), acting as the “heart” of the device’s electrical system. PM 8916 Original Mobile Phone IC
Below are the full technical specifications and functional details of the PM8916. PM 8916 Original Mobile Phone IC
1. General Product Overview
The PM8916 manages the battery charging, voltage regulation, and power-up sequencing for the entire mobile system. It converts the raw battery voltage into multiple precise power “rails” required by the CPU, GPU, RAM, and internal modems. PM 8916 Original Mobile Phone IC
| Feature | Specification Details |
| Manufacturer | Qualcomm |
| Part Number | PM8916 (Variants: 0VV, 001, 102) |
| Compatibility | Snapdragon 410 (MSM8916), Snapdragon 415 |
| Package Type | BGA (Ball Grid Array) |
| Function | Multi-rail Power Management & Battery Charging |
| Primary Input | Single-cell Li-ion / Li-poly Battery (3.7V – 4.4V) |
| Charging Support | Integrated Linear Charger (LBC) |
2. Technical Power Specifications
The PM8916 uses a combination of Switch Mode Power Supplies (SMPS/Buck) for high-efficiency high-current tasks and Low-Dropout Regulators (LDOs) for noise-sensitive components. PM 8916 Original Mobile Phone IC
Voltage Rails & Regulation
| Regulator Type | Count | Common Output Voltages | Typical Use Case |
| Buck Converters (SMPS) | 4 – 6 | 0.5V to 2.1V (Adjustable) | CPU Cores, GPU, System Memory (DDR) |
| LDO Regulators | Up to 20+ | 1.2V, 1.8V, 2.8V, 3.3V | Camera, Sensors, Audio, SIM card, RF |
| Boost Converter | 1 | 5.0V | USB OTG power, Display Backlight (some models) |
Functional Pin Groups
-
VBAT / VPH_PWR: Main battery and system power inputs. PM 8916 Original Mobile Phone IC
-
VREG_S1/S2/S3/S4: Buck regulator outputs for high-power demands. PM 8916 Original Mobile Phone IC
-
VREG_L1 to L20: LDO outputs for clean, low-current power. PM 8916 Original Mobile Phone IC
-
CHG_IN: Input from the USB port/charger (typically supports up to 6.2V).
-
MPPs (Multi-Purpose Pins): Can be configured as GPIOs, ADCs, or current sinks. PM 8916 Original Mobile Phone IC
3. Integrated Sub-Systems
The PM8916 is more than just a voltage regulator; it contains several sub-processors and controllers:
-
Battery Management (BMS): Includes an integrated Fuel Gauge that uses an ADC (Analog-to-Digital Converter) to monitor battery voltage, current, and temperature (via NTC thermistor) for accurate percentage reporting.
-
Charging Control: Features an internal linear battery charger with over-voltage protection (OVP) and JEITA-compliant thermal monitoring to ensure safe charging.
-
Audio Codec (Partial): In many Snapdragon 410 designs, the PM8916 houses basic audio processing circuitry to drive the earpiece, speaker, and microphones.
-
Control Interface: Uses the SPMI (System Power Management Interface) to communicate with the Snapdragon processor, allowing the CPU to dynamically adjust voltages (DVFS) to save power.
4. Key Performance Characteristics
| Parameter | Value / Range |
| Input Voltage (USB_IN) | 4.4V to 6.2V (Max 16V OVP) |
| Operating Temperature | -25°C to +85°C |
| Quiescent Current | Ultra-low in Deep Sleep modes |
| Protections | Thermal Shutdown, Over-Current (OCP), Under-Voltage (UVLO) |
| Clock Support | Integrated 32.768 kHz Sleep Clock driver |
5. Application and Repair Insights
For mobile technicians, the PM8916 is a common point of failure. Because it handles the primary power from the charger, it is susceptible to damage from faulty cables or power surges.
-
Common Symptoms of Failure: Device not turning on (Dead), no charging, “Short-circuit” on the motherboard, or the device getting stuck at a specific current draw (e.g., 0.05A) on a DC Power Supply.
-
Replacement Notes: When replacing, the “0VV” or “001” suffix usually indicates versioning. While often interchangeable in some circuits, it is best practice to match the exact original part number.
-
Soldering: Being a BGA chip, it requires professional hot-air rework stations and a specific BGA stencil for “reballing” if it is being moved from a donor board.
