PM 8917 Mobile Phone IC
Powerful Mobile Phone IC for Enhanced Efficiency
The PM 8917 Mobile Phone IC is designed to deliver seamless performance and reliability for a wide range of mobile devices. Engineered with precision, this integrated circuit enhances device functionality, ensures efficient power management, and supports advanced mobile operations. PM 8917 Mobile Phone IC
Optimized for Modern Device Compatibility

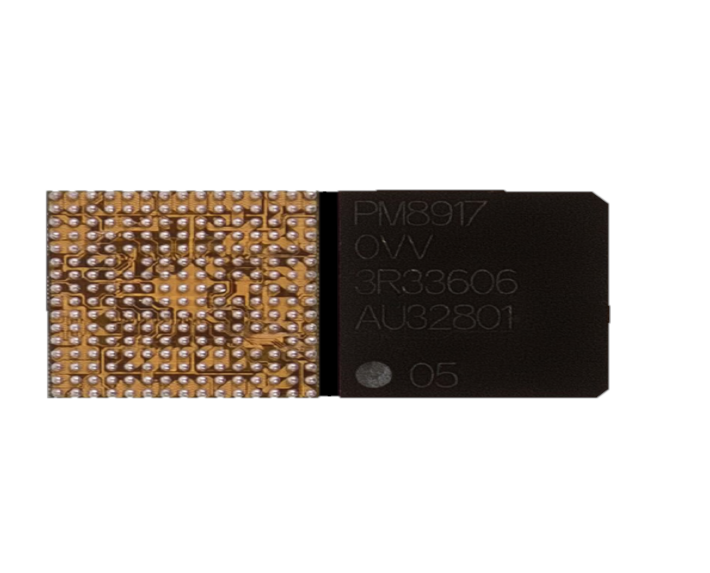

This IC ensures compatibility with various mobile platforms, making it an essential component for manufacturers and repair specialists. Its cutting-edge construction ensures efficient energy distribution, promoting longevity and peak performance for your devices. PM 8917 Mobile Phone IC
Reliable, Durable, and Built for Performance
With the PM 8917 Mobile Phone IC, you benefit from durable, high-quality engineering that enhances mobile performance. Whether for new production or replacements, this IC promises lasting quality that supports all your technical needs.

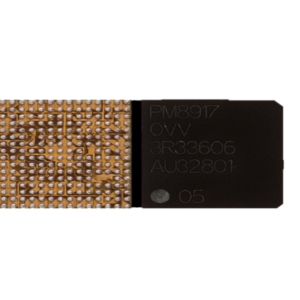

The PM8917 is a critical Power Management Integrated Circuit (PMIC) designed by Qualcomm. Primarily found in legacy flagship and mid-range devices like the Samsung Galaxy S4 (i9500/i9505) and Galaxy Mega 6.3, it acts as the “heart” of the phone’s electrical system. PM 8917 Mobile Phone IC
Its primary role is to convert the raw voltage from the battery into various regulated voltages required by the processor (Snapdragon 600 series), memory, display, and radio frequency (RF) components. PM 8917 Mobile Phone IC
PM8917 Technical Specifications
| Feature | Specification |
| Manufacturer | Qualcomm |
| Model Number | PM8917 |
| Type | Power Management IC (PMIC) |
| Package Type | BGA (Ball Grid Array) |
| Typical Use Case | Main Power Supply Unit (PSU) for Mobile |
| Input Voltage Range | 3.4V to 4.4V (Standard Li-ion Battery range) |
| Primary Output Rails | BUCK converters for CPU, GPU, and LDOs for Peripherals |
| Supported Chipsets | Snapdragon 600, MSM8917 (Snapdragon 425) |
| Thermal Management | Integrated thermal shutdown and current limiting |
| Physical Dimensions | Small form-factor (typically ~5x5mm or less) |
Core Functions and Architecture
The PM8917 is more than just a voltage regulator; it manages the entire power lifecycle of the mobile device. PM 8917 Mobile Phone IC
1. Voltage Regulation (Buck & LDO)
The IC contains multiple Switching Regulators (Buck Converters). These are highly efficient and are used to provide high current to the processor cores. It also houses several Low-Dropout Regulators (LDOs) which provide “clean,” low-noise power to sensitive components like the camera sensor and audio circuits.
2. Battery & Charging Management
While some phones use a dedicated charging IC (like the SMB series), the PM8917 often handles the basic battery interface, including monitoring battery temperature via a thermistor and reporting the state of charge (fuel gauging) to the operating system.
3. Power Sequencing
Modern smartphones require components to turn on in a specific order. The PM8917 manages the “Power-Up Sequence,” ensuring the CPU’s I/O power is stable before the core voltage is applied, preventing internal logic errors or hardware damage.
4. System Supervision
It monitors the system for faults. If a short circuit is detected on a motherboard rail, the PM8917 will immediately cut power to protect the expensive Application Processor (AP).
Device Compatibility List
The PM8917 was a staple in the early-to-mid 2010s mobile architecture. Below are the common models utilizing this IC:
-
Samsung: Galaxy S4 (i9500, i9505, i9515), Galaxy S4 Mini (i9190, i9192, i9195), Galaxy S4 Active (i9295).
-
Samsung Phablets: Galaxy Mega 6.3 (i9200, i9205).
-
Other Manufacturers: Various tablets and early 4G LTE modules based on the Qualcomm Snapdragon 425/600 platforms.
Repair and Hardware Insights
In the repair industry, the PM8917 is a frequent target for “Dead Phone” troubleshooting.
-
Common Symptoms of Failure: The phone does not vibrate or turn on; there is a 0mA current draw when connected to a DC Power Supply; or there is a “short” detected on the primary VPH_PWR rail.
-
Replacement Difficulty: High. Since it is a BGA chip, replacement requires a hot air rework station, high-quality flux, and precision reballing stencils.
-
Handling: The IC is sensitive to Electrostatic Discharge (ESD) and moisture (MSL rating).
