PM 8926 Original Mobile Phone IC
Reliable Performance for Every Mobile Device

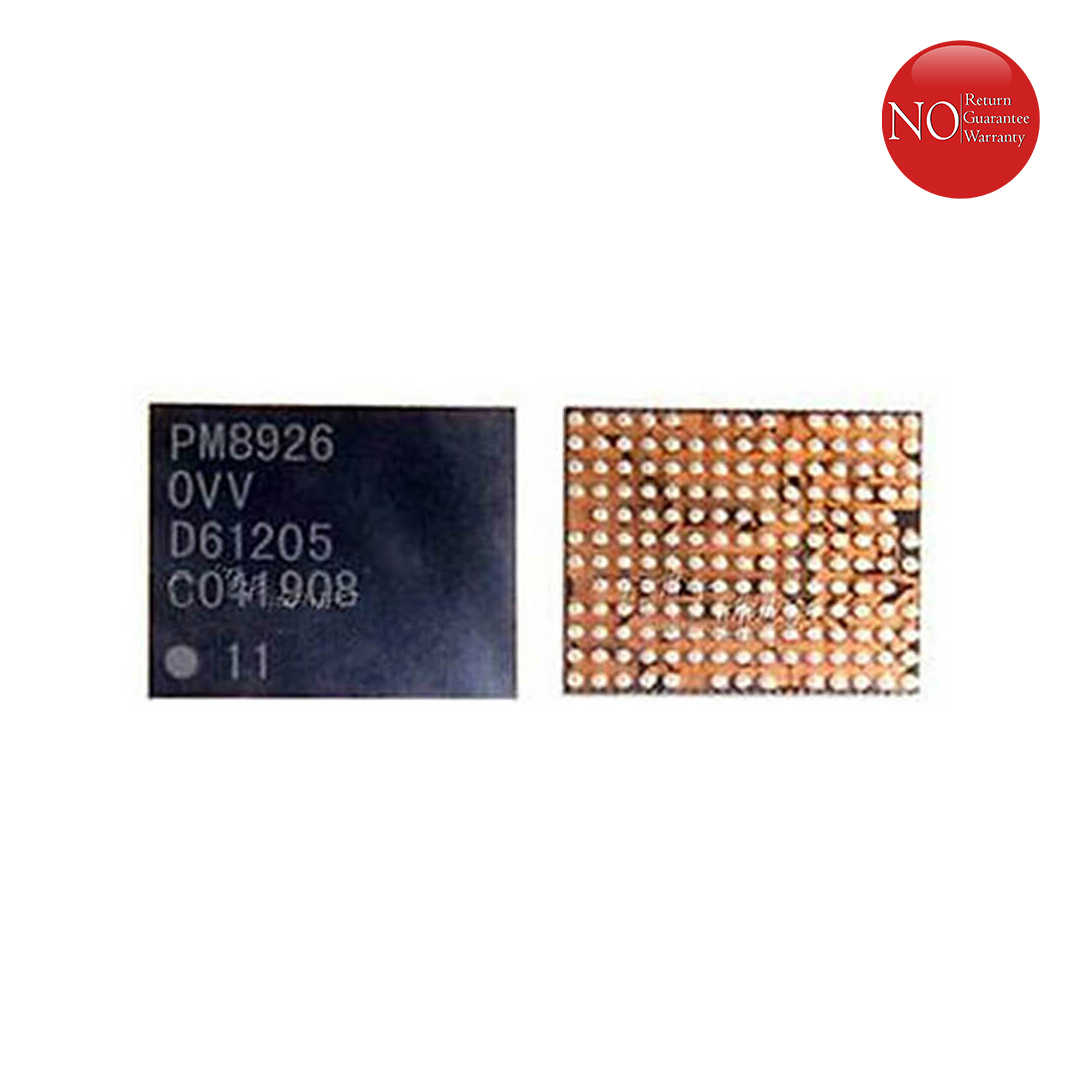

The PM 8926 Original Mobile Phone IC is designed to elevate your device’s performance with cutting-edge technology and precision engineering. Crafted for consistency and dependability, this IC ensures seamless operations for a wide range of mobile devices. PM 8926 Original Mobile Phone IC
Enhanced Connectivity and Power Management
This mobile IC stands out for its robust power management features, reducing energy consumption without compromising performance. Whether you’re looking to optimize power or ensure smooth connectivity, the PM 8926 is the ideal choice for superior functionality. PM 8926 Original Mobile Phone IC
Quality You Can Trust
Built with premium materials and developed using advanced technology, the PM 8926 Original Mobile Phone IC guarantees longevity and reliability. Perfect for technicians, manufacturers, or DIY enthusiasts seeking an original component for high-quality repairs or upgrades. PM 8926 Original Mobile Phone IC
The PM8926 is a highly integrated Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is a cornerstone component in the power architecture of mid-range smartphones and tablets, particularly those utilizing the Snapdragon 400 series chipsets. Its primary role is to convert the varying voltage from the Lithium-Ion battery into the precise, stable voltages required by the processor, memory, display, and radio frequency (RF) components. PM 8926 Original Mobile Phone IC
Below are the detailed specifications and technical parameters for the PM8926.
Technical Specifications: PM8926
| Feature | Specification Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Model Number | PM8926 / PM8926-0VV |
| Primary Function | Power Management IC (PMIC) |
| Package Type | BGA (Ball Grid Array) / WLNSP (Wafer Level Nano Scale Package) |
| Operating Temperature | $0^{\circ}\text{C}$ to $+100^{\circ}\text{C}$ (Industrial Grade) |
| Supply Voltage (Input) | $3.4\text{V}$ to $4.4\text{V}$ (Nominal Battery Range) |
| Dissipation Power | $0.5\text{W}$ (Typical under load) |
| Regulators | Integrated Buck (Step-down) and LDO (Low Dropout) regulators |
| Communication Bus | SPMI (System Power Management Interface) / $I^2C$ |
| Compatibility | Qualcomm Snapdragon 400/410 Series (e.g., MSM8926) |
| Applications | Samsung Galaxy Grand 2 (G7102), Xiaomi Redmi series, Motorola Moto G |
Functional Breakdown
The PM8926 is not just a voltage regulator; it is the “brain” of the device’s electrical system. It manages several critical subsystems simultaneously:
1. Voltage Regulation & Efficiency
The IC contains multiple Buck Converters for high-current rails (like the CPU and GPU cores) which require high efficiency to prevent overheating. It also houses numerous LDOs for noise-sensitive analog components, such as the camera sensors, audio DACs, and SIM card interfaces.
2. Battery & Charging Management
While some designs use a separate charging IC (like the SMB series), the PM8926 often assists in:
-
Fuel Gauging: Monitoring battery percentage and health. PM 8926 Original Mobile Phone IC
-
Thermal Monitoring: Sensing the battery temperature to prevent fires during rapid charging.
-
Power Path Management: Switching between USB power and battery power seamlessly.
3. Housekeeping Functions
-
Real-Time Clock (RTC): Maintains the device time even when the phone is powered off.
-
GPIOs: Provides general-purpose input/output pins for auxiliary hardware control.
-
Power-on Sequence: Controls the exact micro-second timing of when each part of the phone wakes up to prevent electrical surges.
Common Faults and Repair
In the mobile repair industry, the PM8926 is frequently replaced due to common failure symptoms:
-
Dead Boot: The device fails to power on or vibrate when the power button is pressed.
-
Short Circuit: The IC may develop an internal short, leading to rapid battery drain or the phone getting hot near the PMIC area.
-
Charging Issues: The phone shows a charging icon but the percentage does not increase.
Technical Note: Replacing this IC requires professional Micro-BGA soldering skills and a hot air rework station, as the “balls” underneath the chip are microscopic and require precise alignment.
