PM 8937 Mobile Phone IC
High-Performance Mobile Phone IC
The PM 8937 Mobile Phone IC is your go-to solution for seamless functionality and optimal performance in mobile devices. Designed to meet the needs of modern smartphones, this advanced integrated circuit ensures smooth operation while minimizing power consumption. PM 8937 Mobile Phone IC
Reliable and Efficient Design
Engineered to deliver consistent performance, the PM 8937 Mobile Phone IC offers unmatched reliability. Its energy-efficient design not only extends battery life but also guarantees stable operations, making it an ideal choice for cutting-edge mobile technologies. PM 8937 Mobile Phone IC
Applications and Compatibility
Perfectly suited for a wide range of mobile devices, the PM 8937 IC seamlessly integrates into various electronic architectures. Whether you’re developing a high-end smartphone or a cost-effective device, this IC enhances performance and supports advanced features effortlessly. PM 8937 Mobile Phone IC

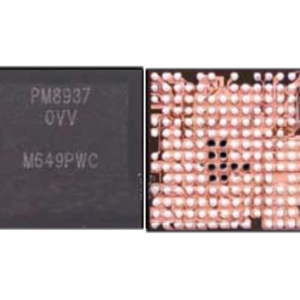

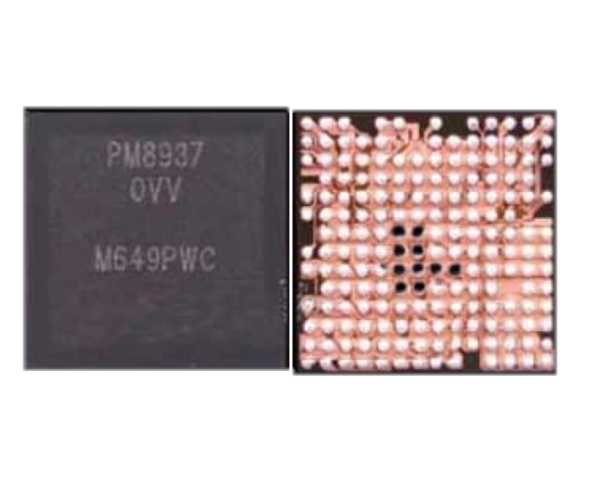

The PM8937 is a highly integrated Power Management Integrated Circuit (PMIC) manufactured by Qualcomm. It is a cornerstone component in many budget and mid-range smartphones, specifically those powered by Qualcomm Snapdragon 400 and 600 series chipsets (like the Snapdragon 430/435). Its primary role is to act as the “heart” of the device’s electrical system, converting raw battery voltage into the precise, stable levels required by the CPU, RAM, display, and camera. PM 8937 Mobile Phone IC
PM8937 Technical Specifications
The following table outlines the core technical parameters and functional blocks of the PM8937 IC:
| Feature | Specification / Detail |
| Manufacturer | Qualcomm Technologies, Inc. |
| Part Number | PM8937 (often seen as PM8937-0VV) |
| Package Type | WLCSP (Wafer Level Chip Scale Package) / BGA |
| Function | Multi-channel Power Management (PMIC) |
| Input Voltage Range | 2.5V to 4.8V (Typical Lithium-ion Battery Range) |
| Buck Converters | High-efficiency step-down regulators for CPU/GPU cores |
| LDO Regulators | Multiple Low-Dropout regulators for sensitive analog/RF circuits |
| GPIO Count | 8 Programmable General Purpose I/O pins |
| MPP Count | 14 Multi-Purpose Pins (Analog/Digital configurable) |
| Communication | SPMI (System Power Management Interface) |
| Charging Support | Integrated Battery Charging & Fuel Gauge interface |
| Audio | Integrated Basic Audio Codec support |
Key Functional Highlights
1. Power Distribution
The PM8937 contains several Buck Converters that provide high current at low voltages for the application processor ($V_{DD}$ Core) and memory ($V_{DD}$ Mem). For sensitive components like the camera sensor or Wi-Fi module, it uses LDOs (Low-Dropout Regulators) to ensure a clean, noise-free power supply. PM 8937 Mobile Phone IC
2. Battery & Charging Management
Unlike simpler ICs, the PM8937 often manages the USB charging path. It handles the transition between battery power and wall power, monitors battery temperature via thermistors, and communicates the battery percentage (fuel gauging) to the operating system. PM 8937 Mobile Phone IC
3. Boot Sequence Control
This IC is responsible for the “power-on reset” sequence. When you press the power button, the PM8937 is the first component to wake up. It checks for short circuits, stabilizes the $1.8\text{V}$ “always-on” rail, and then systematically enables other power rails in a specific order to prevent damage to the CPU.
Compatibility & Common Use Cases
The PM8937 is widely used across various brands due to its reliability in the Snapdragon ecosystem.
| Brand | Popular Compatible Models |
| Xiaomi | Redmi 3S, Redmi 4, Redmi 4A, Redmi 4X, Redmi 5A, Note 5A |
| Samsung | Galaxy J3 (2017), J3 Pro, J4, J6 (specific regions) |
| Nokia | Nokia 5, Nokia 6 (Original TA-1033) |
| Oppo/Vivo | Various Y-series and A-series budget models |
Common Symptoms of a Faulty PM8937
-
Dead Phone: The device does not respond to the power button or charging.
-
Half-Short/Leakage: The battery drains rapidly even when the phone is off.
-
Stuck at Logo: Failure to provide stable voltage to the EMMC/Flash memory during boot.
-
No Charging: The phone detects the cable but the percentage does not increase.
Note for Technicians: When replacing this IC, it is crucial to note the orientation (the “dot” or “mark” on the chip) and ensure a clean reballing process, as the BGA (Ball Grid Array) pins are extremely small and sensitive to heat.
