PM 8940 Original Mobile Phone IC
Unleash Unmatched Quality with PM 8940 IC
The PM 8940 Original Mobile Phone IC is designed to deliver exceptional performance and reliability, ensuring your devices function seamlessly. Engineered with precision, this essential mobile phone component is ideal for ensuring efficient power management and optimal device usability. PM 8940 Original Mobile Phone IC
Why Choose PM 8940 for Your Devices?
Crafted with advanced technology, the PM 8940 IC guarantees high durability and stability, providing a long-lasting solution for your mobile devices. Whether it’s for replacements or new builds, this IC offers outstanding efficiency to meet your technical needs. PM 8940 Original Mobile Phone IC
Perfect for Professionals and Enthusiasts
Whether you’re a technician, a gadget enthusiast, or a professional in need of superior electronic components, the PM 8940 Mobile Phone IC is the perfect choice. Its original design and rigorous testing make it a trustworthy component for all your mobile phone projects. PM 8940 Original Mobile Phone IC
The PM8940 is a highly integrated Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is primarily used in mid-range smartphones and tablets powered by the Snapdragon 400 and 600 series chipsets. Its role is critical: it manages the complex power requirements of the processor, memory, display, and peripherals, ensuring high efficiency and thermal stability. PM 8940 Original Mobile Phone IC
PM8940 Power Management IC: Comprehensive Technical Report
The PM8940 is a sophisticated Power Management Integrated Circuit (PMIC) designed by Qualcomm, specifically engineered to work alongside the Snapdragon 435, 450, and 625 series chipsets. It serves as the primary power distribution hub for mid-range mobile devices, ensuring that every sub-system—from the high-speed CPU cores to the sensitive analog radio frequency (RF) components—receives stable and filtered power.
1. Technical Specifications Table
| Component Feature | Detailed Specification |
| Manufacturer | Qualcomm Technologies, Inc. |
| Part Alias | PM8940 / PM8940-0VV |
| Silicon Process | Advanced Low-Power CMOS |
| Package Type | WLCSP (Wafer Level Chip Scale Package) |
| Input Voltage Range | 2.5V to 4.8V (Compatible with 1S Li-ion batteries) |
| Number of Buck Regulators | 6 Switch-mode Buck Converters |
| LDO Regulators | 22+ Low-Dropout Linear Regulators |
| Communication Bus | SPMI (System Power Management Interface) |
| Clock Frequency | 19.2 MHz (System Reference Clock) |
| Efficiency Rate | Up to 92% (on high-current rails) |
| Safety Certifications | RoHS Compliant, Lead-Free |
| Thermal Protection | Integrated Junction Temperature Monitor |
2. Architecture and Power Distribution
The PM8940 architecture is divided into several specialized blocks. Unlike older PMICs that wasted energy as heat, the PM8940 uses Pulse Width Modulation (PWM) in its buck converters to step down voltages with extreme precision. PM 8940 Original Mobile Phone IC
-
Buck Converters: These are responsible for high-current demands. For instance, the CPU core requires a very low voltage (around $0.8V$ to $1.1V$) but very high current. The PM8940 manages this through multi-phase buck stages to prevent overheating. PM 8940 Original Mobile Phone IC
-
LDO (Low Dropout) Rails: These provide “clean” power. Components like the Camera Sensor, Touchscreen Controller, and SIM Card interface cannot tolerate electrical noise. The PM8940’s LDOs filter out high-frequency interference to ensure these components function without glitches. PM 8940 Original Mobile Phone IC
3. Integrated Sub-systems
The IC is not just a voltage regulator; it houses several secondary systems that are vital for a modern smartphone:
-
Housekeeping & Monitoring: It contains an Analog-to-Digital Converter (ADC) that monitors battery voltage, system temperature, and die temperature. PM 8940 Original Mobile Phone IC
-
GPIO Management: It provides General Purpose Input/Output pins that the main CPU uses to trigger hardware interrupts or control simple peripherals. PM 8940 Original Mobile Phone IC
-
Vibrator Driver: It includes a dedicated driver circuit to control the haptic motor (vibrator) of the phone.
-
Real-Time Clock (RTC): It maintains the system time even when the phone is switched off, provided the battery is connected.

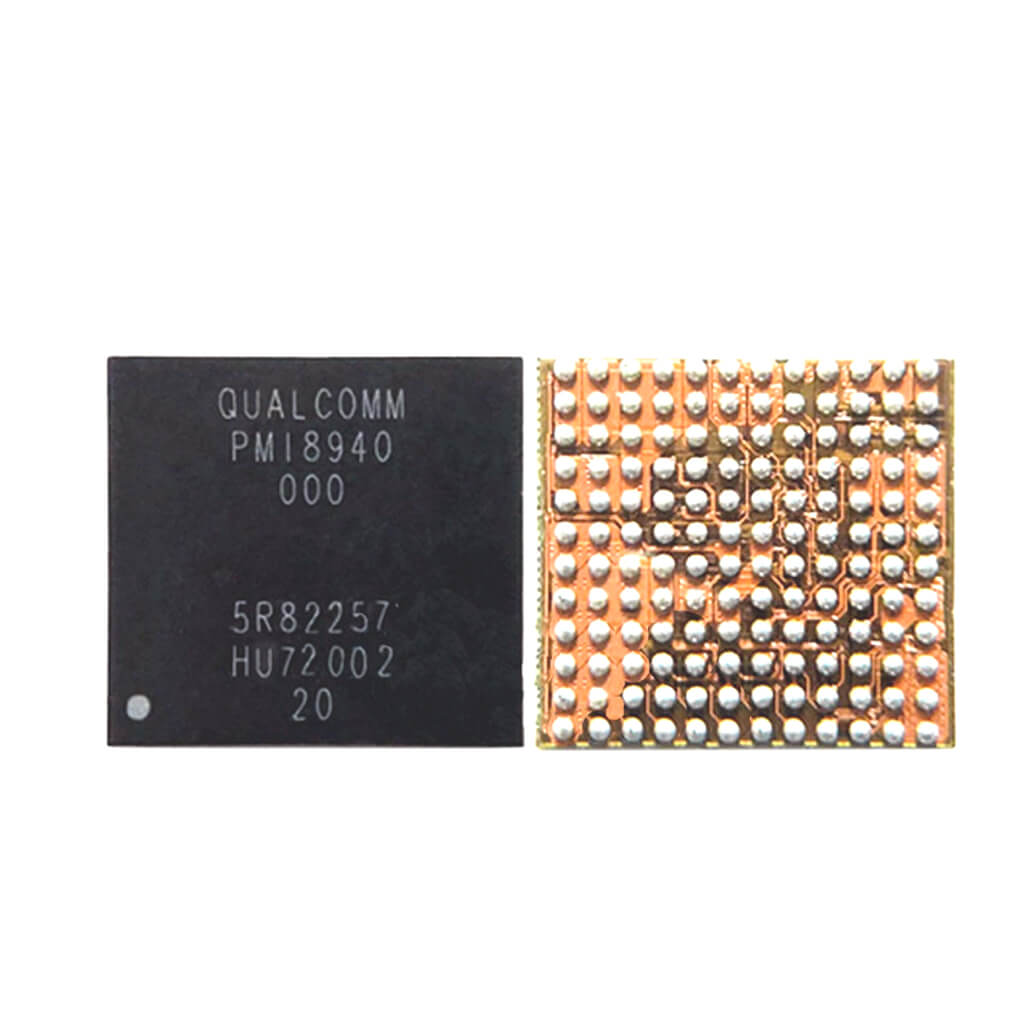

4. Comparison with PMI8940
In the hardware layout of devices like the Xiaomi Redmi 4X or Moto G6 Play, you will find two PMICs. It is crucial to distinguish their roles for troubleshooting:
| Feature | PM8940 (Primary) | PMI8940 (Secondary/Interface) |
| Primary Role | System Power & CPU Rails | Charging & Display Backlight |
| Charging Logic | No (Limited) | Yes (Quick Charge Support) |
| LED Driver | No | Yes (RGB & Flashlight) |
| Main CPU Power | Yes | No |
5. Troubleshooting and Repair Insights
For hardware engineers and technicians, the PM8940 is often a point of failure due to liquid damage or electrical surges.
-
Dead Phone Diagnosis: If the $1.8V$ Always-On (S4 rail) is missing, the PM8940 is likely faulty or not receiving the “Power On” signal.
-
Short Circuit Detection: Because the PM8940 is connected directly to the VPH_PWR (Voltage Phone Power) rail, a short in this IC will cause the entire motherboard to show a “Full Short” on a DC Power Supply.
-
Reballing Precision: The PM8940 uses a dense BGA pattern. During replacement, technicians must use a high-quality stencil and leaded solder balls ($183^\circ C$) to ensure the chip seats correctly without bridging adjacent pins.
6. Conclusion
The PM8940 remains a cornerstone of the 2017-2020 mobile era. Its ability to manage over 20 different power channels while maintaining a small footprint is a testament to Qualcomm’s engineering. Understanding its pinout and voltage output map is essential for anyone involved in advanced mobile motherboard repair or embedded systems design.
