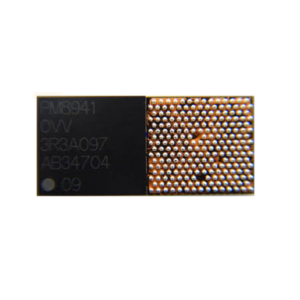

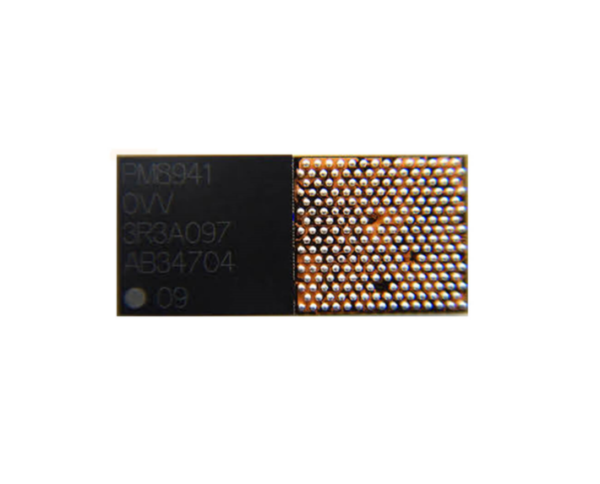

PM 8941 Mobile Phone IC
Efficient Power Management for Modern Devices
The PM 8941 Mobile Phone IC is a highly efficient power management integrated circuit, specially designed to optimize the performance of your mobile devices. This essential component ensures stable power delivery, resulting in remarkable device longevity and seamless operation. PM 8941 Mobile Phone IC
Compact Design, Maximum Performance
Engineered with innovation, the PM 8941 offers a compact design ideal for space-constrained mobile devices. Despite its small size, this IC packs a powerful punch, efficiently managing multiple power functions to improve overall device efficiency without compromising on size. PM 8941 Mobile Phone IC
Reliability You Can Trust
Built to high-quality standards, the PM 8941 Mobile Phone IC provides unparalleled reliability for various mobile applications. Whether it’s reducing power losses or enhancing battery life, this IC is a trusted solution for cutting-edge mobile tech. PM 8941 Mobile Phone IC
The Qualcomm PM8941 is a high-performance Power Management Integrated Circuit (PMIC) designed specifically to support the flagship Snapdragon 800 series (specifically the Snapdragon 800 and 801). During its peak, it was the gold standard for mobile power architecture, found in iconic devices like the Samsung Galaxy S5, LG G2, and Nexus 5. PM 8941 Mobile Phone IC
Compared to the PM8940 (which targets mid-range devices), the PM8941 is more robust, featuring more voltage rails and specialized support for high-end multimedia features like camera flash and high-intensity display backlighting. PM 8941 Mobile Phone IC
PM8941 Full Technical Specifications
| Feature | Detailed Specification |
| Manufacturer | Qualcomm Technologies, Inc. |
| Interface | SPMI (System Power Management Interface) |
| Package Type | 229-pin WLNSP (Wafer Level Nano Scale Package) |
| Dimensions | Approx. 5.21 mm x 6.13 mm |
| Buck Regulators | 7+ Dedicated High-Current Buck Converters |
| LDO Regulators | 20+ Low-Dropout Regulators (LDOs) |
| Input Voltage Range | 2.5V to 4.8V (Typical Li-ion range) |
| Charging Support | Integrated Battery Charger (Quick Charge 2.0 Ready) |
| Audio/LED Support | Integrated Speaker Amp & Backlight Driver |
| Safety Mechanisms | Thermal Shutdown, OVP, UVLO, Current Limiting |
| Operating Temp | -30°C to +85°C |
Key Functional Blocks
1. Advanced Voltage Regulation
The PM8941 manages the power for the “Big.LITTLE” architecture of high-end processors.
-
Buck Converters: These are used for power-hungry components like the CPU and GPU. They employ Dynamic Voltage Scaling (DVS), allowing the IC to adjust voltage in real-time based on the processor’s clock speed. PM 8941 Mobile Phone IC
-
LDOs: These provide extremely clean and stable power to components sensitive to electrical noise, such as the Image Signal Processor (ISP) for the camera and the high-fidelity audio hardware. PM 8941 Mobile Phone IC
2. Battery and Charging Management
Unlike many other PMICs that require an external charging chip, the PM8941 integrates a sophisticated battery management system. It supports Qualcomm Quick Charge 2.0, allowing for significantly faster charging times than previous generations. It also includes an accurate Fuel Gauge algorithm to monitor battery percentage and health. PM 8941 Mobile Phone IC
3. Integrated Peripherals
The “all-in-one” nature of the PM8941 helps reduce the motherboard size. It includes:
-
WLED Driver: Powers the display backlight with high efficiency.
-
Haptics Driver: Controls the vibration motor.
-
ADC (Analog-to-Digital Converter): Monitors system-wide temperatures and voltages.
Common Failure Symptoms (Technician’s Perspective)
Because the PM8941 handles high currents, it is prone to certain failure modes in aging devices:
-
Overheating: If the internal buck converters fail, the chip may become excessively hot even when the phone is off.
-
No Display/Backlight: Since it drives the WLEDs, a faulty PM8941 can cause a “black screen” even if the phone is otherwise functioning.
-
Boot Loop/Dead: Failure in the Power-On Sequence (the order in which voltage is supplied to the RAM and CPU) will prevent the phone from booting.
Troubleshooting Note
The PM8941 is a BGA (229-ball) chip, which makes it much more complex to replace than the PM8940. It requires a precise stencil for reballing and exact temperature control ($340^\circ\text{C}$ – $360^\circ\text{C}$) during soldering to avoid damaging the underlying PCB layers.
