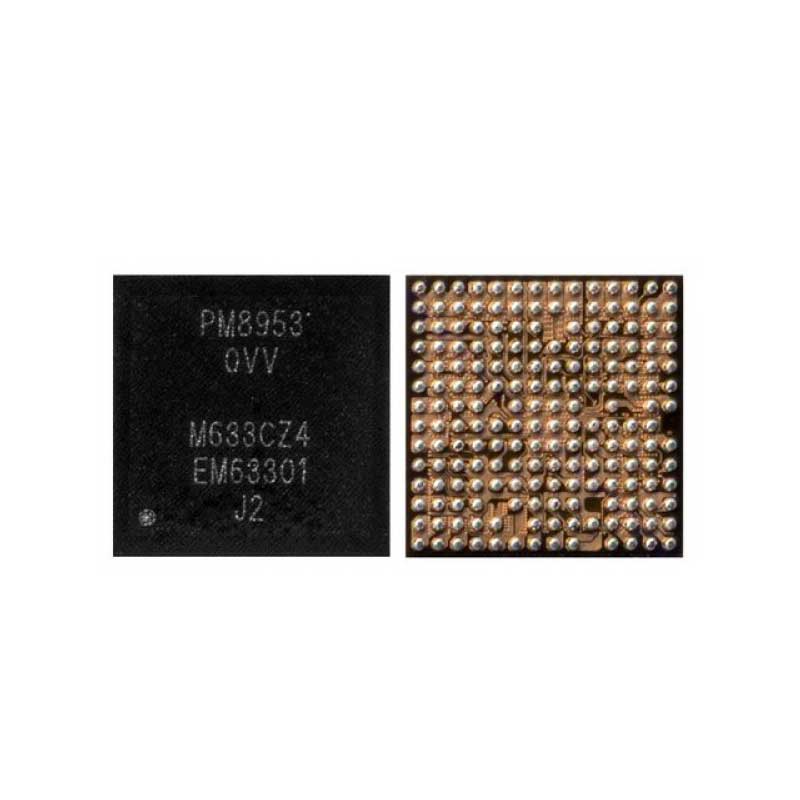

PM 8953 Mobile Phone IC
The Ideal Choice for Mobile Devices
The PM 8953 Mobile Phone IC is a cutting-edge solution, designed specifically to optimize the performance of modern mobile devices. Its advanced architecture ensures seamless power management, enhancing device efficiency and battery life. PM 8953 Mobile Phone IC
High-Performance and Reliability
Engineered for stability and precision, the PM 8953 IC delivers consistent performance across a variety of mobile platforms. Its compact form factor allows for easy integration into different hardware setups without compromising on quality or functionality. PM 8953 Mobile Phone IC
Exceptional Compatibility and Versatility
Whether you are a developer, technician, or manufacturer, the PM 8953 Mobile Phone IC is a versatile component that suits diverse applications. From extending operational longevity to enabling superior energy efficiency, this IC is the ultimate choice for professionals seeking reliable power management solutions. PM 8953 Mobile Phone IC
The PM8953 is a high-performance Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is specifically designed to work alongside the Snapdragon 625 (MSM8953) chipset, which was a legendary processor for mid-range smartphones like the Xiaomi Redmi Note 4, Mi Max 2, and Motorola Moto G5 Plus. PM 8953 Mobile Phone IC
As a primary PMIC, its role is to take the raw voltage from the battery and convert it into the precise, stable voltages required by various phone components like the CPU, RAM, camera, and display. PM 8953 Mobile Phone IC
PM8953 Technical Specifications
| Feature | Specification Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Package Type | 187-pin FOWNSP (Fan-Out Wafer Level Scale Package) |
| Buck Regulators (SMPS) | 7 Switching Mode Power Supplies (S1 to S7) |
| LDO Regulators | 23 Low-Dropout (LDO) Linear Regulators |
| Input Voltage Range | 2.5V to 4.8V (Standard Li-ion battery range) |
| Communication Interface | SPMI (System Power Management Interface) |
| Clock Support | 19.2 MHz XO (Crystal Oscillator) with buffers |
| Audio Integration | Built-in High-Performance Audio Codec (Class-D Amp) |
| I/O Configuration | Configurable GPIOs and MPPs (Multi-Purpose Pins) |
| Thermal Protection | Integrated thermal sensors and shutdown logic |
Core Functional Blocks
The PM8953 is more than just a voltage regulator; it is the “brain” of the phone’s power system. It is divided into five major functional blocks:
1. Output Power Management (SMPS & LDOs)
The IC contains 7 Buck Regulators (SMPS). These are highly efficient converters used for high-current demands, such as the CPU cores ($V_{DD}$ core) and Modem. PM 8953 Mobile Phone IC
Additionally, it features 23 LDOs. These provide “clean” power to sensitive analog components like the camera sensors, Wi-Fi chips, and SIM cards, where electrical noise must be kept to a minimum. PM 8953 Mobile Phone IC
2. Clock Management
The PM8953 manages the device’s “heartbeat.” It integrates a 19.2 MHz Crystal Oscillator (XO) and distributes buffered clock signals to the RF (Radio Frequency) and BB (Baseband) sections of the phone. This ensures all components are synchronized for data transmission. PM 8953 Mobile Phone IC
3. Audio Codec
Uniquely, the PM8953 integrates a digital-to-analog converter (DAC) and an analog-to-digital converter (ADC). It supports:
-
Class-D Speaker Amplifier: Provides loud, efficient audio for the phone’s main speaker.
-
Earpiece & Headset Drivers: Dedicated outputs for calls and 3.5mm jacks.
-
Microphone Bias: Power for primary and noise-canceling microphones.
4. General Housekeeping (HK)
This section monitors the “health” of the phone. It includes an Analog-to-Digital Converter (ADC) that measures battery temperature, PCB temperature, and voltage levels. It also handles the Power-On/Reset logic, determining when the phone should boot up or shut down based on the power button press.
5. IC Interfaces
The chip communicates with the main Snapdragon processor via the SPMI bus. This allows the CPU to dynamically request more or less voltage (Dynamic Voltage Scaling) depending on the workload, which is a key reason for the excellent battery life seen in Snapdragon 625 devices.
Common Use Cases
You will typically find the PM8953 paired with the PMI8952. While the PM8953 handles the core system power and audio, the PMI8952 usually handles battery charging (Quick Charge support) and the display backlight driver.
