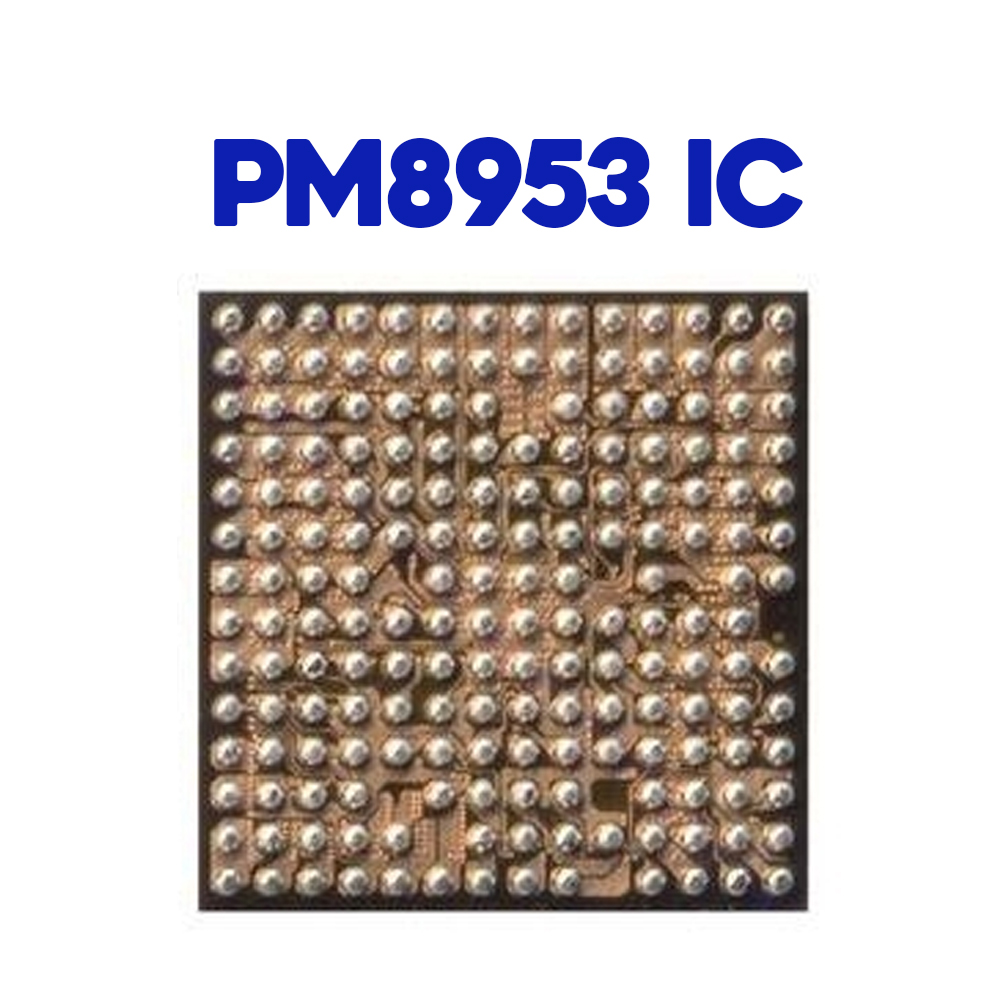

PM 8953 Original Mobile Phone IC
High-Quality PM 8953 Mobile Phone IC
Looking for a reliable solution to enhance your mobile phone’s performance? The PM 8953 Original Mobile Phone IC is engineered to meet your device’s demands. Crafted with precision, it ensures excellent compatibility and performance, making it an ideal choice for repair or upgrade projects. PM 8953 Original Mobile Phone IC
Exceptional Compatibility
Designed specifically for mobile phones, this IC seamlessly integrates into your device’s circuitry, maintaining functionality and stability. Say goodbye to operational hiccups with this high-quality, dependable component. PM 8953 Original Mobile Phone IC
Durability and Efficiency
Built to deliver long-lasting performance, the PM 8953 IC offers exceptional efficiency in managing power and communications, ensuring smooth device operation. A cost-effective solution for repair professionals and tech enthusiasts alike. PM 8953 Original Mobile Phone IC
The PM8953 is a specialized Power Management Integrated Circuit (PMIC) designed by Qualcomm. It is the primary companion chip for the Snapdragon 625 (MSM8953) chipset, though it is also found in devices using other mid-range processors like the Snapdragon 450 and 630. PM 8953 Original Mobile Phone IC
Its role is critical: it takes the raw voltage from the battery and converts it into the precise, stable voltages required by the CPU, GPU, RAM, and camera sensors. PM 8953 Original Mobile Phone IC
PM8953 Key Specifications
The following table highlights the technical parameters and functional capabilities of the original PM8953 IC.
| Feature | Specification / Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Part Number | PM8953 (often marked as PM8953-0VV) |
| Package Type | FOWNSP (Fan-Out Wafer Level Nano Scale Package) |
| Pin Count | 187-pin BGA (Ball Grid Array) |
| Input Voltage | 3.7V – 4.4V (Standard Lithium-Ion Battery Range) |
| Output Rails | Multi-channel (Buck Converters + LDO Regulators) |
| Core Voltage (Vcore) | Dynamically adjusted (typically 0.8V to 1.2V) |
| Primary Function | Power sequencing, DC-DC conversion, and LDO regulation |
| Interface | SPMI (System Power Management Interface) |
| Key Components | Buck Converters (S1–S7), LDOs (L1–L22), Charging Logic |
Detailed Technical Breakdown
1. Power Distribution (Buck vs. LDO)
The PM8953 utilizes two main methods to manage electricity:
-
Switching Regulators (Buck Converters): Labeled as S1 through S7. These are highly efficient and used for high-current demands, such as powering the octa-core Cortex-A53 CPU and the Adreno 506 GPU.
-
Low Dropout Regulators (LDOs): Labeled as L1 through L22. These provide “cleaner” power with less noise, making them ideal for sensitive components like the Image Signal Processor (ISP), Wi-Fi/Bluetooth modules, and the 24MP camera sensors. PM 8953 Original Mobile Phone IC
2. Charging and Battery Management
While the PMI8952 (the secondary PMIC) often handles the bulk of fast charging (Quick Charge 3.0), the PM8953 acts as the central coordinator. It monitors thermal sensors across the PCB to prevent overheating during high-performance tasks or charging cycles. It also manages the “Power-On Sequence,” ensuring that the RAM receives power before the CPU attempts to boot. PM 8953 Original Mobile Phone IC
3. Device Compatibility
Because it was a staple of the highly successful Snapdragon 625 era, this IC is found in dozens of legendary mid-range smartphones. Common compatible models include:
-
Xiaomi: Redmi Note 4/4X, Redmi 5 Plus, Mi A1, Redmi 6 Pro, Mi Max 2.
-
Samsung: Galaxy A207F, J810G, A605F, C7000.
-
Motorola: Moto G5S Plus, Moto Z Play.
-
Others: Oppo A5/A7, Realme C1, Vivo V9.
Common Failure Symptoms
When the PM8953 IC fails or becomes “leaky” (internal short), the phone typically exhibits the following issues:
-
Dead Boot: The phone shows no sign of life and consumes 0mA or a very low, stuck current (e.g., 20mA–50mA) when connected to a DC power supply.
-
Short Circuit: The battery drains rapidly even when the phone is off.
-
No Graphics/Display: If the specific LDO or Buck rail responsible for the display driver fails.
-
Overheating: The area near the CPU/PMIC becomes hot immediately after inserting the battery.
Note for Technicians: Replacing this IC requires professional SMD soldering tools. Since it is a BGA chip, it must be “reballed” with leaded or lead-free solder balls (0.3mm or 0.35mm) before installation.
