PM 8956 Original Mobile Phone IC
Precision Engineered for Seamless Operation

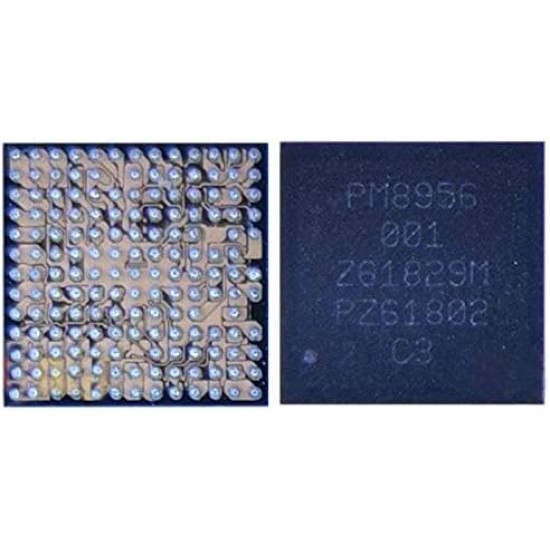

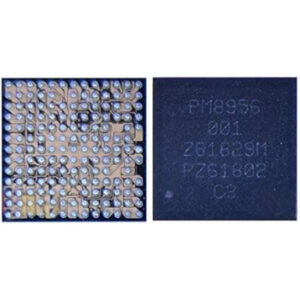

The PM 8956 Original Mobile Phone IC is meticulously crafted to ensure optimal performance and durability in your devices. Designed for reliability, it offers seamless integration into your mobile phone’s circuitry. PM 8956 Original Mobile Phone IC
Boost Efficiency with Advanced Technology
Engineered with cutting-edge technology, the PM 8956 IC enhances your phone’s energy efficiency and supports smoother functionality. It ensures consistent and stable performance, making it a must-have for superior device maintenance.
Durable and Compatible
Compatible with a wide range of mobile devices, this IC stands out for its durability and long-lasting functionality. Whether you’re upgrading or replacing, the PM 8956 is an ideal choice to keep your phone running at its best.
The PM8956 is a high-performance Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is designed primarily to support the power distribution and regulation needs of mid-range and high-end smartphones, most notably those powered by the Snapdragon 650 and 652 chipsets.
As a central hub for power, the PM8956 manages everything from battery charging to the precise voltages required by the processor, memory, and display.
Key Specifications of PM8956
The following table outlines the technical characteristics and functional domains of the PM8956 IC.
| Feature | Specification Details |
| Manufacturer | Qualcomm |
| Type | System-on-Chip (SoC) Power Management IC (PMIC) |
| Application | Mobile Phones (Android), Tablets |
| Compatible Processor | Qualcomm Snapdragon 650 (MSM8956), Snapdragon 652 (MSM8976) |
| Package Type | QFN / Wafer-level Nanoscale Package (WSP) |
| Voltage Input Range | Typically 3.4V to 4.4V (Standard Li-ion battery range) |
| Regulators (SMPS) | Multiple Buck Converters for high-efficiency CPU/GPU power |
| LDO Regulators | Low-Dropout regulators for sensitive analog/RF components |
| Charging Support | Integrated Battery Charging (often supports Qualcomm Quick Charge 2.0/3.0) |
| Communication Bus | SPMI (System Power Management Interface) |
| Housekeeping | Integrated Fuel Gauge, ADC for thermal and voltage monitoring |
Functional Overview
The PM8956 is more than just a voltage regulator; it is a complex system that ensures the longevity and stability of the mobile device. Its primary functions include:
1. Power Distribution & Efficiency
The IC utilizes Switch-Mode Power Supplies (SMPS) to step down battery voltage to the low levels required by the CPU cores (often below 1V) with high efficiency. This minimizes heat generation. For components sensitive to electrical noise, such as the camera sensor and audio DAC, it uses LDO (Low-Dropout) regulators to provide “clean” power. PM 8956 Original Mobile Phone IC
2. Battery & Charging Management
The PM8956 acts as the gatekeeper for the battery. It manages the Constant Current/Constant Voltage (CC/CV) charging profile and includes safety features to prevent overcharging or overheating during fast-charging cycles. PM 8956 Original Mobile Phone IC
3. General Housekeeping
The IC features a dedicated Analog-to-Digital Converter (ADC) that monitors various “thermistors” (temperature sensors) placed around the phone’s motherboard. If the device gets too hot, the PM8956 can signal the processor to throttle performance or even shut down the system to prevent hardware damage. PM 8956 Original Mobile Phone IC
Common Compatible Devices
Because this IC is paired with specific Qualcomm chipsets, it is a standard replacement part for several popular legacy devices:
-
Xiaomi: Redmi Note 3 Pro, Mi Max (Original)
-
Samsung: Galaxy A9 (2016), Galaxy C9 Pro (A910F/C9000)
-
Vivo/Oppo: Various mid-range models from the 2016-2017 era.
Repair & Installation Note
The PM8956 is a BGA (Ball Grid Array) chip, meaning it is soldered using tiny lead-free solder balls underneath the chip. Replacing this component requires:
-
Professional Equipment: A hot air rework station and a digital microscope.
-
Precision: “Reballing” or using a pre-balled “Original” chip is necessary to ensure all connections to the motherboard are secure. PM 8956 Original Mobile Phone IC
-
Sensitivity: This IC is highly sensitive to Electrostatic Discharge (ESD) and moisture; it should be baked at low temperatures ($100^\circ\text{C}$ to $110^\circ\text{C}$) if exposed to air for long periods before soldering.
