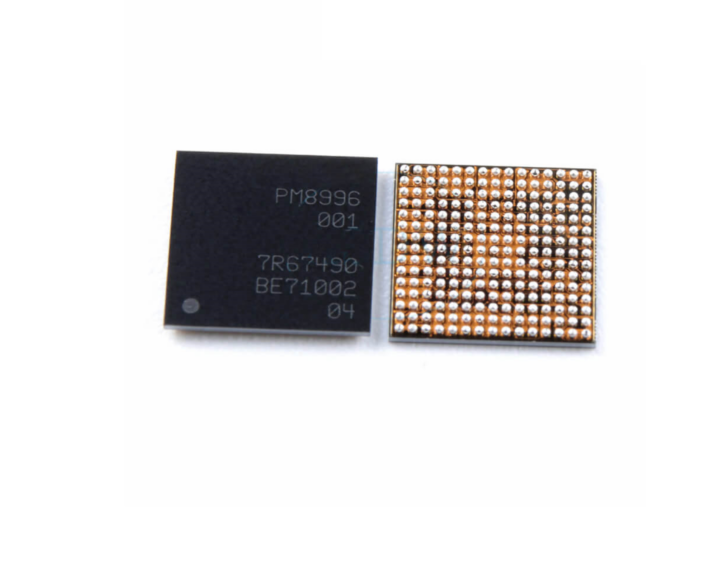

PM 8996 Mobile Phone IC
Streamlined Mobile Power Management
The PM 8996 Mobile Phone IC is an innovative power management integrated circuit designed to optimize performance in modern mobile devices. Built with precision and advanced technology, this IC ensures reliable and efficient power distribution, enhancing device functionality and user experience. Whether you’re developing a flagship smartphone, tablet, or similar mobile device, PM 8996 is a critical component that delivers unparalleled performance. PM 8996 Mobile Phone IC
Exceptional Functionality and Versatility
What sets the PM 8996 IC apart is its versatility and ability to manage diverse power requirements across different device platforms. Its compact and highly efficient design enables seamless power flow while minimizing energy consumption. This makes it ideal for managing a variety of critical mobile functions, including battery charging, voltage regulation, and thermal management. Engineers and manufacturers consistently choose this IC for its reliability and integration simplicity.
Boost Your Device’s Efficiency
The PM 8996 IC is specifically engineered to meet the high demands of today’s power-hungry mobile devices. Its intelligent architecture supports various voltages, ensuring compatibility and stability while extending device battery life. Furthermore, the IC includes safety features such as over-voltage and thermal protection, providing peace of mind to end-users and device manufacturers. For those who seek to push the boundaries of mobile technology, PM 8996 is an indispensable power management solution.
The PM8996 is a highly integrated Power Management Integrated Circuit (PMIC) developed by Qualcomm.1 It is a cornerstone component in the power architecture of flagship mobile devices, most notably those powered by the Snapdragon 820 and 821 chipsets.2
As the “heart” of the phone’s electrical system, the PM8996 is responsible for converting the raw voltage from the Lithium-ion battery into the precise, stable voltages required by the various high-performance sub-systems of a smartphone.3
Technical Specifications & Features
The PM8996 is designed to handle the complex power demands of high-end processors, high-resolution displays, and high-speed memory.4
| Feature | Details |
| Input Voltage | Typically 3.0V to 5.5V (Standard Li-ion battery range) |
| Output Channels | Multi-channel architecture (Buck converters and LDOs) |
| Peak Efficiency | Up to 95% under optimal load |
| Communication | Control via I2C/SPMI interface for real-time monitoring |
| Packaging | Compact WLNSP (Wafer Level Nano Scale Package) or QFN |
| Operating Temp | -40°C to +125°C |
Core Functions
The PM8996 manages four critical areas of mobile operation:
1. Voltage Regulation and Distribution
A modern smartphone requires multiple voltage levels (e.g., $1.1V$ for the CPU, $1.8V$ for memory, and $3.3V$ for peripherals). The PM8996 uses Buck Converters for high-efficiency high-current tasks and Low-Dropout Regulators (LDOs) for noise-sensitive components like the camera and audio circuits. PM 8996 Mobile Phone IC
2. Dynamic Voltage Scaling (DVS)5
To save battery, the PM8996 communicates with the Snapdragon CPU to adjust the voltage in real-time.6 If you are just reading a text, it lowers the voltage to save energy; if you start a 3D game, it ramps up the voltage to support higher clock speeds. PM 8996 Mobile Phone IC`
3. Power Sequencing
Components in a smartphone cannot all turn on at once; they must follow a specific “handshake” order to prevent short circuits or boot failures.7 The PM8996 coordinates this startup and shutdown sequence with millisecond precision. PM 8996 Mobile Phone IC
4. Thermal & Safety Management
The IC includes built-in sensors for:
-
Over-Voltage Protection (OVP): Prevents spikes from damaging the motherboard.PM 8996 Mobile Phone IC
-
Over-Current Protection (OCP): Shuts down if a component draws too much power (indicating a short).
-
Thermal Shutdown: Monitors its own temperature and the surrounding board to prevent overheating.9
Common Applications & Repair
The PM8996 is a “Big Power IC,” meaning it is the primary power chip.10 It is commonly found in:
-
Samsung Galaxy S7 / S7 Edge / Note 711
-
Xiaomi Mi 5 / Mi 612
-
LG G5 / V2013
-
Google Pixel / Pixel XL (1st Gen)
Typical Failure Symptoms:
If this IC fails, the phone will typically be “Dead” (no power), get stuck in a boot loop, or have severe “No Charging” issues that cannot be fixed by a new battery or charging port. Because it is a BGA (Ball Grid Array) chip, replacement requires professional microsoldering and “reballing” skills.
