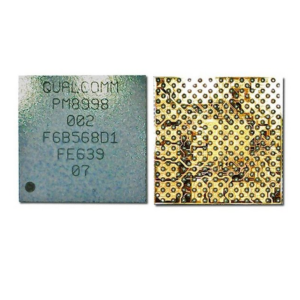

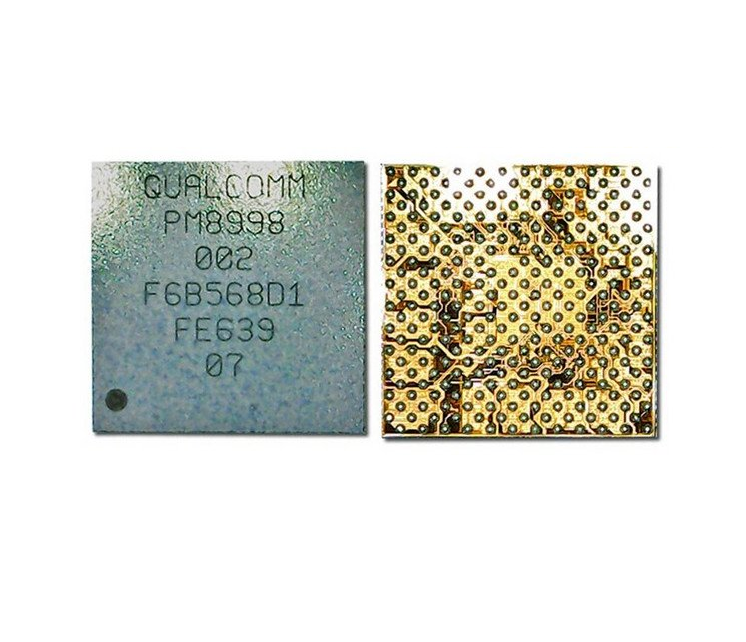

PM 8998 Mobile Phone IC
Efficient and Reliable Mobile IC Solution
The PM 8998 Mobile Phone IC is designed with performance, efficiency, and durability in mind to meet the dynamic needs of modern mobile devices. Whether you’re developing the latest smartphones or upgrading current models, this versatile integrated circuit is the ideal choice to enhance your device’s functionality while ensuring optimum energy consumption. PM 8998 Mobile Phone IC
Optimized Power Management for Next-level Performance
One of the standout features of the PM 8998 Mobile Phone IC is its advanced power management capabilities. Built to handle diverse power loads efficiently, this IC ensures that your devices operate smoothly without compromising battery life. Its intelligent design contributes to seamless multitasking and minimizes heat generation, making it perfect for both everyday and high-performance mobile applications.
Compatibility and Cutting-edge Technology
The PM 8998 IC is compatible with a wide array of mobile platforms, facilitating easy integration and ensuring peak performance across devices. Equipped with the latest technology, it’s tailored to adapt to your device’s needs, including advanced signal processing and efficient charging mechanisms. With this IC, you can provide your users with an unparalleled mobile experience, combining efficiency, speed, and dependability.
Why Choose the PM 8998 Mobile Phone IC?
Whether for manufacturers, developers, or enthusiasts, the PM 8998 Mobile Phone IC stands out for its reliability and versatility. By incorporating this component into your devices, you can ensure enhanced performance, reduced energy wastage, and prolonged battery life. Invest in the PM 8998 today to take your devices to the next level and stay ahead in the competitive mobile industry. PM 8998 Mobile Phone IC
The PM8998 is a critical Power Management Integrated Circuit (PMIC) designed by Qualcomm, primarily paired with the Snapdragon 835 processor. It is responsible for distributing and regulating power to various components like the CPU, GPU, memory, and camera sensors to ensure high energy efficiency and thermal stability. PM 8998 Mobile Phone IC
Below are the detailed specifications and technical features of the PM8998 IC. PM 8998 Mobile Phone IC
PM8998 IC Technical Specifications
| Feature | Specification |
| Manufacturer | Qualcomm |
| Type | Power Management IC (PMIC) |
| Companion SoC | Qualcomm Snapdragon 835 (MSM8998) |
| Pin Count | 288 Pins |
| Package Type | WLNSP (Wafer Level Nano Scale Package) / BGA |
| Input Voltage Range | $2.7\text{V}$ to $4.8\text{V}$ (Standard Li-ion battery range) |
| Regulators | Multiple Buck Converters (SMPS) & LDOs |
| Charging Support | Quick Charge 4.0 (When used with SMB1381) |
| Interfaces | SPMI (System Power Management Interface), $I^2C$ |
| Common Device Use | Samsung Galaxy S8/S8+, Note 8, Xiaomi Mi 6, Google Pixel 2 XL |
Key Functions & Features
The PM8998 acts as the “heart” of the phone’s electrical system. Its primary responsibilities include:
-
Voltage Regulation: It converts the raw battery voltage into precise levels (e.g., $0.8\text{V}$, $1.2\text{V}$, $1.8\text{V}$, $3.3\text{V}$) required by different silicon components.
-
Power Sequencing: It ensures that components turn on and off in the correct order to prevent hardware damage or system crashes during boot-up.
-
Thermal Management: Built-in sensors monitor the temperature of the IC and the surrounding board, throttling power if the device exceeds safe thermal limits.
-
Housekeeping: Manages “always-on” functions like the real-time clock (RTC) and physical button presses (Power/Volume).
Typical Pairing in Mobile Hardware
In high-end devices like the Samsung Galaxy S8, the PM8998 rarely works alone. It is usually part of a “Power Management Trio”:
-
PM8998: Main PMIC for the application processor and general system rails.
-
PMI8998: Secondary PMIC specifically for battery charging and display/backlight power.
-
WCD9341: Dedicated Audio Codec IC.
Note for Technicians: The PM8998 is a BGA (Ball Grid Array) chip. If you are replacing this part, it requires professional micro-soldering tools and a high-quality stencil for “reballing” the 288 pins.
