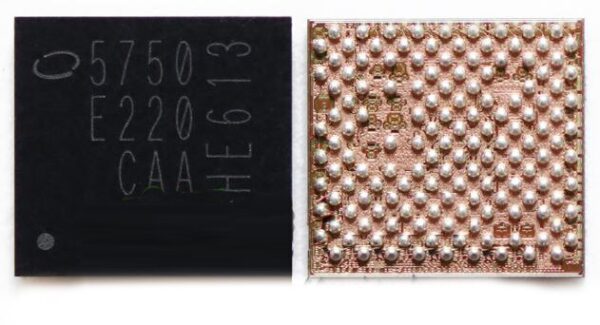

PMB 5750 Mobile Phone IC
Enhanced Performance with PMB 5750 Mobile Phone IC
The PMB 5750 Mobile Phone IC is an advanced integrated circuit designed to optimize mobile device functionality, ensuring seamless performance, reduced power consumption, and increased reliability. Its cutting-edge technology makes it an invaluable addition to modern devices, delivering a superior user experience. Crafted to meet industry standards, the PMB 5750 promises unparalleled efficiency for next-generation mobile systems.
Designed for Versatility and Compatibility
This integrated circuit stands out for its versatility, supporting a wide range of applications across mobile ecosystems. Whether your device requires improved signal processing, enhanced connectivity, or efficient power management, the PMB 5750 IC is tailored to meet these needs. Its compact design fits effortlessly into varying hardware structures, making it an ideal choice for manufacturers and developers globally. Furthermore, this IC is engineered for compatibility with numerous mobile technologies, further solidifying its role as a dynamic solution in today’s fast-paced digital market.
Why Choose the PMB 5750 for Your Mobile Device?
Beyond its technical sophistication, the PMB 5750 Mobile Phone IC offers tangible advantages that set it apart from its counterparts. By integrating energy-efficient components, it prevents unnecessary battery drainage, allowing devices to operate longer on a single charge. Its streamlined architecture minimizes internal device heat, enhancing both system longevity and user safety. Additionally, the PMB 5750 provides robust support for signal processing, ensuring consistently clear and uninterrupted mobile communication.
The PMB 5750 Mobile Phone IC brings together innovation, reliability, and flexibility, embodying a product designed for the challenges of modern mobile technology. Empower your devices and elevate functionality with this premium integrated circuit solution.
The PMB 5750 is a highly integrated, high-performance radio frequency (RF) transceiver Integrated Circuit (IC), primarily known as the SMARTi PM (Power Management integrated). Developed by Infineon Technologies, it was a cornerstone component in the mid-2000s for 2.5G and 3G mobile devices, most notably becoming a critical part of the original Apple iPhone (2G) architecture.
Core Functionality and Architecture
The PMB 5750 is designed to handle the complex translation between high-frequency radio waves and the digital data processed by the phone’s baseband processor. It serves as the “bridge” in the communication chain.
1. Multi-Band Support
The IC is a quad-band transceiver, meaning it can operate across the four major GSM frequencies used globally:
-
850 MHz / 900 MHz (Lower bands for better range/penetration)
-
1800 MHz / 1900 MHz (Higher bands for higher capacity)
By integrating all four bands into a single CMOS chip, the PMB 5750 allowed manufacturers to design “world phones” that could roam between different international networks without needing separate hardware for each region.
2. Direct Conversion (Zero-IF) Technology
One of the standout technical features of the PMB 5750 is its use of Direct Conversion (also called Zero-IF) technology. Unlike older superheterodyne receivers that required an Intermediate Frequency (IF) stage and bulky external SAW (Surface Acoustic Wave) filters, the PMB 5750 converts the RF signal directly down to baseband frequencies.
Benefits of Zero-IF include:
-
Reduced Bill of Materials (BOM): Fewer external components needed.
-
Space Efficiency: Essential for the slim profiles of modern smartphones.
-
Power Savings: Less circuitry active during the conversion process.
Integration and Interfaces
The PMB 5750 was designed to work seamlessly with Infineon’s baseband processors (like the PMB 8876 S-Gold 2). It features:
-
Fully Integrated VCOs: The Voltage Controlled Oscillators and loop filters are on-chip, further reducing the need for external tuning components.
-
Standard Digital Interface: It communicates with the baseband via a high-speed interface that handles the I/Q (In-phase and Quadrature) signals necessary for digital modulation.
-
GPRS/EDGE Compatibility: While primarily a GSM chip, it supports EDGE (Enhanced Data rates for GSM Evolution), which was the “2.75G” technology that first brought usable mobile internet to the masses.
Technical Specifications at a Glance
| Feature | Description |
| Technology | Standard CMOS Process |
| Bands | GSM 850, 900, 1800, 1900 |
| Modulation | GMSK (GSM) and 8-PSK (EDGE) |
| Package | VGFB-81 (Very Fine Pitch Ball Grid Array) |
| Supply Voltage | Approx. 2.7V to 3.0V |
