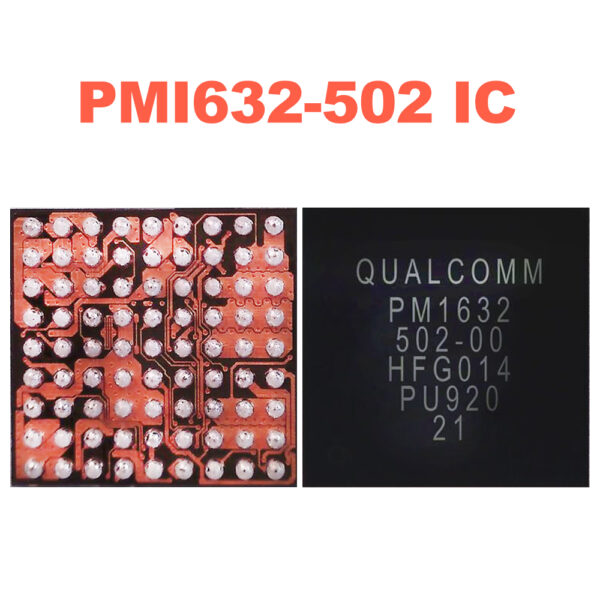

PMI 632-502 Mobile Phone IC
Unmatched Efficiency for Your Mobile Device
The PMI 632-502 Mobile Phone IC is designed to revolutionize the way your smartphone functions. This innovative integrated circuit ensures optimal power management and performance enhancement, making it the ideal choice for mobile device manufacturers and enthusiasts seeking reliable and efficient solutions. With cutting-edge technology, the PMI 632-502 IC delivers superior energy efficiency, reducing battery consumption while maximizing the operational lifespan of your device.
Key Features of the PMI 632-502 Mobile Phone IC
Engineered for top-tier functionality, the PMI 632-502 IC boasts several key features:
- High Power Efficiency: Minimizes energy loss, ensuring your device stays powered longer even under demanding usage.
- Compact Design: Smaller form factor allows seamless integration into modern smartphones without added bulk.
- Advanced Thermal Management: Keeps the device from overheating during long-term usage or intensive applications.
Its versatile nature makes the PMI 632-502 compatible with a wide range of device architectures, offering flexibility no matter your technological needs.
Why Choose PMI 632-502 for Your Mobile Needs?
Whether you’re assembling mobile devices or upgrading existing ones, investing in the PMI 632-502 IC is a smart decision. By prioritizing performance, stability, and energy efficiency, this product enhances the overall user experience. Engineers rely on this IC to meet the increasing demands of modern mobile technologies.
Experience the combination of durability, reliability, and peak technological innovation by incorporating the PMI 632-502 Mobile Phone IC into your device. It’s not just a circuit; it’s the foundation of a seamless, long-lasting mobile phone experience.
The PMI 632-502 is a highly integrated Power Management Integrated Circuit (PMIC) developed by Qualcomm. It serves as a secondary or “companion” power management chip, often paired with a primary PMIC (like the PM632) to manage specific high-drain or specialized functions in mid-tier and budget smartphones.
Core Role and Functions
The “PMI” prefix indicates that this chip typically handles Charging and Interface power tasks. While the main PMIC manages the CPU and system-on-chip (SoC) voltages, the PMI 632-502 focuses on:
-
Battery Charging Management: It acts as a switching charger, controlling the flow of current from the USB port to the battery. It supports standard fast charging protocols and manages the battery’s thermal safety.
-
Display Power (LCD/OLED): It contains specialized regulators (VSP/VSN) to provide the necessary positive and negative voltages for the display panel and the backlight driver.
-
USB Interface: It manages the USB Type-C CC (Configuration Channel) lines for cable detection and orientation, as well as the 5V VBUS power rail.
-
Flash and Torch LED: It integrates the drivers for the camera flash and the flashlight, providing high-current pulses when needed.
-
Haptics and RGB: It often contains the drivers for the vibration motor (Haptic feedback) and notification RGB LEDs.
Key Specifications & Architecture
The PMI 632-502 is usually found in devices powered by Qualcomm Snapdragon 600-series chipsets (e.g., Snapdragon 632, 636, 660) and 400-series (e.g., SD439).
| Feature | Description |
| Package | BGA (Ball Grid Array) with approximately 72 to 81 pins. |
| Input Voltage | Typically 3.7V to 5.0V (Battery or USB VBUS). |
| Charging | Supports Qualcomm Quick Charge (QC) standards and 2:1 charge pump features in some variants. |
| Protection | Over-voltage (OVP), Over-current (OCP), and Thermal Shutdown. |
| Communication | Controlled by the primary SoC via the SPMI (System Power Management Interface) bus. |
Common Applications
This specific variant (Revision 502) is widely used in popular Android devices, including:
-
Xiaomi: Redmi 7, Redmi 7A, Redmi 8, and Redmi Note 8 series.
-
Vivo/Oppo: Various Y-series and A-series mid-range models.
-
Samsung: Certain M-series and A-series budget variants using Qualcomm chips.
Troubleshooting & Common Faults
In the mobile repair industry, the PMI 632-502 is a frequent target for diagnosis when a phone exhibits the following symptoms:
-
Charging Issues: The phone shows a “charging” icon but the percentage doesn’t increase, or it doesn’t detect the charger at all.
-
No Display/Backlight: Since this IC manages display power, a failure here can result in a “black screen” even if the phone is otherwise vibrating or making sounds.
-
Short Circuits: If the phone is completely “dead” and drawing high current on a DC power supply, a shorted capacitor around the PMI 632 is a common culprit.
-
Fake Charging: The device may show it’s charging but actually loses battery percentage because the IC cannot push current to the battery.
