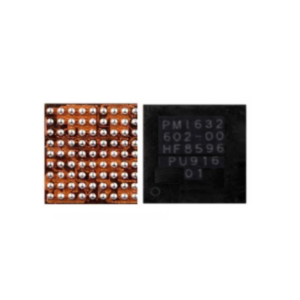

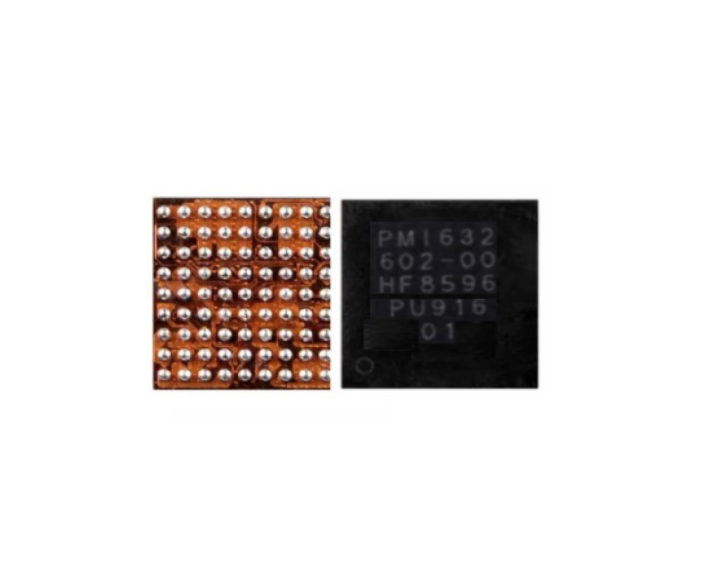

PMI 632-602 Original Mobile Phone IC
Unlock Superior Performance with the PMI 632-602 Mobile Phone IC
Are you searching for a replacement or upgrade to your mobile phone’s internal circuitry? The PMI 632-602 Original Mobile Phone IC is the optimal solution designed to meet industry standards. Known for its precision, reliability, and compatibility, this IC component ensures your device functions seamlessly without any hiccups.
Why Choose the PMI 632-602 Original IC?
The PMI 632-602 IC offers outstanding performance while adhering to high-quality manufacturing standards. Engineered for durability and efficiency, this original component is compatible with a broad range of mobile phone models, making it a universally trusted replacement part. The product ensures uninterrupted operation, minimizing the risk of device malfunction. Its compact design optimizes space within your device’s circuitry while maintaining superior responsiveness and speed.
Crafted for Advanced Mobile Functionality
This mobile phone IC is perfect for restoring optimal functionality to smartphones experiencing slowed performance or hardware issues. Built to support power management for various mobile operations, the PMI 632-602 IC ensures efficient energy usage and enhances device lifespan. If you’re looking to repair or upgrade your smartphone, investing in this original IC product is a decision backed by quality engineering and industry-grade performance.
Key Features at a Glance
– Authentic PMI 632-602 IC for flawless compatibility.
– Hardwearing design for extended service life.
– Improves mobile functionality and power efficiency.
– Ensures your device runs at peak performance.
– Suitable for various smartphone models.
Give your mobile device the original edge it deserves by choosing the PMI 632-602 Mobile Phone IC. Experience improved operational efficiency and lasting system reliability with this robust and expertly crafted product.
The PMI632-602 is a specialized Power Management Integrated Circuit (PMIC) designed primarily for mid-range Android smartphones, particularly those within the Vivo and Xiaomi ecosystems (e.g., Vivo Y73, Y95, and various Redmi models).1 It serves as a secondary power management and charging controller, working in tandem with the primary PMIC to handle high-demand tasks like battery charging, display power, and voltage regulation for peripheral components.
Technical Specifications & Features
The following table outlines the core specifications and functional domains of the PMI632-602:
| Feature | Specification / Description |
| IC Model Number | PMI632-602 (Variant -00) |
| Manufacturer | Qualcomm |
| Type | Power Management IC (Secondary/Charging PMIC) |
| Pin Count | 72-Pin BGA (Ball Grid Array) |
| Input Voltage (VBUS) | Supports standard 5V USB input and Quick Charge protocols |
| Charging Support | Integrated Switching Charger; supports Quick Charge (QC) |
| Output Rails | VPH_PWR, VBAT, VDD_DISP, VDD_LCD, VReg LDOs |
| Connectivity | USB (DP/DM), I2C/SPMI for communication with the CPU |
| Functionality | Battery Charging, Backlight Driver, Flash/Torch Driver, RGB LED Control |
| Package Size | Approx. 0.01kg (component weight); Compact BGA form factor |
| Common Compatible Models | Vivo Y73, Y93, Y95, Redmi 7, Redmi 8, and Samsung budget series |
Functional Breakdown
1. Power Distribution (DC-to-DC)
The PMI632-602 acts as a DC-to-DC converter. It takes the raw power from the battery (VBAT) or the USB charger (VBUS) and converts it into a stable system voltage known as VPH_PWR. This rail is the backbone of the phone, supplying power to nearly all other circuits, including the RF power amplifiers and primary PMIC.
2. Charging Management
One of its most critical roles is managing the Lithium-Ion battery charging cycle. It monitors the battery temperature (via the Thermistor/THERM pin) and regulates current flow to prevent overheating.2 It supports fast-charging capabilities, significantly reducing the time required to top up the device compared to older linear charging chips.
3. Display and Backlight Control
Unlike primary PMICs that focus on the CPU, the PMI632 series often includes dedicated drivers for the LCD/OLED display. It manages:
-
VDD_DISP: Positive and negative voltage rails for the screen.
-
Backlight: High-voltage boost for the LED string behind the LCD.
-
RGB/Flash: Integrated drivers for notification LEDs and the camera flash.
4. Safety and Protection
The chip is equipped with internal thermal sensors and over-voltage protection (OVP).3 If the chip detects a short circuit on the system rail or if the charging voltage exceeds safe limits, it will automatically shut down the power flow to protect the motherboard.
Application in Repair
In the mobile repair industry, the PMI632-602 is frequently replaced when a device is “Dead” (no power), failing to charge, or showing no display/backlight despite a working screen. Technicians typically use BGA reballing techniques to replace this chip, as the 72 solder balls underneath require precise heat and alignment.
