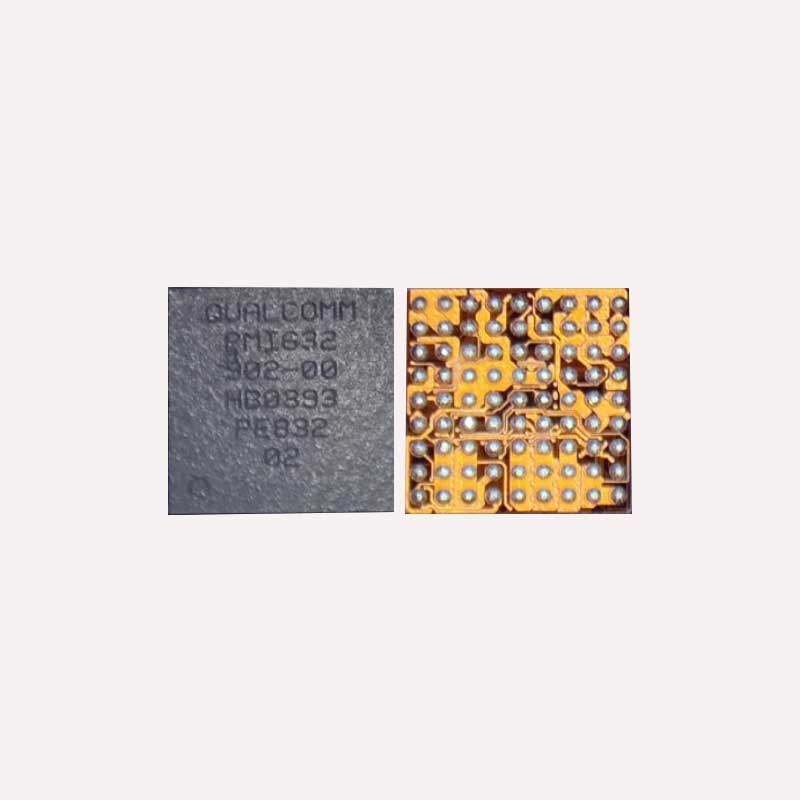

PMI 632-902 Mobile Phone IC
Reliable Performance for Your Mobile Device
The PMI 632-902 Mobile Phone IC is engineered for delivering unmatched performance, ensuring your device runs smoothly and efficiently. Crafted to meet the requirements of modern mobile technologies, it’s an essential component for high-speed functionality. PMI 632-902 Mobile Phone IC
Compact Design with Advanced Capabilities
This intelligent IC optimizes power consumption while maintaining a compact form factor, making it ideal for various mobile devices. Its advanced architecture supports improved data processing and enhances the overall operational stability of your device. PMI 632-902 Mobile Phone IC
A Solution Built for Longevity
Designed with durability and efficiency in mind, the PMI 632-902 IC is a dependable solution for device manufacturers and repair professionals alike. Trust this high-quality component to provide long-term reliability and exceptional performance, no matter the application. PMI 632-902 Mobile Phone IC
The PMI632-902 is a crucial “Companion” Power Management IC (PMIC) designed by Qualcomm. While the main PMIC (like the PM6150) handles the heavy lifting for the CPU and RAM, the PMI632-902 is primarily responsible for charging logic, display power, and secondary voltage regulation. PMI 632-902 Mobile Phone IC
Below are the detailed specifications and technical insights for the PMI632-902 in a comprehensive format.
PMI632-902 Technical Specifications Table
| Feature Category | Technical Specification Detail |
| Model Number | PMI632-902 (Revision 902) |
| Manufacturer | Qualcomm |
| Type | Secondary/Companion PMIC & Charging IC |
| Package Type | BGA-80 (80-Ball Grid Array) |
| Input Voltage Range | $3.6\text{V}$ to $4.5\text{V}$ (V-BATT) / Up to $6.0\text{V}$ (V-BUS) |
| Charging Protocol | Supports Quick Charge (QC) 3.0 / 4.0 Standard |
| Max Charging Current | Approx. $3.0\text{A}$ (Device dependent) |
| Integrated Functions | Charging Logic, Fuel Gauge, RGB LED Driver, Flash LED |
| Communication | $\text{I}^2\text{C}$ / SPMI Interface |
| Operating Temperature | $0^\circ\text{C}$ to $125^\circ\text{C}$ (Thermal Shutdown at peak) |
| Compatibility | Xiaomi Redmi 8/8A, Note 8, Samsung A20s, Vivo V15, etc. |
| Protections | OVP (Over Voltage), OCP (Over Current), Thermal Protection |
Core Functions & System Architecture
1. Advanced Charging Management
The “I” in PMI stands for Integrated Charging. The PMI632-902 acts as the gateway between the USB port and the battery. It detects the charger type (Standard vs. Fast Charger) and regulates the current. It also manages the VBUS line, ensuring that high-voltage spikes from faulty chargers do not reach the sensitive CPU.
2. Display and Backlight Control
One of the unique roles of the 902 variant is managing the Display Power Supply (LDOs). In many Xiaomi and Samsung mid-range devices, if the phone has a “Black Screen” but the phone is vibrating/calling, the PMI632-902 is often the culprit because it fails to provide the $+5\text{V}$ and $-5\text{V}$ (VSP/VSN) required for the LCD/AMOLED panel.
3. RGB and Flash Driver
The IC integrates drivers for the notification LEDs and the camera flash. By consolidating these into the PMI, Qualcomm reduces the number of small components needed on the motherboard, saving space for larger batteries.
Common Faults & Troubleshooting for Technicians
The PMI632-902 is a “high-failure” component because it is directly exposed to external charging stress. Here are common symptoms:
-
Fake Charging: The phone shows the charging icon but the battery percentage does not increase or actually drops. This indicates a failure in the IC’s switching logic.
-
Short Circuit (VPH_PWR): If the phone is completely dead and the DC Power Supply shows a high current (short) before pressing the power button, the PMI632 is often the source as it generates the main system rail.
-
Slow Charging: If the phone only takes $0.4\text{A}$ or $0.6\text{A}$ instead of the standard $1.5\text{A}+$, the CC (Configuration Channel) lines inside the IC may be damaged. PMI 632-902 Mobile Phone IC
-
Overheating: Because it handles high current, the IC can develop internal “leakage,” causing it to become hot even when the phone is idle. PMI 632-902 Mobile Phone IC
Difference Between PMI632-902 and Other Variants
Technicians must be careful with suffixes. While variants like PMI632-502 or 802 exist, they are not always 100% interchangeable without firmware modifications. The 902 variant is optimized for specific power sequencing required by newer Snapdragon 600-series motherboards. Replacing a 902 with a 502 might lead to a “Boot Loop” or “No Display” issue. PMI 632-902 Mobile Phone IC
Repair Best Practices
When replacing this BGA chip, it is recommended to use a 285°C to 300°C heat profile with a medium airflow. Since the chip is surrounded by tiny capacitors, using high-quality flux is essential to ensure all 80 balls sit perfectly. Always check the VPH_PWR coil near the IC after installation to ensure the short has been cleared. PMI 632-902 Mobile Phone IC
