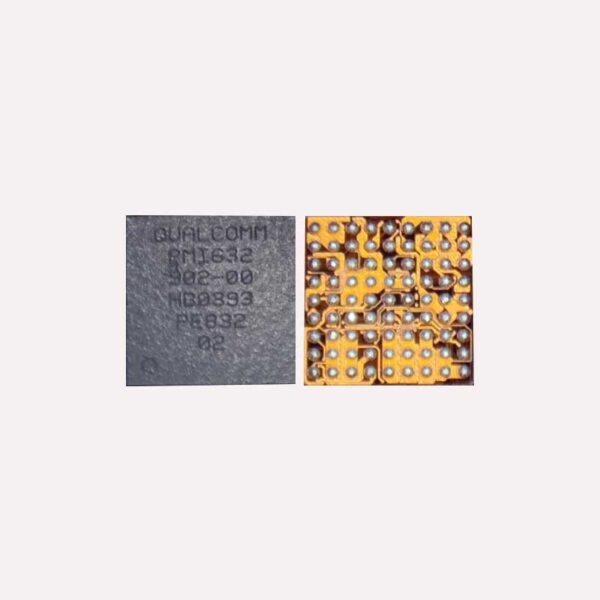

PMI 632 Mobile Phone IC
Unmatched Efficiency with PMI 632 Mobile Phone IC
The PMI 632 Mobile Phone IC is a game-changer in the world of mobile technology. Designed to deliver top-tier performance and reliability, this integrated circuit is the key to enhancing your mobile device’s functionality. Whether you’re building smartphones, tablets, or other portable electronics, this IC offers robust features to meet your needs.
Advanced Features for Seamless Mobile Operation
What sets the PMI 632 Mobile Phone IC apart is its cutting-edge design and comprehensive functionality. It is meticulously engineered to handle high-speed processing while reducing power consumption. This ensures your devices not only perform better but also operate efficiently for extended periods. With its compact form factor, the PMI 632 is perfect for modern devices requiring sleek and lightweight components.
Versatility for a Wide Range of Applications
From managing power distribution to ensuring stable connectivity, the PMI 632 Mobile Phone IC has the versatility to support a variety of applications. Its robust design ensures compatibility with multiple device architectures, making it ideal for manufacturers seeking reliable, high-quality mobile components. Trust PMI 632 to handle rigorous demands while keeping your device functioning at peak performance.
The PMI632 is a sophisticated Power Management Integrated Circuit (PMIC) developed by Qualcomm, primarily designed for mid-range and budget-friendly smartphones.1 It serves as a secondary or companion PMIC, working in tandem with a primary PMIC (like the PM660 or PM450) and a Qualcomm Snapdragon processor to manage the device’s complex electrical needs.
In modern smartphone architecture, power management is too vast for a single chip. The PMI632 is specialized to handle battery charging, display power, and haptics, offloading these high-heat and high-current tasks from the main processor.
Core Functions and Subsystems
1. Battery Management and Charging
The most critical role of the PMI632 is managing the Lithium-ion battery interface. It features an integrated switching charger that supports:
-
Fast Charging: It often supports Qualcomm Quick Charge (QC) 3.0 or 4.0 standards, allowing for high-current charging without excessive heat.
-
Fuel Gauge: The IC includes a precision “fuel gauge” system that monitors the battery’s voltage, current, and temperature to provide the OS with an accurate percentage of remaining life.
-
USB Interface: It manages the USB Type-C CC (Configuration Channel) pins to detect cable orientation and negotiate power delivery (PD) profiles.
2. Display and Backlight Power
The PMI632 is often responsible for the “eyes” of the phone. It generates the specific voltages required for different screen technologies:
-
WLED Driver: For LCD screens, it contains a boost converter that provides the high voltage (often 15V–25V) needed to drive the string of LEDs in the backlight.
-
AMOLED Bias: For OLED screens, it provides the positive ($+5V$) and negative ($-5V$) voltage rails required for the organic pixels to illuminate.
3. Haptics and Audio
To save space on the motherboard, Qualcomm integrated a Haptic Driver into the PMI632. This driver controls the vibration motor (LRA or ERM), translating software signals into physical feedback for notifications or gaming. Some variants also include basic audio codec support for low-power tasks. PMI 632 Mobile Phone IC
4. Voltage Regulation (Buck/LDO)
While the primary PMIC handles the CPU/GPU, the PMI632 contains several Buck Regulators (step-down) and LDOs (Low-Dropout regulators) for auxiliary components like the camera sensors, Wi-Fi modules, and memory interfaces.
Technical Architecture
The chip is typically manufactured using a Wafer-Level Chip Scale Package (WLCSP), which means the IC is essentially the same size as the silicon die itself, utilizing tiny solder balls on the underside to connect to the PCB. This footprint is essential for maintaining the slim profile of modern mobile devices. PMI 632 Mobile Phone IC
| Feature | Specification Detail |
| Interface | SPMI (System Power Management Interface) |
| Charging | Switch-mode, supports QC 3.0/4.0 |
| Protection | Over-voltage (OVP), Thermal Shutdown, Short-circuit protection |
| Communication | $I^2C$ or SPMI for control by the Application Processor |
Common Issues and Troubleshooting
In the world of mobile repair, the PMI632 is a frequent point of failure.2 Because it handles high-current charging and display power, it is susceptible to:
-
Charging Failures: A “Fake Charging” symptom where the phone shows a charging icon but the percentage never increases. PMI 632 Mobile Phone IC
-
Short Circuits: Often caused by 3rd-party chargers, leading to a “dead” phone that draws 0.01A-0.05A on a DC power supply. PMI 632 Mobile Phone IC
-
Backlight Failure: If the screen is dark but the phone is vibrating, the WLED driver section of the PMI632 may be blown. PMI 632 Mobile Phone IC
