PMI 8952 Original Mobile Phone IC
Enhanced Performance for Mobile Devices
The PMI 8952 Original Mobile Phone IC is designed to deliver outstanding performance and reliability for modern mobile devices. Tailored for optimal efficiency, this integrated circuit ensures smooth functionality and enhances your smartphone’s capabilities. PMI 8952 Original Mobile Phone IC
Exceptional Durability and Quality
Built to meet industry standards, the PMI 8952 is crafted with precision and high-quality materials. Its durable design ensures longevity, providing consistent performance that you can trust over time.
Perfect Compatibility
Whether you’re repairing or upgrading your mobile phone, the PMI 8952 Original IC is specifically engineered for seamless integration. Its compatibility with a wide range of devices makes it an ideal choice for professionals and enthusiasts alike. PMI 8952 Original Mobile Phone IC
The PMI8952 is a sophisticated Power Management Integrated Circuit (PMIC) manufactured by Qualcomm. It is a “secondary” power IC often paired with a primary PMIC (like the PM8952 or PM8953) to handle heavy-duty power tasks in mid-range smartphones, particularly those within the Xiaomi Redmi and Motorola G-series.
Its primary responsibilities include battery charging, display power (backlight and graphics voltages), and haptic feedback control. PMI 8952 Original Mobile Phone IC
The IC is physically identified by the “PMI8952” laser-etched marking on its top surface. In many mobile “no power” or “no charging” scenarios, this IC is the primary suspect, especially if the phone shows a $0.01\text{A}$ current draw on a USB tester or if the screen backlight is non-functional while the phone is otherwise “alive.”
Core Specifications Table
The following table outlines the technical parameters and functional capabilities of the original PMI8952 IC.
| Feature | Specification / Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Package Type | 144-pin WLNSP (Wafer Level Nano Scale Package) |
| Primary Function | Secondary Power Management & Battery Charging |
| Charging Technology | Supports Qualcomm Quick Charge (Fast Charging) |
| Input Voltage (USB) | Typically $4.35\text{V}$ to $5.0\text{V}$ (Standard USB range) |
| Display Support | Integrated Backlight WLED Driver & LCD Bias (VSP/VSN) |
| Flash/Torch Support | Integrated Dual LED Flash Driver |
| Interface | SPMI (System Power Management Interface) |
| Communication Pins | USB_DP, USB_DM, USB_ID, SPMI_CLK, SPMI_DATA |
| Housekeeping | Integrated Fuel Gauge, ADC, and Thermal Monitoring |
| Haptics | Integrated Haptic Driver (LRA/ERM support) |
| Operating Temp | $-30°\text{C}$ to $+85°\text{C}$ (Standard mobile grade) |
Key Functional Blocks
The PMI8952 is much more than a simple regulator; it acts as a hub for several high-current subsystems:
-
Battery Management: It manages the charging cycle of the Li-ion battery. It includes a Fuel Gauge that uses an on-chip ADC to monitor battery voltage ($V_{BATT}$) and current flow to provide accurate percentage readings. PMI 8952 Original Mobile Phone IC
-
Display Bias: It generates the specific positive ($V_{SP}$) and negative ($V_{SN}$) voltages required to drive the LCD/AMOLED graphics layers, usually around $+5\text{V}$ and $-5\text{V}$. PMI 8952 Original Mobile Phone IC
-
WLED Backlight: It contains a boost converter that can drive multiple series of LEDs for the screen backlight, often reaching voltages much higher than the battery level (up to $25\text{V}+$ depending on the screen). PMI 8952 Original Mobile Phone IC
-
Safety Protections: It features over-voltage protection (OVP), over-temperature protection (OTP), and short-circuit protection to prevent motherboard damage during charging.
Common Applications
This IC is widely recognized by repair technicians for its presence in popular “legacy” budget performers:
-
Xiaomi: Redmi 3, 3S, Note 3, Note 3 Pro, Redmi 4. PMI 8952 Original Mobile Phone IC
-
Motorola: Moto G4 Plus. PMI 8952 Original Mobile Phone IC
-
Other Devices: Various tablets and portable electronics using the Snapdragon 430/625/650 chipsets. PMI 8952 Original Mobile Phone IC
Repair & Identification

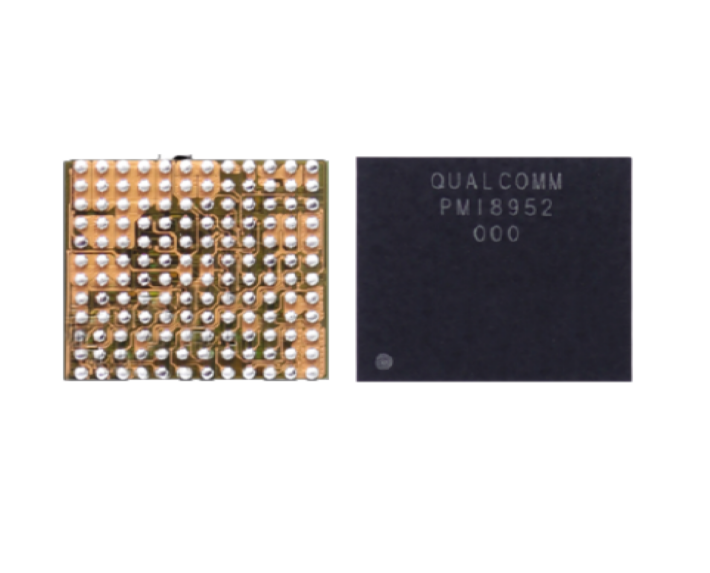

The IC is physically identified by the “PMI8952” laser-etched marking on its top surface. In many mobile “no power” or “no charging” scenarios, this IC is the primary suspect, especially if the phone shows a $0.01\text{A}$ current draw on a USB tester or if the screen backlight is non-functional while the phone is otherwise “alive.”
