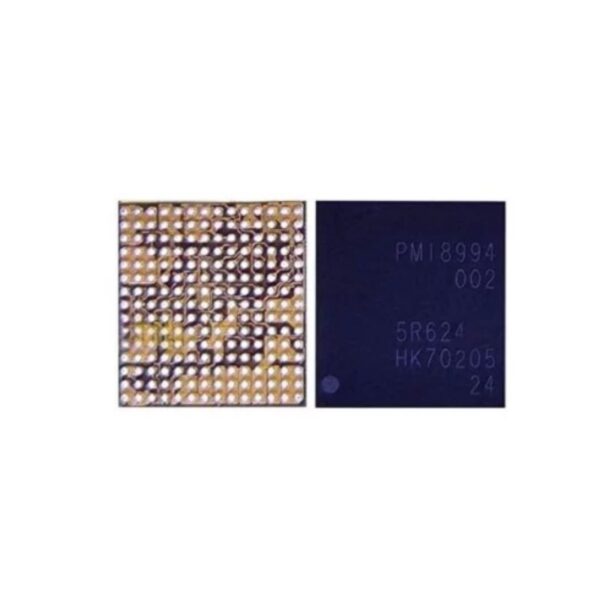

PMI 8994 Original Mobile Phone IC
Enhance Your Mobile Device’s Efficiency
The PMI 8994 Original Mobile Phone IC delivers exceptional quality and compatibility, ensuring your device functions optimally. Designed to meet the rigorous demands of modern smartphones, this IC is a crucial component for maintaining excellent performance. PMI 8994 Original Mobile Phone IC
Precision Engineering for Reliable Results
Manufactured with cutting-edge technology, the PMI 8994 features superior functionality and durability. Its precise engineering guarantees seamless integration, reducing the risks of malfunction and ensuring smooth operation in your mobile device. PMI 8994 Original Mobile Phone IC
A Trusted Solution for Repairs and Replacements
Whether you’re repairing a device or replacing an essential part, the PMI 8994 Original Mobile Phone IC is the trusted choice for professionals and DIY enthusiasts alike. Its robust build and proven reliability make it the perfect fit for safeguarding your phone’s performance. PMI 8994 Original Mobile Phone IC
The PMI8994 is a specialized Power Management Integrated Circuit (PMIC) developed by Qualcomm. Unlike the primary PMIC (usually the PM8994), the “PMI” (Secondary PMIC) variant is primarily responsible for specialized tasks like battery charging, display power, and driving peripheral LEDs or haptics. It was a staple in flagship smartphones released around 2015-2016, such as the Nexus 6P, LG G4, and Xiaomi Mi 5. PMI 8994 Original Mobile Phone IC
PMI8994 Core Specifications
| Feature | Specification Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Package Type | BGA (Ball Grid Array) |
| Primary Function | Secondary Power Management & Battery Charging |
| Charging Support | Quick Charge (QC) 2.0 / 3.0 compatible |
| Output Rails | SMPS (Buck/Boost) and multiple LDOs |
| Interface | SPMI (System Power Management Interface) |
| User Interface Support | Haptics driver, Flash LED, and White LED (WLED) drivers |
| Safety Features | Over-temperature, UVLO (Under Voltage Lockout), and OVP |
Key Functional Blocks
The PMI8994 is divided into several sub-systems that handle different power requirements of a mobile device:
-
Switching Mode Power Supply (SMPS): It converts battery voltage to the specific lower voltages required by high-power components. It includes HF-SMPS (High Frequency) for efficiency and FT-SMPS for fast transient response.
-
Battery Management & Fuel Gauge: It manages the charging current and provides precise data to the Android OS regarding battery percentage and health. It includes a high-accuracy HKADC (Housekeeping Analog-to-Digital Converter) for monitoring voltage and temperature.
-
Display Bias: Many PMI8994 chips are used to generate the positive and negative voltage rails ($\pm$ bias) required by AMOLED or high-end LCD panels. PMI 8994 Original Mobile Phone IC
-
LED & Flash Drivers: The IC contains the circuitry to drive the rear camera flash (dual-tone) and the front-facing notification LEDs. PMI 8994 Original Mobile Phone IC
Technical Characteristics
-
Mechanical Footprint: The IC is extremely compact, designed for high-density PCB mounting. It typically measures roughly $5\text{mm} \times 5\text{mm}$.
-
Thermal Control: It features Smart Thermal Control, which throttles the charging speed if the IC or the battery exceeds safe temperature thresholds. PMI 8994 Original Mobile Phone IC
-
Power Sequencing: It works in tandem with the main processor (Snapdragon 810/820) to ensure that power is delivered to the camera, display, and sensors in the correct order during boot-up. PMI 8994 Original Mobile Phone IC
Common Failure Symptoms
When a PMI8994 IC fails or becomes “leaky” (short-circuited), the device may exhibit:
-
No Charging: The phone detects the cable but the percentage never increases. PMI 8994 Original Mobile Phone IC
-
Fake Charging: The battery icon shows charging, but the battery actually drains. PMI 8994 Original Mobile Phone IC
-
No Display/Backlight: Because it manages display bias, a faulty PMI8994 can result in a “black screen” even if the phone is vibrating or making sounds. PMI 8994 Original Mobile Phone IC
-
Dead Phone: A short within the IC can prevent the entire power-on sequence. PMI 8994 Original Mobile Phone IC
