PMI 8996 Mobile Phone IC
Highly Efficient Performance
The PMI 8996 Mobile Phone IC is engineered to deliver exceptional performance for modern mobile devices. Known for its reliability and energy efficiency, this IC ensures your device operates smoothly and consistently. PMI 8996 Mobile Phone IC
Designed for Versatility
From managing power distribution to optimizing battery life, the PMI 8996 excels in providing a seamless experience for smartphones and other compatible electronic devices. Its robust design ensures compatibility across a wide range of applications. PMI 8996 Mobile Phone IC
Trusted Solution for Modern Tech
Developed with cutting-edge technology, the PMI 8996 Mobile Phone IC is a dependable choice for manufacturers and tech enthusiasts alike. Its advanced features and durability make it a staple component in high-performance mobile devices. PMI 8996 Mobile Phone IC

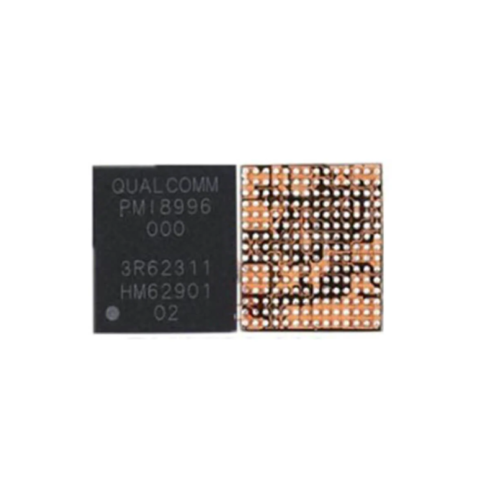

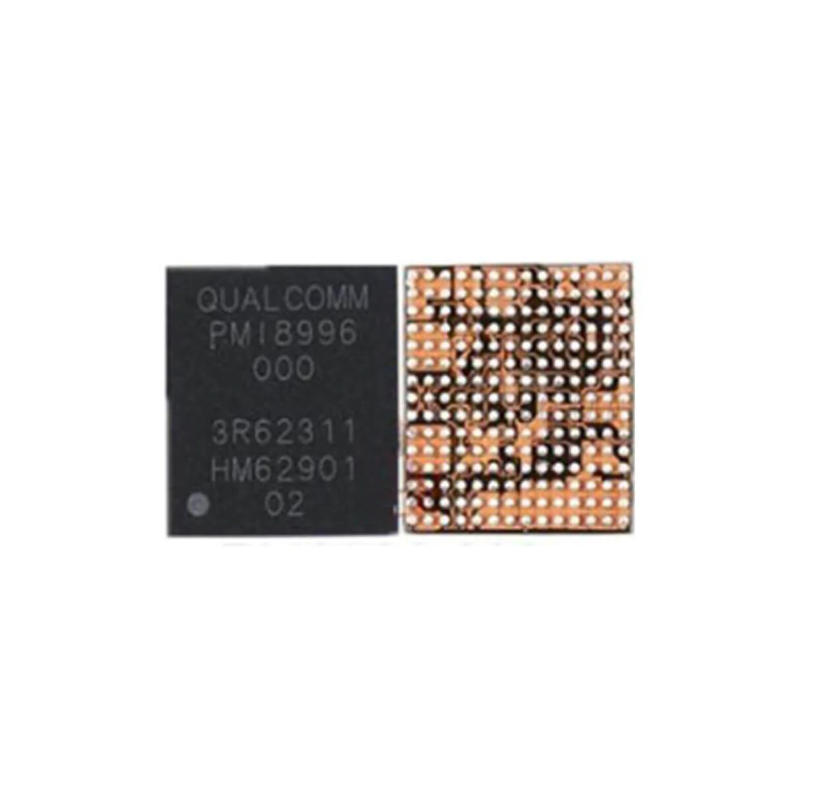

The PMI8996 is a critical secondary Power Management Integrated Circuit (PMIC) developed by Qualcomm. It is part of the high-end power management system typically found in flagship devices powered by the Snapdragon 820 and 821 chipsets. PMI 8996 Mobile Phone IC
Unlike the primary PMIC (PM8996) which focuses on CPU and GPU cores, the PMI8996 is specifically designed to handle “User Interface” power, which includes advanced battery charging (Quick Charge), display bias, haptics, and flash LED drivers.
PMI8996 Full Technical Specifications
| Feature Category | Detailed Specification |
| Manufacturer | Qualcomm Technologies, Inc. |
| Model Number | PMI8996 (Primary Variant: 000) |
| Package Type | WLCSP-210 (Wafer Level Chip Scale Package) |
| Physical Dimensions | Approximately $6.24 \text{ mm} \times 5.69 \text{ mm}$ |
| Terminal Count | 210-Pin/Ball Grid |
| Input Voltage Range | $2.5\text{V}$ to $4.75\text{V}$ (Supports standard and High-Voltage Li-ion) |
| Primary Function | Secondary PMIC / Charging Management / UI Support |
| Charging Protocol | Qualcomm Quick Charge 3.0 Support |
| Max Charging Current | Up to $3.0\text{A}$ (Step-down switching charger) |
| Fuel Gauge | Integrated high-precision battery monitoring (ADC-based) |
| Display Support | Positive and Negative Bias ($\pm\text{V}$) for LCD/AMOLED panels |
| LED Drivers | Supports Flash, Torch, and RGB notification LEDs |
| Interface Protocol | SPMI (System Power Management Interface) |
| Operating Temp | $-30^\circ\text{C}$ to $+125^\circ\text{C}$ |
Core Functional Areas
1. Advanced Battery Management & Charging
The PMI8996 is the heart of the phone’s charging system. It utilizes a high-efficiency switching charger that minimizes heat during fast charging. It is responsible for the VPH_PWR (Voltage Phone Power) rail, which powers the device while the battery is being charged. It also features a “Fuel Gauge” that measures current flow into the battery with extreme precision, allowing the phone to show an accurate battery percentage.
2. Display and Visual Power
One of the most common reasons for replacing a PMI8996 is a display issue. This IC generates the specific voltages required by modern screens. For AMOLED displays, it produces the sensitive $+5\text{V}$ and $-5\text{V}$ (ELVDD/ELVSS) rails. If these rails fail, the screen will remain black even if the phone is vibrating and receiving calls.
3. Haptics and Lighting
This IC manages the vibration motor (Haptics) and the high-current flash for the camera. It contains a specialized “Smart Boost” converter that can momentarily increase voltage to fire the camera flash or provide a strong vibration kick without draining the main system power.
Troubleshooting & Repair Guide (Technician’s Insight)
Because the PMI8996 handles multiple “external” functions, its failure symptoms are often very specific:
-
Charging Issues: If the phone shows “Charging” but the percentage doesn’t increase, or if it doesn’t detect the USB cable at all, the PMI8996’s charging sub-block may be damaged.
-
No Display / No Backlight: If you have confirmed the screen is good but there is no light or image, technicians check the output capacitors near the PMI8996 for the $\pm\text{V}$ display bias.
-
Half-Dead State: Sometimes a phone will draw a low current (around $0.05\text{A} – 0.15\text{A}$) on a DC power supply and get stuck. This often indicates the PMI8996 is not sending the “Power Good” signal back to the CPU.
-
Fake Charging: This is a classic PMI8996 symptom where the phone shows it’s charging, but the battery actually drains.
Comparison: PM8996 vs. PMI8996
It is important to distinguish between the two. The PM8996 (without the “I”) is the “Big Power” IC that powers the Snapdragon processor. The PMI8996 is the “Small Power” or “Charging” IC. They are not interchangeable and work in a Master-Slave configuration to manage the device’s energy.
