QPA 8385 Mobile Phone IC
Enhance Your Mobile Device’s Performance
The QPA 8385 Mobile Phone IC is designed to deliver superior performance, reliability, and efficiency for modern mobile devices. Crafted with precision engineering, it ensures seamless connectivity and optimized power consumption, perfect for enhancing your smartphone’s functionality. QPA 8385 Mobile Phone IC
Compact Design, High Efficiency
Engineered for compact devices, the QPA 8385 offers a high level of integration without compromising efficiency. Its advanced circuitry supports various networking standards, making it versatile and reliable for diverse mobile applications. QPA 8385 Mobile Phone IC
Reliable and Durable Solution
Built to last, the QPA 8385 Mobile Phone IC is designed using robust materials to ensure long-term reliability in even the most demanding conditions. Whether you’re manufacturing smartphones or upgrading devices, this component guarantees consistent performance and durability. QPA 8385 Mobile Phone IC

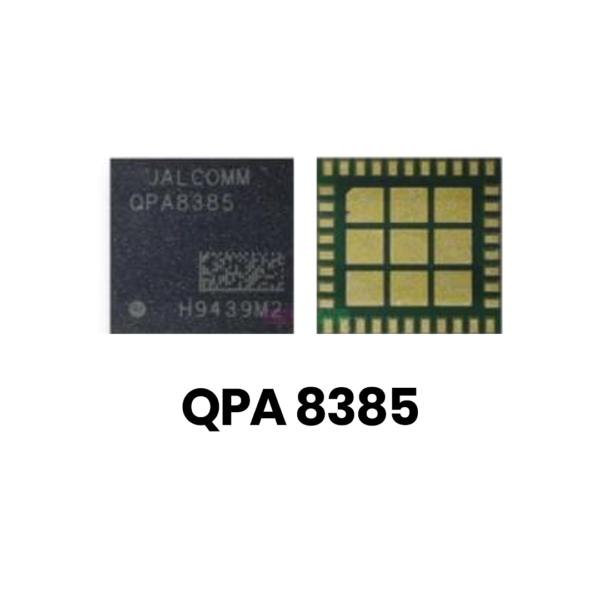

The QPA8385 is a high-performance RF Front-End Module (FEM) manufactured by Qorvo. In the context of modern mobile devices, it functions as a critical bridge between the device’s processor (modem) and the antenna, specifically handling the amplification and switching of radio frequency signals. QPA 8385 Mobile Phone IC
Below are the detailed technical specifications and a comprehensive breakdown of its architecture and applications.
Technical Specifications Table
The following table outlines the core electrical and mechanical parameters of the QPA8385.
| Parameter | Specification | Unit |
| Manufacturer | Qorvo | – |
| Component Type | RF Front-End Module (FEM) / Power Amplifier | – |
| Technology | GaAs HBT (Gallium Arsenide Heterojunction Bipolar Transistor) | – |
| Frequency Range | 2.4 GHz – 2.5 GHz (ISM Band) | GHz |
| Operating Voltage ($V_{CC}$) | 3.0 to 4.5 (Typical 3.4V) | V |
| Output Power ($P_{out}$) | +25 to +28 (Mode dependent) | dBm |
| Gain | 28 – 32 | dB |
| Current Consumption | 250 – 450 (at max $P_{out}$) | mA |
| Input/Output Impedance | 50 (Internally Matched) | $\Omega$ |
| Package Type | Laminate LGA / QFN | – |
| Package Size | 2.5 x 2.5 x 0.45 (Approx.) | mm |
| Operating Temperature | -40 to +85 | °C |
| Control Interface | MIPI RFFE / GPIO (Standard dependent) | – |
Architecture and Functional Components
The QPA8385 is an “integrated” module, meaning it combines several discrete RF components into a single tiny silicon/laminate footprint. This integration is vital for modern smartphones where internal PCB space is extremely limited.
1. Power Amplifier (PA)
The primary role of the PA within the QPA8385 is to boost the low-power signal coming from the transceiver (e.g., a Qualcomm or MediaTek modem) to a level high enough to be transmitted over the air to a cellular tower or Wi-Fi router.
2. Low Noise Amplifier (LNA)
When the device is in receiving mode, the signals arriving at the antenna are incredibly weak. The integrated LNA amplifies these signals while adding as little “noise” as possible, ensuring the modem can decode the data accurately.
3. Switch (Antenna Switch)
The module includes a high-speed RF switch that toggles the antenna between the Transmit (TX) and Receive (RX) paths. This happens thousands of times per second in Time Division Duplexing (TDD) systems.
4. Internal Matching Circuitry
Older RF designs required external inductors and capacitors to match the impedance to $50\Omega$. The QPA8385 features internal matching, which simplifies the phone’s circuit board design and reduces the “bill of materials” (BOM) for manufacturers.
Application and Device Context
The QPA8385 is most commonly found in mid-to-high-end Android smartphones (such as models from Xiaomi, Samsung, and OnePlus). It is typically part of the Wi-Fi or Cellular RF chain.
Key Features:
-
High Efficiency: Uses GaAs (Gallium Arsenide) technology to provide high power output with minimal battery drain.
-
Compact Form Factor: The ultra-low profile allows it to fit in “thin” mobile designs.
-
Thermal Stability: Designed to maintain performance even as the phone heats up during intensive tasks like gaming or high-speed data downloading.
Why It Matters for Your Phone:
If this IC fails, the device typically experiences “No Service” or “Wi-Fi out of range” issues. Because it is a surface-mount device (SMD), it requires professional micro-soldering tools (hot air stations) to replace or repair on a logic board.
Note on Variations: Depending on the specific regional variant of a phone (e.g., North American vs. International), the QPA8385 may be swapped for a similar module like the QPA8386 or a Skyworks equivalent to support different frequency bands.
