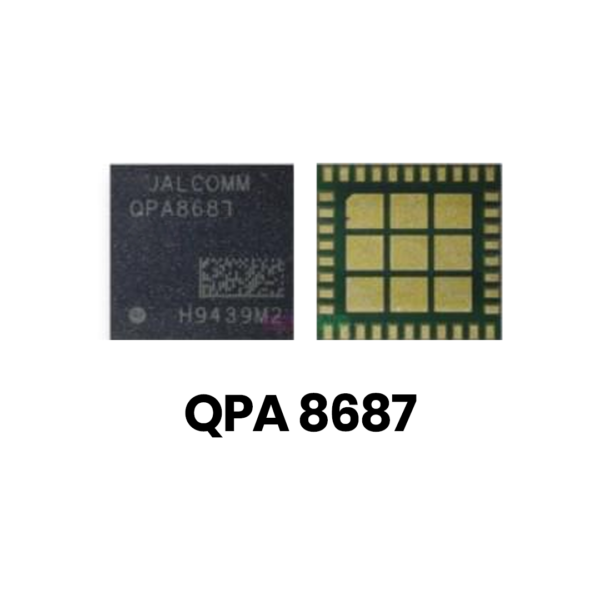

QPA 8687 Mobile Phone IC
Powering Next-Generation Mobile Devices
The QPA 8687 Mobile Phone IC is an advanced integrated circuit designed to optimize the performance of your devices. With its streamlined architecture and cutting-edge technology, it delivers top-tier efficiency, supporting seamless communication and improved device longevity. QPA 8687 Mobile Phone IC
Compact Design, Maximum Performance
This compact IC is engineered for space-constrained designs, making it an ideal choice for modern mobile phones and devices. Despite its small size, it ensures powerful output, catering to next-level functionality for tech-savvy users and developers alike. QPA 8687 Mobile Phone IC
Reliable, Durable, and Efficient
Built with high-quality materials and precision engineering, the QPA 8687 Mobile Phone IC guarantees durability and dependable performance. Its efficient power consumption and robust design make it a standout component for enhancing device performance. QPA 8687 Mobile Phone IC
The QPA8687 is a specialized Radio Frequency (RF) Integrated Circuit, specifically an RF Front-End (RFFE) Power Amplifier Module designed by Qualcomm. It is a critical component in modern 5G and 4G LTE mobile devices, responsible for amplifying weak signals from the modem before they are transmitted through the antenna. QPA 8687 Mobile Phone IC
Below is a detailed breakdown of the QPA8687 specifications, functional architecture, and technical application in mobile telephony. QPA 8687 Mobile Phone IC
1. Technical Overview: What is the QPA8687?
The QPA8687 belongs to a class of high-efficiency, multi-mode, multi-band Power Amplifier (PA) modules. In a mobile phone, the “Front-End” refers to everything between the transceiver (which handles the digital-to-analog conversion) and the antenna.
The QPA8687 serves as the High-Band (HB) and Ultra-High Band (UHB) power amplifier. It is often paired with Qualcomm’s Snapdragon modem-RF systems (like the X55, X60, or X65 series) to support 5G Sub-6GHz and LTE Advanced Pro frequencies. QPA 8687 Mobile Phone IC
2. Full Specifications Table
| Feature Category | Specification Detail |
| Manufacturer | Qualcomm Technologies, Inc. |
| Part Number | QPA8687 |
| Device Type | RF Front-End (RFFE) Power Amplifier Module (PAM) |
| Process Technology | Gallium Arsenide (GaAs) HBT / CMOS |
| Supported Generations | 5G NR (Sub-6GHz), 4G LTE-Advanced, 3G WCDMA |
| Frequency Range | ~2300 MHz to 2700 MHz (High Band) & 3300 MHz to 5000 MHz (UHB) |
| Band Support | LTE/5G Bands: n7, n38, n40, n41, n77, n78, n79 |
| Output Power | +28 dBm to +30 dBm (Standard for Class 2/3 Power) |
| Control Interface | MIPI® RFFE v2.1 (Standardized interface for RF components) |
| Supply Voltage ($V_{cc}$) | 3.4V to 4.5V (Typically managed by an Envelope Tracker IC) |
| Power Management | Average Power Tracking (APT) & Envelope Tracking (ET) |
| Package Type | LGA (Land Grid Array) |
| Package Dimensions | Approx. 4.0 mm x 6.5 mm x 0.8 mm |
| Pin Count | 60-pin configuration (Standard for complex RFFE modules) |
| Operating Temperature | -30°C to +85°C |
3. Key Functional Features
Integrated Filtering and Switching
Unlike older PA chips that required external filters, the QPA8687 is a PAMiD (Power Amplifier Module with integrated Duplexers) or a PAMiF (with integrated Filters). This integration reduces the “footprint” on the phone’s logic board (PCB), allowing for thinner devices or larger batteries. QPA 8687 Mobile Phone IC
MIPI RFFE Control
The chip is controlled via the MIPI RFFE (Radio Frequency Front End) bus. This allows the phone’s CPU/Modem to instantly change the amplifier’s gain, frequency band, or power mode in microseconds as the user moves between cell towers. QPA 8687 Mobile Phone IC
Advanced Power Efficiency
To prevent the phone from overheating during 5G data sessions, the QPA8687 supports Envelope Tracking (ET). QPA 8687 Mobile Phone IC
-
How it works: Instead of providing a constant high voltage to the amplifier, an external chip (like the QET5100) varies the voltage in real-time to match the signal’s “envelope.”
-
Benefit: This reduces power waste as heat by up to 30%, significantly extending battery life during heavy data usage.
4. Pinout and Internal Logic
While specific proprietary pin mappings are under NDA (Non-Disclosure Agreement) for manufacturers, the 60-pin LGA layout typically follows this logic:
-
RF Inputs (RFin): Receives the low-power signal from the SDR (Software Defined Radio) transceiver.
-
RF Outputs (RFout): Sends the boosted signal to the Antenna Switch Module (ASM).
-
VCC/VBATT: Primary power lines.
-
VCTRL/MIPI: Clock (SCLK) and Data (SDATA) lines for digital communication.
-
GND: Thermal and electrical grounding pins (usually located in the center of the chip for heat dissipation).
5. Role in the 5G Ecosystem
The QPA8687 is essential for Band n77/n78 (3.5GHz) and Band n41 (2.5GHz) support. These are the “sweet spot” frequencies for global 5G, offering a balance between high speed and decent range. Without an IC like the QPA8687, a mobile phone would struggle to maintain a stable 5G connection indoors or at the edge of a cell’s coverage.
6. Common Issues and Repair Context
In the mobile repair industry, the QPA8687 is often targeted when a device shows “No Service” or “Searching” specifically on 5G/4G High Bands, while 2G/3G still works.
-
Heat Stress: Because it handles high power, it is prone to solder fatigue.
-
Short Circuits: A failure in the Envelope Tracker can send excessive voltage to the QPA8687, causing it to “short” and prevent the phone from booting.
Summary of Application
The QPA8687 is a high-performance workhorse of the Qualcomm RFFE suite. By combining GaAs (Gallium Arsenide) for high-frequency amplification with CMOS for digital control, it enables the high-speed uploads promised by 5G technology.
