QPM 5577-002 Mobile Phone IC
Designed for Superior Mobile Efficiency
The QPM 5577-002 Mobile Phone IC is engineered to optimize your smartphone’s performance. Whether you’re streaming, gaming, or multitasking, this powerful IC ensures smooth operations with minimal energy consumption. QPM 5577-002 Mobile Phone IC
Compact and Reliable for Modern Devices
Built for compact configurations, the QPM 5577-002 integrates seamlessly into your device’s system, offering exceptional reliability and durability. Its advanced design aligns with evolving technology demands, making it a must-have component. QPM 5577-002 Mobile Phone IC
Power Optimized, High-Performance Solution
This IC is ideal for anyone looking to boost device efficiency while maintaining practical power usage. Compatible and versatile, the QPM 5577-002 brings the best in innovation and utility to modern mobile phones. QPM 5577-002 Mobile Phone IC

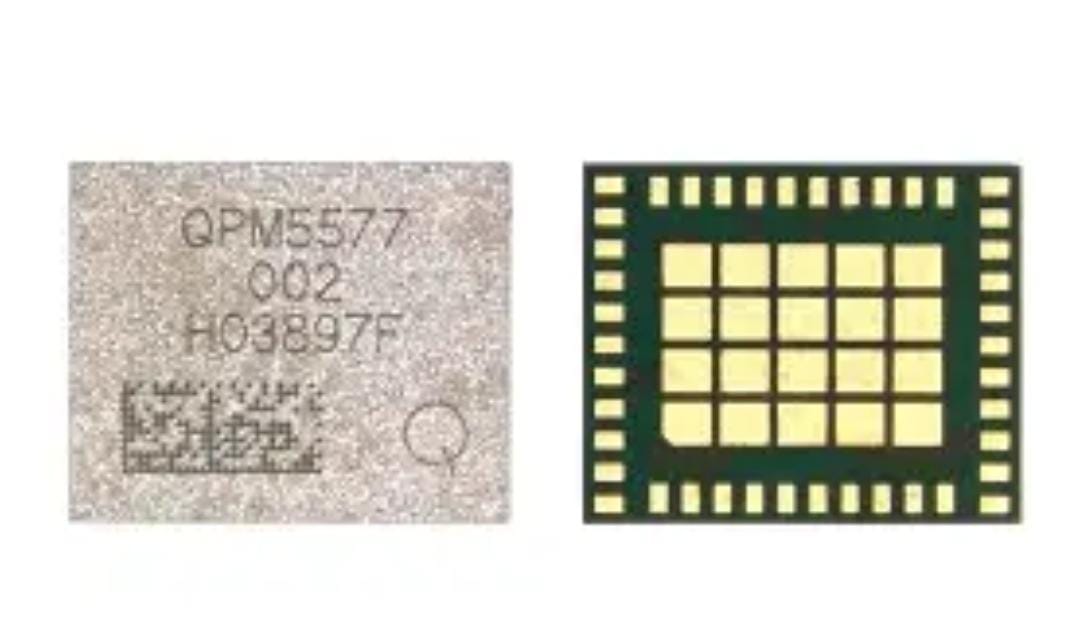

The QPM 5577-002 is a sophisticated Radio Frequency (RF) Power Amplifier (PA) Module manufactured by Qualcomm. It is a critical component in the RF front-end (RFFE) of modern 5G-enabled smartphones, designed to handle signal amplification and network connectivity across various frequency bands. QPM 5577-002 Mobile Phone IC
The following data provides a comprehensive breakdown of its technical specifications, construction, and application.
1. Technical Specifications Overview
The QPM 5577 series is primarily utilized for its high gain and power efficiency in 5G NR (New Radio) environments.
| Parameter | Specification Detail |
| Manufacturer | Qualcomm |
| Part Number | QPM 5577-002 |
| Type | RF Front-End Power Amplifier (PA) / Signal Module |
| Technology Support | 5G NR (Sub-6 GHz), 4G LTE, WCDMA |
| Operating Frequency | 2.5 GHz to 4.2 GHz (Optimized for 5G Mid-band) |
| Maximum Output Power | Approx. $33 \text{ dBm}$ |
| Power Gain | Approx. $32 \text{ dB}$ |
| Power Added Efficiency (PAE) | Approx. $45\%$ |
| Package Type | LGA-62B (Land Grid Array) |
| Pin Count | 62 Pins |
| Supply Voltage ($V_{cc}$) | $1.0\text{V}$ to $6.0\text{V}$ (Application dependent) |
| Dissipation Power | $0.6\text{W}$ (Typical idling/low-load) |
| Operating Temperature | Commercial Grade ($0^\circ\text{C}$ to $85^\circ\text{C}$ typical) |
2. Structural & Mechanical Details
The physical architecture of the IC is engineered to fit the high-density requirements of modern mobile PCB designs.
-
Packaging: It utilizes a Land Grid Array (LGA) format. This is preferred over BGA (Ball Grid Array) in some RF applications for its lower profile and superior thermal dissipation properties.
-
Thermal Management: The 62-pin layout includes dedicated thermal ground pads. This is essential because RF amplifiers generate significant heat during high-speed 5G data uploads.
-
Dimensions: While specific micron-level measurements are proprietary, it is characterized as a “compact footprint” module suitable for high-tier slim smartphones.
3. Key Features & Functionality
The QPM 5577-002 is not just a simple transistor; it is an integrated module that performs several complex tasks:
-
High Linearity: It maintains signal integrity even when using complex modulation schemes like 256-QAM, which is vital for achieving the multi-gigabit speeds promised by 5G.
-
Broadband Performance: Its ability to cover the $2.5\text{ GHz}$ to $4.2\text{ GHz}$ range makes it a “global” component, compatible with major 5G bands (like n41, n77, and n78) used across the US, Europe, and Asia.
-
Signal Boosting: It takes the low-power RF signal from the transceiver (like a Qualcomm WTR series) and amplifies it to a level powerful enough to reach a cellular base station several kilometers away.
4. Device Compatibility
This IC is widely found in “Flagship Killer” and high-end devices powered by Qualcomm Snapdragon chipsets. Common devices include:
-
Xiaomi/Redmi: Mi 11 Youth, Redmi K40 Pro, Mi 11X Pro. QPM 5577-002 Mobile Phone IC
-
Motorola: Moto Edge 20 Pro, Moto G 5G, One 5G Ace. QPM 5577-002 Mobile Phone IC
-
Oppo/Vivo: Find X3 Pro, Vivo Y31S.
5. Engineering & Repair Considerations
Warning: The QPM 5577-002 is a moisture-sensitive component. Repairs involving this IC require professional SMD (Surface Mount Device) rework stations. QPM 5577-002 Mobile Phone IC
-
Soldering: Due to the LGA package, “reballing” is not required like BGA, but precise solder paste application and a strict temperature profile (usually peaking at $260^\circ\text{C}$ for lead-free) are mandatory to avoid delamination. QPM 5577-002 Mobile Phone IC
-
Diagnostics: If a phone shows “No Service” or “Searching” despite a valid SIM, and the baseband firmware is intact, the QPM 5577-002 is often the primary suspect for hardware failure. QPM 5577-002 Mobile Phone IC
6. Summary Table for Comparison
| Feature | QPM 5577-002 Performance |
| Reliability | High (Advanced Thermal Management) |
| Network Tier | Mid-to-High Tier 5G Support |
| Efficiency | Excellent (Reduces battery drain during 5G use) |
| Integration | High (Includes filtering and PA in one module) |
