RT 5033 Mobile Phone IC
Enhance Your Mobile Device with RT 5033 IC

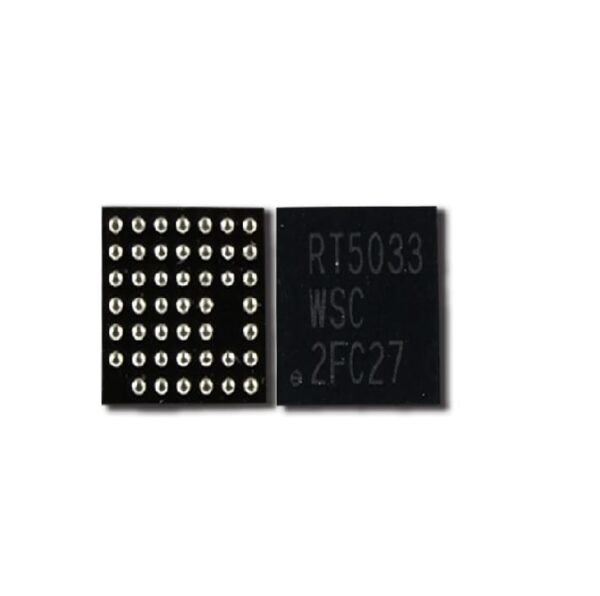

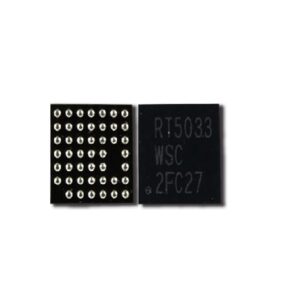

The RT 5033 Mobile Phone IC is designed to bring unmatched efficiency and performance to your mobile device. Tackling critical functionalities, this high-quality integrated circuit ensures optimal power management, delivering seamless operation for your device. RT 5033 Mobile Phone IC
Reliable Technology for Today’s Demands
Built with cutting-edge technology, the RT 5033 IC is a solution for improved device stability. Whether for boosting battery management or supporting processor functions, this IC delivers precision and reliability you can count on. RT 5033 Mobile Phone IC
Perfect for a Variety of Applications
The RT 5033 Mobile Phone IC is versatile, making it suitable for a broad range of devices and applications. Its compact design and energy efficiency make it an essential component for modern mobile device manufacturers and technicians alike. RT 5033 Mobile Phone IC
The RT5033 is a highly versatile and compact integrated circuit (IC) primarily used in Samsung mobile devices. Manufactured by Richtek Technology Corporation, it is often categorized as a Power Management Integrated Circuit (PMIC) or an Audio IC, depending on the specific subsystem it manages within the device. RT 5033 Mobile Phone IC
In many Samsung models like the Galaxy A5, J4, and J6, the RT5033 acts as a multi-functional controller that handles power regulation for audio processing units, ensuring high-fidelity sound and efficient energy consumption. RT 5033 Mobile Phone IC
RT5033 Technical Specifications
The following table outlines the key electrical and physical specifications of the RT5033 IC based on manufacturer and industry standard data. RT 5033 Mobile Phone IC
| Feature | Specification Details |
| Model Number | RT5033 / RT5033A / RT5033WSC |
| Manufacturer | Richtek Technology Corporation |
| Primary Function | Power Management / Audio Power Controller |
| Input Voltage Range | $2.5\text{V}$ to $5.5\text{V}$ (Typical Li-ion range) |
| Output Type | Multi-channel DC-DC / LDO Outputs |
| Operating Frequency | $50\text{Hz}$ / High-frequency PWM for DC-DC |
| Pin Count | 6-Pin (Power variant) to 25+ Ball (BGA Audio variant) |
| Package Type | WLCSP (Wafer Level Chip Scale Package) / BGA |
| Compatibility | Samsung Galaxy A3, A5, J4, J6, Core Prime |
| Signal-to-Noise Ratio | High (optimized for distortion-free audio) |
| Safety Features | Thermal Shutdown, Over-Current Protection (OCP) |
| Weight | Approximately $0.03\text{g}$ |
Key Features and Functionality
The RT5033 is designed to integrate several discrete components into a single silicon die, saving valuable PCB space in modern smartphones. RT 5033 Mobile Phone IC
1. Power Management Efficiency
The IC utilizes a high-efficiency step-down converter system. It is designed to take the variable voltage from a Lithium-ion battery (typically $3.7\text{V}$ to $4.2\text{V}$) and regulate it into stable rails for the application processor and audio codecs.
2. Audio Subsystem Support
While often labeled a “Power IC,” its specific role in the Samsung “A” and “J” series is to power the Audio Codec. It provides the clean, low-noise power necessary to drive the ear speaker and loudspeaker without introducing electronic hiss or distortion.
3. Protection Mechanisms
-
Over-Voltage Protection (OVP): Prevents the IC and downstream components from damage if the charging voltage spikes.
-
Thermal Management: Automatically throttles or shuts down if the temperature exceeds safe operating limits (typically $150\text{°C}$ junction temperature).
Device Compatibility List
The RT5033 is widely used across various mid-range and budget smartphones. If your device has no sound or fails to power on after a charging surge, this IC is a primary suspect for repair.
| Brand | Compatible Models |
| Samsung | Galaxy A3 (A3000), A5 (A5000), J4 (2018), J6, G530H, G355H |
| Others | Various tablets and EPOS (Electronic Point of Sale) systems |
Repair and Installation Insights
Note: The RT5033 is a Surface Mount Device (SMD). Replacing it requires professional-grade micro-soldering tools.
-
Solder Balls: The IC usually comes in a BGA (Ball Grid Array) format. It requires a specific stencil for reballing if you are reusing an old chip.
-
Orientation: Look for the small dot (Pin 1 marker) on the surface of the IC to ensure correct alignment on the motherboard.
-
Heat Sensitivity: Excessive heat during installation can delaminate the internal layers of the chip. A hot air station temperature of $350\text{°C}$ to $380\text{°C}$ is generally recommended for removal/installation.
Official Website : https://gaffarmarketdelhi.com
