S 527S Mobile Phone IC
Seamless Performance for Mobile Phones
The S 527S Mobile Phone IC is designed to deliver optimal performance and efficiency for modern mobile phones. With advanced technology, it ensures seamless operation, catering to the needs of both end-users and manufacturers. S 527S Mobile Phone IC
High-Quality and Durable Build
Built using premium-grade materials, the S 527S IC is built for longevity and durability. It is compatible with a wide range of mobile devices, providing a reliable solution for both repairs and upgrades. S 527S Mobile Phone IC
Optimized for Energy Efficiency
Engineered to minimize power consumption, the S 527S IC supports extended battery life without compromising on performance. Its compact design enables easy integration into your devices for a hassle-free experience. S 527S Mobile Phone IC

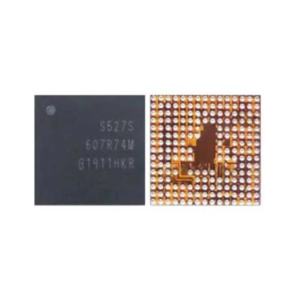

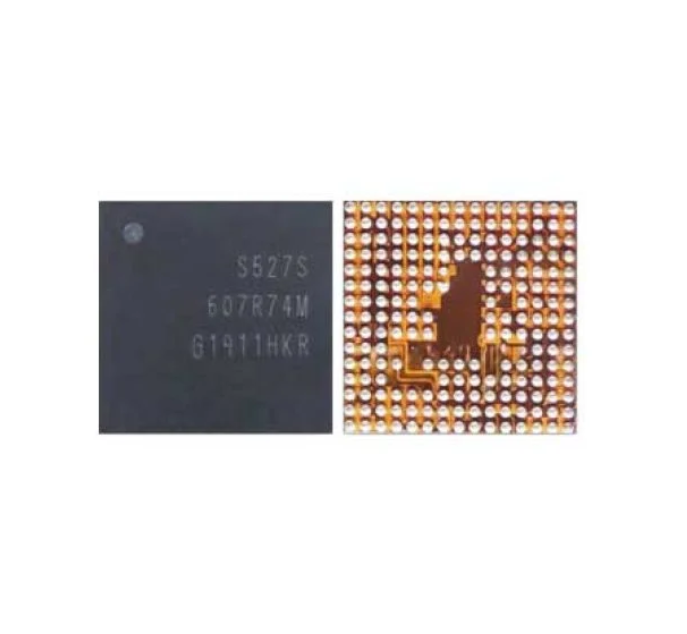

The S527S is a specialized Power Management Integrated Circuit (PMIC) primarily used in various Samsung Galaxy A-series smartphones. It serves as a vital component on the motherboard, responsible for regulating voltage and managing power distribution to critical hardware like the processor and display. S 527S Mobile Phone IC
Detailed Specifications
The following table outlines the technical specifications and operational parameters for the S527S IC:
| Feature | Specification Details |
| Model Number | S527S |
| Component Type | Power Management IC (PMIC / PMU) |
| Package Type | BGA (Ball Grid Array) / SMD |
| Number of Pins | 40-Pin configuration |
| Input Voltage Range | 2.5V – 5.5V |
| Regulated Output | 5V (Stable DC-DC conversion) |
| Output Channels | 6 Independent Outputs |
| Core Functions | Charging management, voltage regulation, power distribution |
| Safety Features | Overvoltage protection, thermal stability, battery protection |
| Material | High-grade semiconductor |
Compatible Devices
The S527S IC is a common replacement part for the Samsung Galaxy A-series. Technicians typically use this chip to resolve issues where a phone fails to power on or has severe charging malfunctions.
-
Samsung Galaxy A10 (SM-A105F, A105G, A105M)
-
Samsung Galaxy A20 (A205U, A205F, A205G)
-
Samsung Galaxy A30/A30s (A305F, A305FN)
-
Samsung Galaxy A40 (A405F)
-
Samsung Galaxy A50 (A505F, A505U, A505G)
-
Samsung Galaxy A70 (A705F, A705GM, A7050)
Key Applications & Performance
-
Stable Voltage Regulation: It ensures that sensitive internal components receive a consistent voltage, preventing logic board failure during high-intensity tasks. S 527S Mobile Phone IC
-
Battery Health: The IC manages the charging and discharging cycles, protecting the lithium-ion battery from overheating or overcharging. S 527S Mobile Phone IC
-
Device Recovery: Replacing a faulty S527S is a standard procedure for fixing “dead” phones that show no signs of life due to power rail failures. S 527S Mobile Phone IC
The S527S is a specialized Power Management Integrated Circuit (PMIC) predominantly used in Samsung Galaxy devices. It acts as the “heart” of the device’s electrical system, regulating voltage from the battery and charger to ensure that sensitive components—like the processor (CPU), RAM, and display—receive stable, clean power. S 527S Mobile Phone IC
Core Overview
In the repair industry, the S527S is widely recognized as a “Big Power IC” (Main PMIC). It is frequently sought after as a replacement part for phones that fail to power on, have “stuck” charging issues (e.g., won’t go past 1%), or experience rapid battery drain.
Technical Specifications: S527S IC
The following table summarizes the known technical parameters based on hardware datasheets and technician diagnostic data.
Device Compatibility
The S527S is a versatile chip found across several generations of the Samsung Galaxy A and S series. It is most commonly associated with the following models:
-
Galaxy A Series: A10, A20, A30, A30S, A40, A50, A70.
-
Galaxy S Series: S9, S9+, S10, S10+.
-
Galaxy Note Series: Note 10.
Key Functions & Roles
The S527S is not just a simple switch; it performs complex tasks to maintain device health:
-
Voltage Regulation: Converts the raw battery voltage (roughly $3.8V$) into specific voltages required by the hardware, such as $1.1V$ for the CPU or $1.8V$ for the RAM.
-
Charging Logic: Manages the handshake between the USB-C port and the battery. It detects if a “Fast Charger” is connected and switches between standard and high-speed charging modes.
-
Power Sequencing: Ensures that when you press the power button, the phone’s components turn on in the correct order (e.g., CPU first, then Display) to prevent system crashes.
-
Protection Circuits: Includes Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP) to prevent the phone from “frying” if a cheap, non-certified charger is used.
Troubleshooting & Common Failures
Technicians often replace the S527S when the following symptoms occur:
-
Dead Phone: The device shows no signs of life and draws $0.00A$ on a USB power meter.
-
Charging Stuck at 1%: The phone recognizes the charger but the percentage never increases, often due to a failure in the IC’s “Gas Gauge” logic.
-
Short Circuit: The device becomes very hot near the CPU area immediately after connecting the battery.
-
Slow Charging: The IC fails to negotiate the higher voltage needed for fast charging, defaulting to a very slow $0.5A$ draw.
Note for Technicians: Replacing the S527S requires professional BGA soldering tools. A hot air station should typically be set to approximately 260°C – 280°C for removal, depending on the type of solder (leaded vs. lead-free) used on the board.
