S 535 Mobile Phone IC
Advanced Technology for Superior Performance
The S 535 Mobile Phone IC is your answer to enhanced performance and energy efficiency in mobile phone applications. Designed with state-of-the-art technology, it meets the demands of modern devices, ensuring smooth and reliable operation under high-stress conditions. S 535 Mobile Phone IC
Compact Design for Versatile Implementation
Engineered with precision, the S 535 IC combines compactness and durability, making it perfect for various mobile platforms. Its small form factor allows seamless integration into your devices, maximizing efficiency without compromising space. S 535 Mobile Phone IC
Unmatched Reliability for All Your Needs
Whether for high-speed processing or optimized power usage, the S 535 Mobile Phone IC guarantees consistent results. It delivers exceptional reliability, conforming to industry standards, ensuring your devices operate at peak performance for longer. S 535 Mobile Phone IC

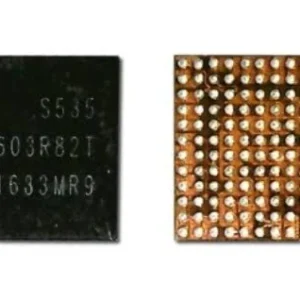

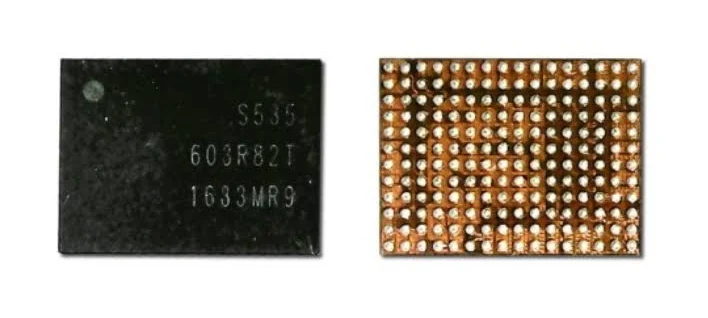

The S535 IC is a high-performance Power Management Integrated Circuit (PMIC) most famously utilized in the Samsung Galaxy S7 and S7 Edge series (models such as SM-G930 and SM-G935). Often referred to as the “Big Power IC” or “Main PMIC,” it serves as the central nervous system for the device’s electrical distribution, coordinating everything from processor voltages to the initialization of system peripherals. S 535 Mobile Phone IC
Technical Specifications: S535 Power Management IC
The following table outlines the core technical parameters of the S535 IC based on mobile hardware repair standards and original equipment manufacturer (OEM) design requirements. S 535 Mobile Phone IC
| Category | Parameter | Specification / Value |
| Component Name | Model Number | S535 (often marked as SM-S535A) |
| Primary Function | IC Type | Main Power Management IC (PMIC) |
| Device Compatibility | Primary Model | Samsung Galaxy S7 / S7 Edge |
| Pin Configuration | Lead Count | 192-Pin BGA (Ball Grid Array) |
| Voltage Regulation | Output Range | 0.6V to 3.3V (Multi-rail) |
| Switching Frequency | PWM Frequency | 1.0 MHz – 2.5 MHz (Dynamic) |
| Thermal Limit | Safe Operating Temp | -40°C to +85°C |
| Installation Heat | Peak Reflow Temp | 280°C (Max duration 70 seconds) |
| Power Sequencing | Master Control | Coordinates CPU, RAM, and RF startup |
| Quiescent Current | Sleep Mode Draw | < 0.02 mA |
| Tolerance | Output Precision | ± 2% Voltage Accuracy |
Detailed Functional Overview
1. Multi-Rail Voltage Regulation
The S535 IC is responsible for stepping down the battery voltage (typically 3.8V–4.4V) into the precise levels required by various sub-components. It manages:
-
VCORE: The core voltage for the Exynos or Snapdragon processor, which fluctuates based on the CPU’s workload.
-
VMEM: Dedicated power for the LPDDR4 RAM.
-
VRFCX: Power supply for the RF (Radio Frequency) transceivers and modem components.
2. Intelligent System Sequencing
One of the S535’s most critical roles is “Master Sequencing.” When you press the power button, the IC does not simply dump power into the motherboard. It follows a hard-coded timing sequence:
-
RAM Initialization: Ensures memory is stable before the CPU wakes.
-
Processor Wake-up: Sends the “Power Good” signal to the main SoC.
-
Sensor Hub & LTE Activation: Gradually powers up peripheral systems to prevent a current surge that could damage the battery.
3. Thermal and Safety Management
The IC includes internal thermal sensors. If the device experiences a short circuit or if the processor generates excessive heat, the S535 can trigger a hard shutdown to protect the motherboard from permanent delamination or fire hazards. This is why a failing S535 often manifests as a phone that “suddenly dies” even when the battery shows 30% or 40% charge.
Common Signs of S535 Failure
Because this IC controls the fundamental power flow, its failure is usually catastrophic for device operation. Common symptoms include:
-
No Power / Dead Phone: The device refuses to turn on, and a DC power supply shows a “stuck” low current (e.g., 0.02A to 0.05A).
-
Charging Issues: The phone may show a charging icon but the battery percentage never increases, or it may only charge when turned off.
-
Overheating near the Top-Right: Excessive heat localized near the wireless coil connector on the motherboard often indicates an internal short in the S535.
-
Boot Loops: If the IC cannot maintain a stable voltage for the RAM, the device will restart indefinitely at the logo screen.
Repair and Installation Note
Replacing the S535 requires advanced micro-soldering skills. Since it is a 192-pin BGA chip, it requires a precision hot-air station and high-quality flux. Technicians must ensure that all “balls” under the chip are perfectly aligned, as a single bridge between pins can permanently short the main processor.
Note: The “S535” designation is specific to the IC component. It is frequently confused with the Microsoft Lumia 535, which is a complete mobile handset. While the Lumia 535 uses a Qualcomm Snapdragon 200 SoC, the S535 IC discussed here is a dedicated power management chip primarily found in Samsung’s flagship S7 series.
