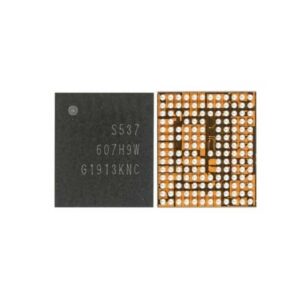

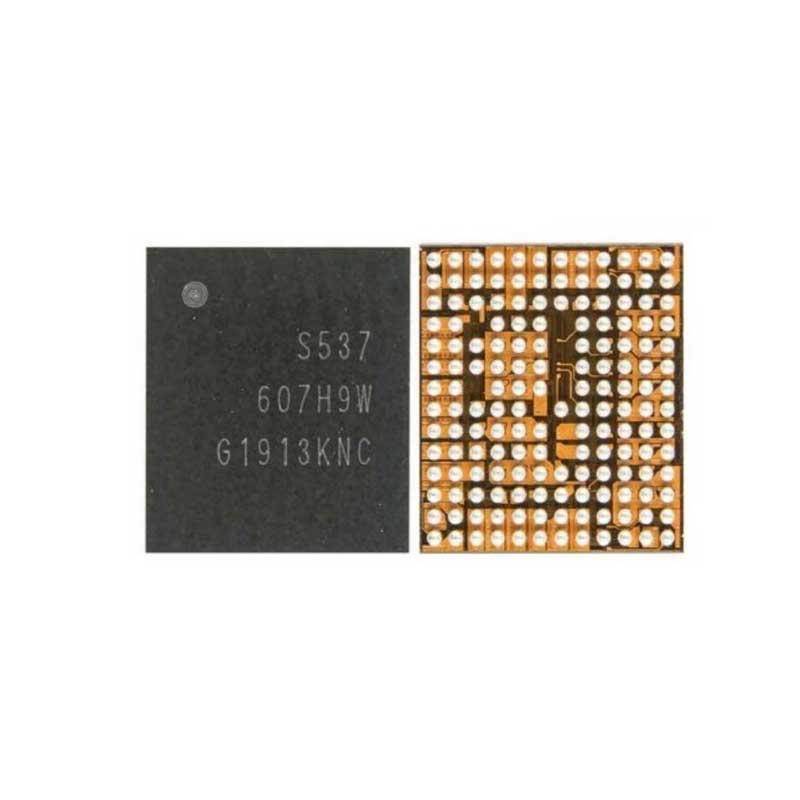

S 537 Mobile Phone IC
Elevate Your Device with S 537 Mobile Phone IC
The S 537 Mobile Phone IC is a cutting-edge component designed to optimize the performance of your mobile devices. Manufactured with precision and superior quality, it ensures improved functionality and energy efficiency, making it an ideal choice for both repairs and upgrades. S 537 Mobile Phone IC
Advanced Technology for Seamless Integration
This high-performance IC stands out with its advanced design, ensuring seamless integration into a wide array of mobile devices. Say goodbye to frequent maintenance issues—this IC is built to last, delivering durable and reliable solutions for your technological needs. S 537 Mobile Phone IC
Perfect Solution for Technicians and Enthusiasts
Whether you’re a professional technician or an advanced enthusiast, the S 537 Mobile Phone IC streamlines your projects with its user-friendly design. It’s your go-to choice for improving device performance without compromising on quality or longevity. S 537 Mobile Phone IC
The S537 Integrated Circuit (IC) is a critical Power Management component specifically engineered for modern Samsung smartphones. In technical circles, it is often identified as a Power Supervisor or Secondary Power Management IC (PMIC). Its primary role is to ensure stable voltage regulation and thermal safety across the motherboard’s most demanding subsystems. S 537 Mobile Phone IC
Below are the comprehensive technical specifications and details for the S537 IC. S 537 Mobile Phone IC
Technical Specifications: S537 Power IC
| Feature | Technical Specification |
| Component Type | Power Management IC (PMIC) / Power Supervisor |
| Model Number | S537 (Alternate Part No: 1203-009224) |
| Package Type | BGA (Ball Grid Array) |
| Pin Count | 40 Pins (Commonly used 0.4mm pitch) |
| Input Voltage Range | $3.7\text{V}$ to $4.5\text{V}$ (Nominal battery voltage) |
| Output Channels | 6 Regulated Outputs (LDO and Buck converters) |
| Main Function | Voltage regulation, Overcurrent Protection (OCP), Thermal monitoring |
| Material | High-grade Silicon with Lead-free Solder Balls |
| Weight | ~0.01 kg (Individual chip) |
| Operating Temperature | $-25^{\circ}\text{C}$ to $+85^{\circ}\text{C}$ |
| Compatibility | Samsung Galaxy A-series (A10, A30, A50, A70, A51, A52) |
Core Functions and Applications
The S537 IC acts as a “governor” for electrical flow within the device. Unlike the primary PMIC which handles the main power-on sequence, the S537 typically manages specific high-drain or sensitive auxiliary rails. S 537 Mobile Phone IC
1. Power Supervision
It monitors the “health” of the incoming current from the battery and the charging port. If the IC detects a spike in voltage or a short circuit in the downstream components (like the CPU or Display driver), it triggers an Overcurrent Protection (OCP) lockout to prevent the motherboard from burning. S 537 Mobile Phone IC
2. Thermal Management
Modern Samsung devices (like the A50 and A70) generate significant heat during fast charging or gaming. The S537 contains internal thermal sensors that communicate with the SoC (System on Chip) to throttle power if temperatures exceed safe operating limits.
3. Voltage Step-Down (Buck Conversion)
The IC takes the raw battery voltage and converts it into precise lower voltages required by different modules:
-
Memory (LPDDR4x): Typically $1.1\text{V}$ or $0.6\text{V}$.
-
Modem/Baseband: For stable network connectivity.
-
Sensor Hub: For low-power always-on tracking.
Device Compatibility List
The S537 is a versatile chip found across several generations of the Samsung Galaxy lineup, particularly within the mid-range and premium A-series:
-
Samsung Galaxy A-Series: A10, A20, A30, A30s, A40, A50, A50s, A60, A70, A80.
-
Samsung Galaxy M-Series: M21, M30, M30s, M31.
-
Samsung Galaxy S-Series: Some variants of the S10 and S10 Plus (region-dependent).
-
Tablets: Galaxy Tab S6 Lite (Wi-Fi and LTE versions).
Common Faults and Symptoms
When the S537 IC fails, it often leads to “Sudden Death Syndrome” in mobile devices. Technicians typically look for the following symptoms to diagnose a faulty S537:
-
Stuck on Logo: The device attempts to boot but fails because a power rail managed by the S537 isn’t reaching its target voltage.
-
Fake Charging: The phone shows the charging icon but the battery percentage does not increase, or it drains while plugged in.
-
Dead Set (No Power): A complete short inside the S537 will prevent the device from pulling any current from the battery.
-
Excessive Heat: Localized hotspots on the motherboard, specifically near the SIM tray or charging port area, often indicate an internal leak in the IC.
Installation and Repair Notes
Note: The S537 is a BGA (Ball Grid Array) component. Replacing it requires professional-grade micro-soldering tools and expertise.
-
Reballing: If the IC is being reused, a specific S537 stencil is required to apply the correct size of solder balls.
-
Heat Profile: Use a hot air station set to approximately 330°C – 350°C with low airflow to avoid “popcorning” the chip or blowing away surrounding SMD components.
-
Orientation: Ensure the “Dot” (Pin 1 marker) matches the motherboard’s silkscreen orientation. Installing it backward will result in an immediate short circuit.
