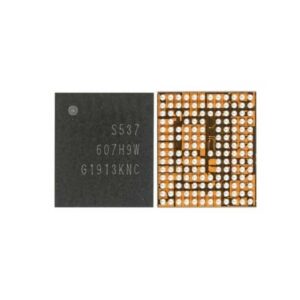

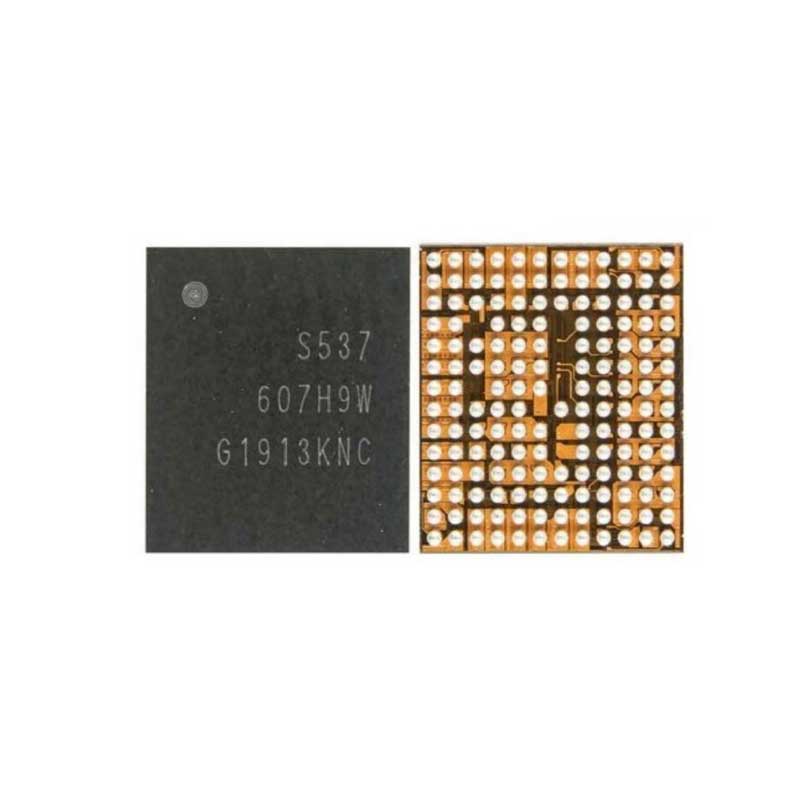

S 537 Original Mobile Phone IC
Superior Quality S 537 Mobile Phone IC
Upgrade your mobile device with the S 537 Original Mobile Phone IC. Designed to deliver exceptional performance and reliability, this integrated circuit ensures a seamless experience for your mobile phone. Crafted with precision, it is the ideal replacement part for restoring your phone’s peak efficiency. S 537 Original Mobile Phone IC
Reliable and Durable Design
The S 537 mobile phone IC stands out for its durability and robust performance. Its original components ensure compatibility with your device, safeguarding it from potential harm while maintaining the highest quality standards. Trust in our product to meet your technical needs effortlessly. S 537 Original Mobile Phone IC
Why Choose S 537 for Your Device?
Whether you’re a technician or a DIY enthusiast, the S 537 Original Mobile Phone IC offers the perfect balance of quality and affordability. Its reliable engineering promises excellent performance enhancements, making it the go-to option for efficient mobile repairs. S 537 Original Mobile Phone IC
The S537 Power Management Integrated Circuit (PMIC) is a critical hardware component found primarily in modern Samsung Galaxy smartphones. It is responsible for regulating, distributing, and managing the electrical power from the battery to various sub-systems of the mobile device, such as the CPU, display, and charging circuits. S 537 Original Mobile Phone IC
Below is the comprehensive technical breakdown and specification guide for the S537 IC. S 537 Original Mobile Phone IC
1. Technical Specifications Overview
The S537 is a high-performance PMIC designed for efficiency and thermal stability. In the repair industry, it is often cross-referenced with the part number S2MPU09X01.
| Specification Parameter | Technical Detail |
| Model Number | S537 / S2MPU09X01 |
| Primary Function | Power Management & Distribution (PMIC) |
| Package Type | BGA (Ball Grid Array) |
| Pin/Ball Count | 40 Pins (Primary Grid) |
| Input Voltage Range | 3.4V – 4.4V (Battery Nominal) |
| Output Rails | Multiple (Buck/LDO) for CPU, GPU, and RAM |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +75°C |
| Material Composition | Silicon-based semiconductor with lead-free solder balls |
| Compatible Brands | Samsung Galaxy Series |
2. Device Compatibility
The S537 is a versatile chip used across several mid-range and flagship Samsung models. Its primary role is to stabilize the motherboard’s power rails.
Supported Samsung Models:
-
Galaxy A Series: A10, A30, A50 (A505F), A51, A60, A70.
-
Galaxy S Series: S10, S10 Plus (International/Exynos variants).
-
Galaxy M Series: M30, M31 (Selected regional variants).
3. Key Functional Features
The S537 IC serves as the “beating heart” of the phone’s power system. If this chip fails, the device typically enters a “Dead” state.
-
Voltage Regulation: Converts raw battery voltage into precise levels (e.g., 1.1V, 1.8V, 3.3V) required by different components.
-
Thermal Protection: Includes internal sensors to shut down power delivery if the phone overheats, preventing motherboard damage.
-
Battery Management: Assists the charging IC in monitoring battery health and charge cycles.
-
Deep Sleep Control: Manages the power-saving modes of the processor to extend battery life when the screen is off.
4. Common Symptoms of a Faulty S537 IC
Technicians often replace the S537 when the following issues are diagnosed through a DC Power Supply:
-
Dead Phone: The device shows no response to the power button and draws 0.00A or a very low, stuck current (e.g., 0.02A).
-
Short Circuit: The phone’s motherboard gets hot immediately when the battery is connected.
-
Charging Failure: The phone detects the charger but the battery percentage does not increase (Fake Charging).
-
Auto-Restart: The device gets stuck in a boot loop due to unstable voltage being sent to the CPU. S 537 Original Mobile Phone IC
5. Installation & Repair Guidelines
The S537 is a BGA-style chip, meaning the pins are tiny solder balls located underneath the component. Replacing it requires professional tools and expertise. S 537 Original Mobile Phone IC
Note for Technicians: > * Reballing: Most “New” S537 chips come pre-balled. If using a salvaged chip, a specialized S537/Samsung A50 stencil is required. S 537 Original Mobile Phone IC
Heat Management: Use a hot air station set to approximately 330°C – 350°C with a low air flow to avoid “popcorning” the chip or damaging surrounding components like the CPU. S 537 Original Mobile Phone IC
Orientation: Ensure the “Dot” (Pin 1 indicator) on the IC matches the marking on the motherboard before soldering. S 537 Original Mobile Phone IC
6. Comparison: S537 vs. SM5713
In many Samsung devices (like the A50), the S537 works alongside the SM5713. While they are both power ICs, their roles differ:
| Feature | S537 (Main PMIC) | SM5713 (Sub PMIC) |
| Primary Role | Main system power & CPU rails | Charging & Audio/Display power |
| Failure Result | Total Power Loss (Dead) | Charging or Display issues |
| Complexity | High (Critical timing) | Moderate |
Summary
The S537 Original Mobile Phone IC is an indispensable part of the Samsung power architecture. Because it handles high-current loads and critical voltage regulation for the Exynos and Snapdragon chipsets, it is one of the most frequently replaced components in professional mobile repair. When purchasing a replacement, always ensure it is the “Original” grade to maintain the device’s thermal efficiency and battery longevity.
