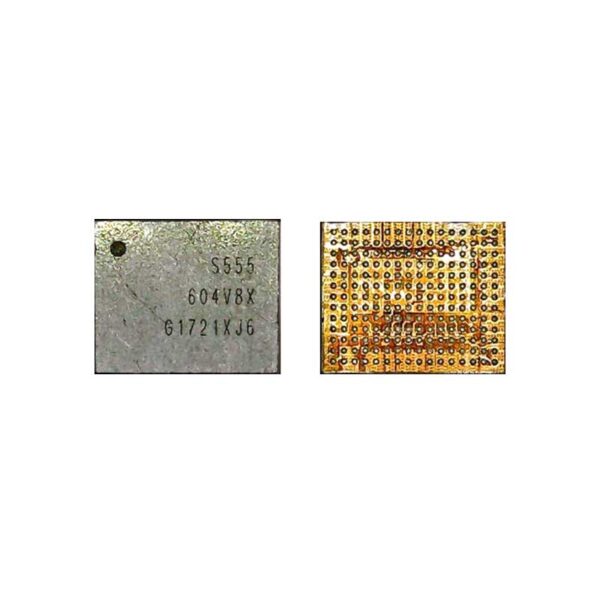

S 555 Mobile Phone IC
Powerful and Efficient Performance
The S 555 Mobile Phone IC is designed to deliver outstanding performance for your devices. Its efficient architecture ensures smooth operations, making it a critical component for modern mobile phones. S 555 Mobile Phone IC
High Durability and Compatibility
Built to last, the S 555 IC is crafted with high-quality materials that ensure durability under various conditions. Its compatibility with a wide range of smartphone models makes it a trusted choice for repairs and upgrades. S 555 Mobile Phone IC
Optimized for Energy Efficiency
Energy optimization is central to the design of the S 555 Mobile Phone IC. This ensures minimized power consumption, contributing to better battery life and the overall performance of mobile devices. Upgrade your hardware with confidence and precision. S 555 Mobile Phone IC
📱 S555 Mobile Phone IC: Comprehensive Specifications
The following table outlines the technical parameters, compatibility, and functional roles of the S555 Power IC. S 555 Mobile Phone IC
| Feature Category | Technical Specification / Detail |
| Component Name | S555 Power Management IC (PMIC) |
| Primary Function | System-wide Power Distribution & Voltage Regulation |
| Compatible Models | Samsung Galaxy S8 (G950), S8+ (G955), Note 8 |
| Secondary Compatibility | Some variants of Galaxy S7 / S7 Edge (model dependent) |
| Package Type | BGA (Ball Grid Array) |
| Pin Count | 40-Pin / Multi-terminal BGA (varies by OEM revision) |
| Input Voltage Range | $3.4\text{V}$ to $4.4\text{V}$ (Typical Li-ion battery range) |
| Output Rails | Multi-channel (Buck Converters & LDOs) |
| Application Areas | CPU Power, RAM Voltage, Display Driver Power, Charging Logic |
| Material Composition | High-durability Silicon-based Semiconductor |
| Operating Temperature | $-25\text{°C}$ to $+85\text{°C}$ (Standard mobile industrial grade) |
| Fault Symptoms | No Power, Charging Failures, Boot Loops, Thermal Overheating |
| Repair Difficulty | Level 3 (Professional Microsoldering required) |
🔍 Detailed Functional Breakdown
1. Power Distribution Strategy
The S555 acts as the “beating heart” of the phone’s logic board. It takes the raw voltage from the battery and converts it into several specific “rails.” For example, the CPU might require $1.1\text{V}$ for high-performance tasks, while the display driver might need $3.0\text{V}$. The S555 manages these transitions dynamically to save battery life. S 555 Mobile Phone IC
2. The BGA Architecture
Unlike hobbyist ICs with legs (DIP packages), the S555 uses BGA (Ball Grid Array). This means the connections are tiny spheres of solder underneath the chip. This allows for a much smaller footprint on the motherboard but requires a hot-air rework station and flux for replacement.
3. Thermal Protection
A critical specification of the S555 is its internal thermal shutdown mechanism. If the chip detects a short circuit in the display or a malfunction in the processor that pulls too much current, the IC will “trip” to prevent the motherboard from catching fire or permanent traces from melting.
4. Common Repair Use-Cases
Technicians frequently replace the S555 when a phone is “dead” (drawing $0\text{mA}$ or a “stuck” low amperage on a USB power meter). Because it sits between the charging port and the main processor, it is a high-traffic component and prone to failure from:
-
Using low-quality, non-certified chargers (Voltage spikes).
-
Water damage (corrosion under the BGA balls).
-
Physical drops (cracked solder joints).
🛠️ Replacement Guide (Brief)
If you are planning to replace this IC, ensure you have a Stencil for S555 for reballing. The recommended airflow temperature for removal is typically around 330°C to 350°C, depending on the thickness of the PCB and the type of solder (leaded vs. lead-free) used in the replacement.
It is important to distinguish this from the famous “555 Timer IC” used in general electronics; while they share a numerical designation, the S555 Mobile IC is a high-density, multi-rail power regulator designed for modern smartphones.
In the world of mobile hardware repair and component engineering, the S555 IC is recognized primarily as a Power Management Integrated Circuit (PMIC), most notably used within the Samsung Galaxy ecosystem (specifically the S8 and S8+ series)
