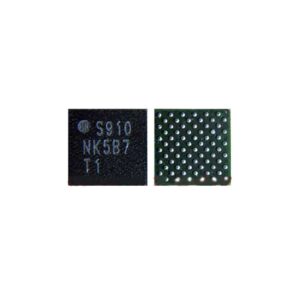

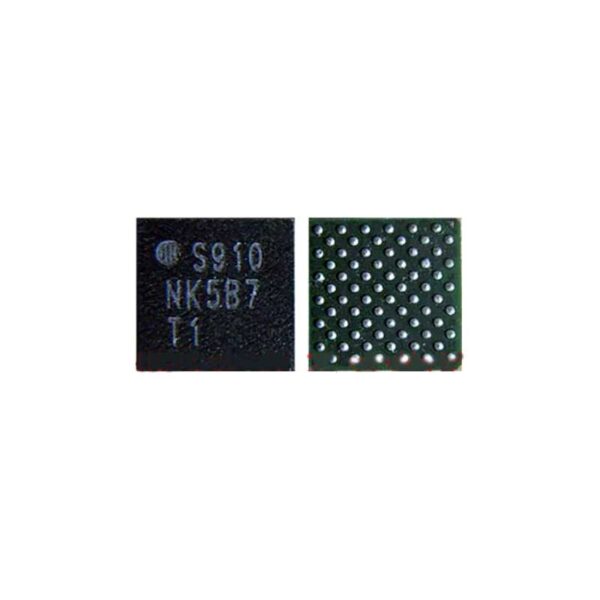

S 910 Mobile Phone IC
Unmatched Performance with the S 910 IC
The S 910 Mobile Phone IC is precision-engineered to ensure seamless operation and outstanding performance for your mobile devices. Crafted with cutting-edge technology, this IC offers reliable functionality and enhances device efficiency. S 910 Mobile Phone IC
Compact Design and Versatile Compatibility
Designed to fit into a wide range of mobile phones, the S 910 IC boasts a compact form factor that aligns perfectly with modern device engineering standards. Its versatility makes it a go-to solution for developers and engineers. S 910 Mobile Phone IC
Durability and Dependability
Built to last, the S 910 IC achieves durability without compromising on quality. It is rigorously tested to provide consistent results, making it an essential component for both new builds and repairs. Trust the S 910 IC for dependable, long-lasting performance. S 910 Mobile Phone IC
In the mobile repair and electronics industry, the S910 IC is widely recognized as a critical Intermediate Frequency (IF) Integrated Circuit, primarily found in Samsung smartphones. It acts as a bridge between the radio frequency (RF) signals received by the antenna and the digital signals processed by the baseband processor. S 910 Mobile Phone IC
Below are the detailed specifications and technical details for the S910 Mobile Phone IC.
Technical Specifications: S910 IC
| Specification Category | Details |
| IC Name | S910 (often paired with S915 or S925 series) |
| Primary Function | Intermediate Frequency (IF) Processing / RF Management |
| Type | BGA (Ball Grid Array) Integrated Circuit |
| Common Application | Signal Filtering, Amplification, and Frequency Conversion |
| Compatibility | Samsung Galaxy J, A, and S series (e.g., J200, J710, S10) |
| Input Signal Range | Radio Frequency (GSM, LTE, WCDMA bands) |
| Connectivity Role | 2G/3G/4G Network Signal Stability |
| Operating Voltage | Typically 1.8V to 3.3V (Varies by host logic) |
| Form Factor | Small-scale surface mount component |
Functional Overview
The S910 IC is a “helper” chip within the RF front-end module. In modern mobile architecture, its role is pivotal for maintaining a stable network connection. Unlike the main CPU, which handles the OS, the S910 focuses on the physics of the signal: S 910 Mobile Phone IC
-
Signal Demodulation: It helps down-convert high-frequency airwaves into a lower frequency that the phone’s internal processor can understand. S 910 Mobile Phone IC
-
Network Switching: It assists in the smooth transition between different network bands (LTE to 3G, etc.).
-
Power Management: In some variants, it also regulates power distribution to the antenna modules to ensure efficient transmission without draining the battery.
Common Use Cases and Repairs
Technicians typically look for the S910 IC when a device exhibits the following symptoms:
-
“No Service” or “Searching” Errors: If the antenna is fine but the phone cannot lock onto a signal.
-
Weak Wi-Fi/Bluetooth: Since RF paths are often integrated, a failing IF chip can cause peripheral connectivity drops.
-
Signal Fluctuation: The phone shows bars but cannot make calls or transmit data.
Compatibility Table
The S910 is frequently interchangeable or used in conjunction with these models in Samsung’s lineup:
| Model Series | Specific Devices |
| Galaxy J Series | J200, J120F, J710 (J7 2016), J730F (J7 Pro) |
| Galaxy A Series | A320 (A3 2017), A520 (A5 2017), A720 (A7 2017) |
| Galaxy S Series | Galaxy S9, S9+, S10 (IF/RF Power Management paths) |
| Galaxy G Series | G610F (J7 Prime) |
Important Handling Notes
Because the S910 is a BGA (Ball Grid Array) chip, it requires professional tools for replacement:
-
Soldering: Requires a hot air rework station set to specific temperatures (typically between 320°C and 350°C depending on the solder type).
-
Reballing: If the chip is being reused, a specialized stencil for the S910 pattern is necessary to apply new solder balls.
-
Sensitivity: This IC is highly sensitive to Static Discharge (ESD) and moisture. It should be stored in anti-static packaging.
Note: Always verify the specific part number on your motherboard before ordering a replacement, as some regional variants of the same phone model may use different RF IC configurations.
