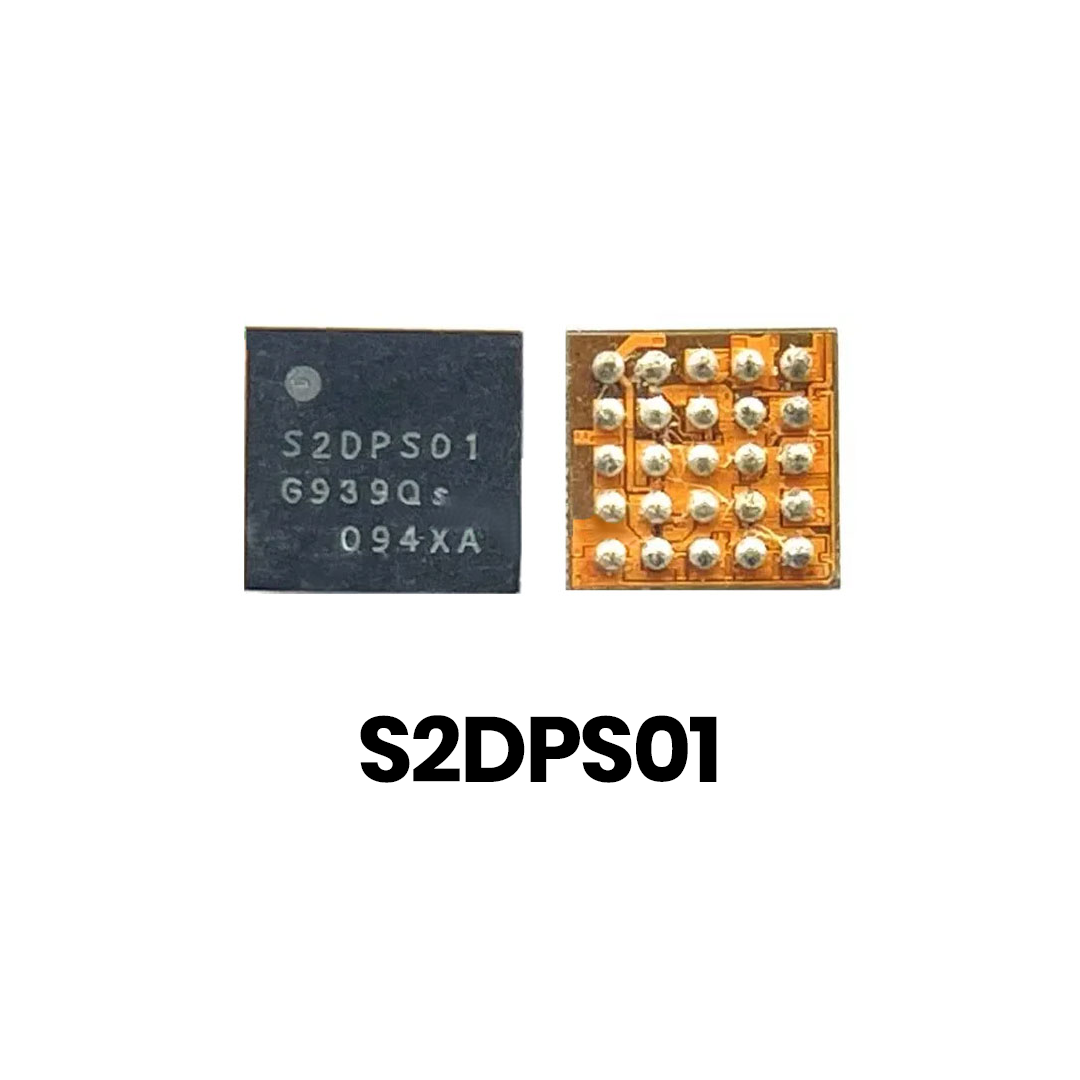

S2DPS01 Mobile Phone IC
Introduction to the S2DPS01 Mobile Phone IC
The S2DPS01 Mobile Phone IC is an advanced integrated circuit designed to enhance the performance and reliability of modern mobile phones. With cutting-edge technology and robust construction, this IC is engineered to deliver seamless functionality, making it an indispensable component for mobile device manufacturers and enthusiasts alike. S2DPS01 Mobile Phone IC
Key Features and Benefits
One of the standout features of the S2DPS01 Mobile Phone IC is its ability to optimize energy efficiency without compromising performance. Whether it’s managing power distribution or ensuring smooth processing, this IC delivers exceptional results. Additionally, its compact design makes it easy to integrate into various mobile phone architectures, positioning it as a versatile and adaptable choice for both new and existing devices.
Reliability is at the forefront of the S2DPS01’s design. It is rigorously tested to withstand fluctuating voltages, extreme temperatures, and demanding workloads, ensuring a durable and long-lasting performance. This IC not only supports high-speed operations but also contributes to a better user experience by minimizing latency and maximizing responsiveness in mobile applications.
Applications and Compatibility
The S2DPS01 Mobile Phone IC is suitable for a wide array of smartphone models, from entry-level devices to high-end flagships. It is compatible with both Android and iOS systems, making it an all-inclusive choice for manufacturers seeking universal solutions. Moreover, its support for advanced functionalities like 5G connectivity, enhanced graphics processing, and efficient power usage caters to the diverse needs of today’s smartphone users.
The flexibility of this IC makes it ideal for smartphone manufacturers aiming to create innovative designs while reducing production costs. Its adaptability facilitates integration into various mobile components, such as processors, memory modules, and communication units, ensuring consistent and efficient performance across the board.
Why Choose S2DPS01 Mobile Phone IC?
Choosing the S2DPS01 Mobile Phone IC guarantees superior quality, reliability, and performance—all in one package. It brings value to smartphone manufacturers by simplifying design processes and enhancing device capabilities. With its state-of-the-art features and proven dependability, this IC is the smart choice for businesses and individual buyers looking to stay ahead in the competitive mobile phone market.
Invest in the S2DPS01 Mobile Phone IC today and experience the difference it can make in your mobile device or production efficiency. With its combination of advanced technology and versatile application, this IC sets the benchmark for excellence in mobile phone components. S2DPS01 Mobile Phone IC
The S2DPS01 is a specialized Integrated Circuit (IC) primarily utilized as a Power Management Integrated Circuit (PMIC) and Charging Controller in high-end Samsung smartphones. It is a critical component for managing high-speed energy transfer and ensuring the safety of the device’s battery during charging cycles. S2DPS01 Mobile Phone IC
Below are the detailed specifications and technical details for the S2DPS01 IC. S2DPS01 Mobile Phone IC
S2DPS01 Technical Specifications
| Feature | Specification Details |
| Model Number | S2DPS01 (also referred to as S2DPS01A) |
| Function | Power Management IC / USB Charging Controller |
| Primary Device Compatibility | Samsung Galaxy S20 Ultra (SM-G988 series) |
| Additional Compatibility | Galaxy S8 (SM-G95x), Galaxy A23, and select Exynos-based models |
| Package Type | QFN-48 (Quad Flat No-leads, 48 pins) |
| Dimensions | Approximately 6.0 x 6.0 mm |
| Input Voltage Range | Supports up to 20V DC (VBUS) |
| Max Output Current | ~5.0A (Optimized for Fast Charging) |
| Charging Protocols | USB PD 3.0, Samsung AFC v2.0, Qualcomm Quick Charge |
| Communication Interface | I²C (Inter-Integrated Circuit) for SoC communication |
| Security/Safety | Encrypted firmware handshake with Samsung Battery Management System (BMS) |
| Operating Temperature | Standard industrial grade (-40°C to +85°C) |
Key Functional Roles
The S2DPS01 is not just a simple bridge for electricity; it acts as the “brain” of the charging sub-system. Its roles include:
-
USB Power Delivery (PD) Management: It negotiates with the wall adapter to determine the highest safe wattage (e.g., 25W or 45W) the phone can accept.
-
Cable Authentication: It performs a digital “handshake” to verify the integrity of the charging cable and adapter. If this fails, the IC may throttle charging speeds to 5W to prevent hardware damage.
-
Dynamic Voltage Scaling: It adjusts the incoming voltage in real-time based on the battery’s current state of charge and thermal profile. S2DPS01 Mobile Phone IC
-
Protection Circuitry: It monitors for Over-Voltage (OVP), Over-Current (OCP), and Thermal Throttling to prevent the phone from overheating or catching fire.
Repair & Installation Notes
Due to the complexity of the S2DPS01, it is considered a Level 3 repair component.
-
Firmware Sensitivity: Unlike generic charging ICs (like the BQ series), the S2DPS01 contains proprietary Samsung firmware. Using a “universal” replacement that lacks this specific firmware will often result in the phone showing a “Charging” icon without actually increasing the battery percentage (Fake Charging).
-
Mounting: It is a BGA/QFN surface-mount device. Installation requires professional tools, including a hot air rework station, high-quality flux, and often a microscope for precision alignment.
-
Symptoms of Failure: Common signs that this IC needs replacement include a “Dead” phone that won’t turn on, a device that only charges when powered off, or a “Moisture Detected” error that persists even when the port is dry.
