S2M PS13 Mobile Phone IC

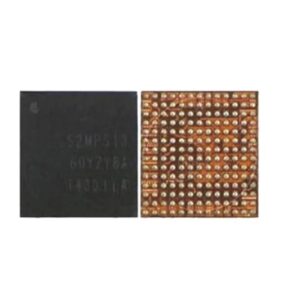

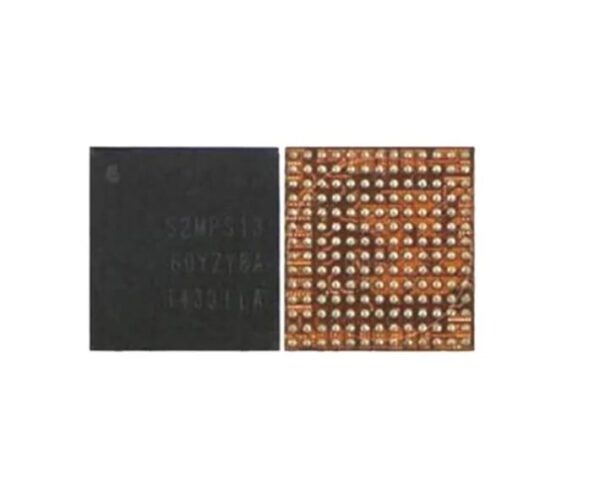

Unmatched Performance with S2M PS13 Mobile Phone IC
Designed to deliver unparalleled performance, the S2M PS13 Mobile Phone IC is the cutting-edge chip engineered to meet the ever-evolving demands of the modern mobile technology landscape. Its seamless integration capabilities make it the ideal choice for manufacturers and innovators looking to elevate their product offerings. Whether designing smartphones, tablets, or other devices, the S2M PS13 guarantees stability and performance that stands out.
Compact and Efficient Design
The S2M PS13 is crafted with efficiency and compactness in mind, ensuring both space and energy savings, making it perfect for sleek and lightweight devices. The IC boasts optimized hardware components that deliver high-speed processing while minimizing energy consumption, contributing to prolonged battery life and reduced heat generation. If you’re aiming for powerful functionality combined with exceptional efficiency, the S2M PS13 Mobile Phone IC is the ultimate choice.
Enhanced Compatibility and Reliable Durability
What sets the S2M PS13 Mobile Phone IC apart is its robust compatibility with diverse device specifications and configurations. It effectively integrates with various circuits, ensuring seamless operation across different mobile platforms. Moreover, its durable design withstands challenging environments and continuous usage, making it a reliable choice for long-term applications. Be it for single-device deployment or mass production, this IC delivers consistent and dependable results.
The S2M PS13 Mobile Phone IC balances performance, efficiency, and compatibility to meet the rigorous demands of today’s mobile device industry. Upgrade your designs with this versatile and dependable IC, empowering your devices to remain competitive in a high-tech world.
The S2DPS01 is a specialized Integrated Circuit (IC) primarily utilized as a Power Management Integrated Circuit (PMIC) and Charging Controller in high-end Samsung smartphones.1 It is a critical component for managing high-speed energy transfer and ensuring the safety of the device’s battery during charging cycles. S2M PS13 Mobile Phone IC
Below are the detailed specifications and technical details for the S2DPS01 IC. S2M PS13 Mobile Phone IC
S2DPS01 Technical Specifications
| Feature | Specification Details |
| Model Number | S2DPS01 (also referred to as S2DPS01A) |
| Function | Power Management IC / USB Charging Controller |
| Primary Device Compatibility | Samsung Galaxy S20 Ultra (SM-G988 series) |
| Additional Compatibility | Galaxy S8 (SM-G95x), Galaxy A23, and select Exynos-based models |
| Package Type | QFN-48 (Quad Flat No-leads, 48 pins) |
| Dimensions | Approximately 6.0 x 6.0 mm |
| Input Voltage Range | Supports up to 20V DC (VBUS) |
| Max Output Current | ~5.0A (Optimized for Fast Charging) |
| Charging Protocols | USB PD 3.0, Samsung AFC v2.0, Qualcomm Quick Charge |
| Communication Interface | I²C (Inter-Integrated Circuit) for SoC communication |
| Security/Safety | Encrypted firmware handshake with Samsung Battery Management System (BMS) |
| Operating Temperature | Standard industrial grade (-40°C to +85°C) |
Key Functional Roles
The S2DPS01 is not just a simple bridge for electricity; it acts as the “brain” of the charging sub-system. Its roles include:
-
USB Power Delivery (PD) Management: It negotiates with the wall adapter to determine the highest safe wattage (e.g., 25W or 45W) the phone can accept.
-
Cable Authentication: It performs a digital “handshake” to verify the integrity of the charging cable and adapter.2 If this fails, the IC may throttle charging speeds to 5W to prevent hardware damage. S2M PS13 Mobile Phone IC
-
Dynamic Voltage Scaling: It adjusts the incoming voltage in real-time based on the battery’s current state of charge and thermal profile. S2M PS13 Mobile Phone IC
-
Protection Circuitry: It monitors for Over-Voltage (OVP), Over-Current (OCP), and Thermal Throttling to prevent the phone from overheating or catching fire. S2M PS13 Mobile Phone IC
Repair & Installation Notes
Due to the complexity of the S2DPS01, it is considered a Level 3 repair component.
-
Firmware Sensitivity: Unlike generic charging ICs (like the BQ series), the S2DPS01 contains proprietary Samsung firmware.3 Using a “universal” replacement that lacks this specific firmware will often result in the phone showing a “Charging” icon without actually increasing the battery percentage (Fake Charging).4
-
Mounting: It is a BGA/QFN surface-mount device.5 Installation requires professional tools, including a hot air rework station, high-quality flux, and often a microscope for precision alignment.6
-
Symptoms of Failure: Common signs that this IC needs replacement include a “Dead” phone that won’t turn on, a device that only charges when powered off, or a “Moisture Detected” error that persists even when the port is dry.
