S2M PS15AO Mobile Phone IC
Unmatched Performance for Mobile Devices
The S2M PS15AO Mobile Phone IC is engineered to bring superior performance and reliability to your devices. Designed specifically to optimize power management and connectivity, this advanced integrated circuit ensures your mobile device operates seamlessly, facilitating smooth user experiences for demanding applications and multitasking environments. S2M PS15AO Mobile Phone IC
Enhanced Efficiency and Design
The S2M PS15AO stands out for its efficient power distribution and compact design, making it ideal for modern smartphones and mobile devices. Whether you are looking to enhance battery life or improve processing power, this IC delivers optimal results with precision engineering. Its ability to maintain high performance while minimizing energy consumption makes it a valuable asset for manufacturers and developers striving to meet consumer demands for energy-efficient technology. S2M PS15AO Mobile Phone IC
Versatile Applications and Reliable Functionality
The S2M PS15AO Mobile Phone IC adapts to a wide range of functions, from handling complex data tasks to supporting advanced connectivity solutions. Its dependable design ensures consistent operation, even under heavy workloads. Built with robust materials and cutting-edge technology, this IC guarantees longevity, performance stability, and minimal failure rates, making it an excellent choice for any mobile device project.
The S2M PS15AO is a specialized Integrated Circuit (IC) primarily used in the power management and charging circuits of smartphones. It is a common component in Samsung mobile devices and is often referred to in the repair industry as a Power Management Integrated Circuit (PMIC) or a secondary power controller. S2M PS15AO Mobile Phone IC
Because this is a proprietary component (often manufactured for or by Samsung), the specifications are typically derived from circuit diagrams and technical repair manuals rather than a public consumer datasheet. S2M PS15AO Mobile Phone IC
Technical Specifications: S2M PS15AO
| Feature | Specification Details |
| Model Number | S2M PS15AO / PS15A0 |
| Type | Power Management IC (PMIC) / Power Supply |
| Common Application | Samsung Galaxy Series (e.g., A-series, M-series) |
| Primary Function | Voltage regulation, DC-DC conversion, and battery charging logic |
| Package Type | BGA (Ball Grid Array) |
| Input Voltage Range | $3.4\text{V} – 4.4\text{V}$ (Typical battery operating range) |
| Output Rails | Multiple LDO (Low Dropout) and Buck regulators for CPU, GPU, and RAM |
| Communication Protocol | $I^2C$ / SPMI (System Power Management Interface) |
| Mounting Style | Surface Mount (SMD) |
| Storage Temperature | $-40\text{°C}$ to $+125\text{°C}$ |
Functional Overview
The S2M PS15AO acts as the “heart” of the device’s electrical distribution. Its primary roles include:
-
Power Sequencing: Ensuring that the phone’s processor, memory, and sensors receive power in the correct order to prevent hardware damage during boot-up.
-
Voltage Regulation: Converting the raw battery voltage into stable, lower voltages (e.g., $1.1\text{V}$, $1.8\text{V}$, or $2.8\text{V}$) required by different sensitive components.
-
Thermal Protection: Monitoring the temperature of the power lines and shutting down or throttling power if the device exceeds safe operating limits.
Common Failure Symptoms
When this IC fails, the mobile device usually exhibits specific power-related issues. Understanding these can help in diagnostic procedures:
-
Dead Phone: The device fails to power on entirely, often showing $0.0\text{A}$ or a very low, fluctuating current on a DC power supply.
-
Short Circuit: The phone shows a “full short” (beeping on a multimeter) across the VCC_MAIN or BATT_VCC lines.
-
Charging Issues: The phone may show a charging icon but not increase in percentage, or it may not detect the charger at all.
-
Overheating: The IC itself may become extremely hot to the touch (or visible via thermal camera) immediately after the battery is connected.
Repair & Handling Notes

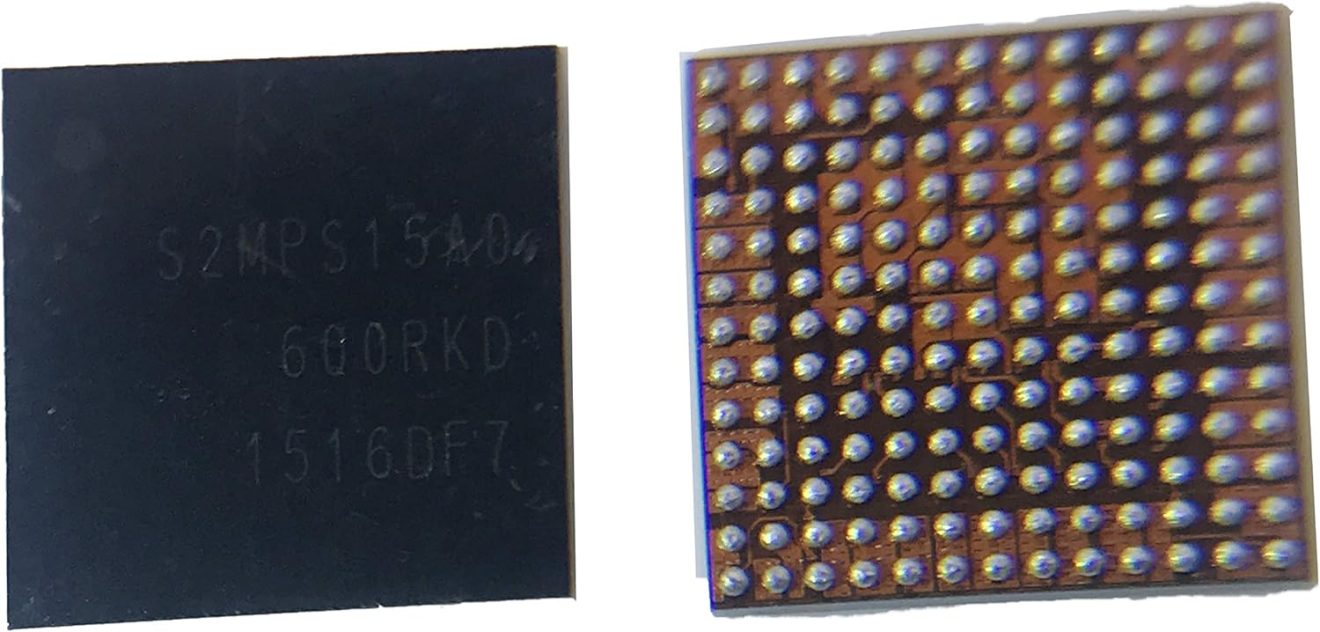

As a BGA chip, the S2M PS15AO requires professional tools for replacement.
-
Reballing: If the chip is functional but has loose connections, it can be reballed using a dedicated S2M stencil and $183\text{°C}$ solder paste.
-
Replacement: When replacing the IC, technicians must ensure the orientation (Pin 1 location) matches the motherboard marking exactly, as reversed installation will instantly blow the chip and potentially damage the CPU.
