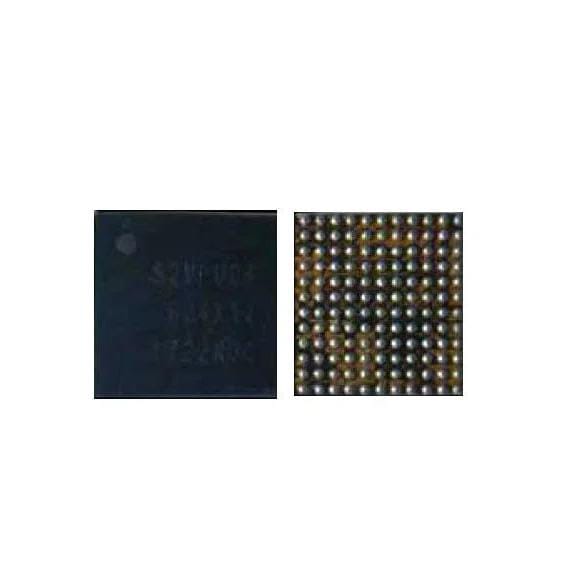

S2M PU04 Mobile Phone IC
Introducing the S2M PU04 Mobile Phone IC
The S2M PU04 Mobile Phone IC is a cutting-edge integrated circuit designed to deliver seamless functionality for today’s advanced mobile devices. Whether you’re a professional technician, electronics enthusiast, or a manufacturer, this IC is engineered to meet the demanding requirements of modern mobile technology with precision and reliability. Experience improved device efficiency and optimized power management in every application. S2M PU04 Mobile Phone IC
Unmatched Features and Benefits
What sets the S2M PU04 Mobile Phone IC apart is its advanced design and top-tier performance. Built with high-quality materials and progressive compatibility features, it ensures integration into a wide range of mobile devices. Its compact form factor supports space-saving designs, while its robust circuitry minimizes heat dissipation and boosts operational efficiency. Moreover, this IC is built to enhance battery life by reducing energy consumption without compromising functionality. Engineers and developers can rely on its adaptability for diverse mobile applications. S2M PU04 Mobile Phone IC
Reliable Solution for Next-Generation Devices
The S2M PU04 Mobile Phone IC strengthens your mobile device’s performance and scalability, supporting the latest antenna technologies and connectivity advancements. With secure electronic structuring, it aids in mitigating interference and maximizing device responsiveness. Whether you’re upgrading existing hardware or building from scratch, this integrated circuit is your reliable solution for ensuring hassle-free compatibility and superior performance. Its compliance with industry standards makes it a trusted option in the mobile component market.
Investing in the S2M PU04 Mobile Phone IC means smarter, faster, and more efficient mobile device operations. Optimize your project outcomes with this dependable and versatile mobile IC.
The S2M PU03A is a specialized Integrated Circuit (IC) primarily utilized as a Power Management Integrated Circuit (PMIC) or Power IC within Samsung mobile devices, specifically in mid-range models like the Galaxy J7 series. Its primary role is to regulate and distribute power from the battery to various internal components such as the CPU, display, and radio frequency (RF) modules.
Below are the detailed specifications and technical parameters for the S2M PU03A IC. S2M PU04 Mobile Phone IC
S2M PU03A Technical Specifications
| Feature | Details / Specification |
| Model Number | S2M PU03A (often listed as S2MPU03) |
| Manufacturer | Samsung / S2M Series |
| Category | Power Management Integrated Circuit (PMIC) |
| Common Application | Mobile Phones (Smartphone Mainboard) |
| Device Compatibility | Samsung J700, A7100, A7108, and related variants |
| IC Function | Power Regulation, Voltage Conversion, Battery Charging |
| Type | BGA (Ball Grid Array) |
| Input Voltage Range | Typically 3.4V – 4.4V (standard Li-ion battery range) |
| Output Rails | Multiple LDO (Low Dropout) and Buck Converters |
| Package Color | Black / Metallic Finish |
| Thermal Management | Integrated over-temperature protection |
| Pin Configuration | Multi-pin layout for power routing and control signals |
| Weight | ~8g (packaged shipping weight) |
Functional Breakdown
The S2M PU03A serves as the “heart” of the device’s electrical distribution. Because mobile processors require different voltages (e.g., $1.1V$ for the core, $1.8V$ for memory, and $3.3V$ for sensors), this IC manages those conversions efficiently.
1. Voltage Regulation
The IC contains several Buck Converters that step down the battery voltage to lower levels required by the chipset. It also utilizes LDO regulators for noise-sensitive components like the camera and audio modules, ensuring a clean and stable power supply.
2. Charging Control
In many Samsung architectures where this IC is present, it assists in the monitoring of charging currents and thermal protection for the battery. It communicates with the processor via the I2C interface to report power status and health.
3. Fault Protection
The S2M PU03A includes built-in safety mechanisms:
-
Over-Voltage Protection (OVP): Prevents damage if a faulty charger is used.
-
Short-Circuit Protection (SCP): Cuts power if a hardware fault is detected on a sub-rail.
-
Thermal Shutdown: Shuts down the IC if the internal temperature exceeds safe operating limits (typically ~150°C).
Repair and Replacement Notes
This IC is a surface-mount device (SMD) using a BGA footprint. Replacing it requires professional micro-soldering tools, including a hot air station and high-quality flux. It is often replaced when a phone shows “No Power” or “Dead” symptoms despite having a charged battery, or when specific functions (like Wi-Fi or Camera) fail due to a lack of power from their respective LDO rails.
