Advanced Technology for Efficient Mobile Operations

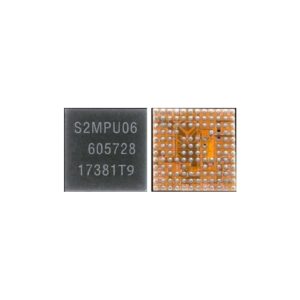

The S2M PU06 Mobile Phone IC stands at the forefront of innovative technology designed to boost the performance and efficiency of your mobile device. Whether you’re looking for seamless functionality or optimized energy management, this integrated circuit delivers a flawless experience tailored to modern mobile demands. S2M PU06 Mobile Phone IC
Robust Design Meets Reliability
Crafted with precision, the S2M PU06 is known for its durable and reliable design. It ensures smooth operations, making it a dependable component for high-performance mobile devices. Its compact design makes it easy to integrate into various phone models, saving valuable space while maintaining exceptional functionality.
Optimized for Energy Efficiency
Energy management is a key feature of the S2M PU06 Mobile Phone IC. It intelligently regulates power distribution within your device, contributing to prolonged battery life. Whether you’re gaming, streaming, or multitasking, the IC ensures your mobile remains powered efficiently, reducing frequent charging sessions. S2M PU06 Mobile Phone IC
The S2M PU06 Mobile Phone IC is your solution for enhancing mobile performance. With innovative technology, a robust design, and enhanced energy efficiency, this integrated circuit is perfect for manufacturers and tech enthusiasts aiming for next-level mobile device functionality. S2M PU06 Mobile Phone IC
The S2M PU06 (often labeled as S2MPU06 or S2MPU06B) is a high-precision Power Management Integrated Circuit (PMIC) manufactured primarily for Samsung mobile devices. It acts as the “heart” of the device’s power distribution, regulating voltages for the processor, memory, and various peripheral sensors. S2M PU06 Mobile Phone IC
Below are the detailed technical specifications and application data. S2M PU06 Mobile Phone IC
S2MPU06 Power Management IC Specifications
| Category | Technical Parameter | Specification Detail |
| Basic Info | Model Number | S2MPU06 / S2MPU06B |
| Component Type | Power Management Integrated Circuit (PMIC) | |
| Package Type | BGA (Ball Grid Array) / WLCSP | |
| Pin Count | Approx. 40–60 functional contact points | |
| Electrical | Input Voltage ($V_{IN}$) | 3.4V to 4.5V (Standard Li-ion Operating Range) |
| Number of Outputs | Multiple (Buck Converters + LDOs) | |
| Primary Output ($V_{OUT}$) | Regulated 1.2V, 1.8V, 2.8V, and 3.3V Rails | |
| Current Handling | Optimized for mid-range SoC power draw | |
| Functions | Power Sequencing | Integrated logic for hardware boot-up timing |
| Regulation Type | DC-DC Step-Down (Buck) & Linear Regulation (LDO) | |
| Protection Circuits | Over-Voltage (OVP), Thermal Shutdown, Short Circuit | |
| Physical | Color | Black / Metallic Silicon Finish |
| Dimensions | Sub-miniature mobile scale (typically < 5mm x 5mm) | |
| Weight | ~0.01g (IC only) | |
| Compatibility | Primary Devices | Samsung Galaxy A51, A71, J5 Prime, J7 (2016) |
| Compatible Chassis | SM-A515F, SM-A715F, SM-G570F, SM-J710F |
Key Functional Breakdown
1. Power Distribution & Regulation
The S2MPU06 is responsible for taking the raw voltage from the battery and converting it into stable, low-noise “rails.” Because different parts of a smartphone require different voltages (e.g., the CPU requires high current at low voltage, while the camera sensor requires very clean, stable voltage), the IC uses:
-
Buck Converters: Efficiently step down voltage for the application processor.
-
LDOs (Low Dropout Regulators): Provide ripple-free power for sensitive analog components like the microphone and GPS.
2. Thermal and Safety Management
Mobile PMICs are prone to heat due to high-speed switching. The S2MPU06 includes internal thermal sensors. If the device’s internal temperature exceeds a safe threshold (usually around 125°C at the die), the IC will automatically throttle power or shut down to prevent permanent damage to the motherboard.
3. Common Failure Symptoms
When this IC fails, the mobile device typically exhibits the following issues:
-
Dead Boot: The phone will not turn on despite a charged battery.
-
Short Circuit: High current consumption at the battery terminals (0.5A+ while off).
-
Stuck at Logo: Failure to provide the secondary voltage needed for the OS to load.
Comparison with Standard Rectifiers
It is important to distinguish the S2MPU06 (PMIC) from the S2M (Rectifier Diode). While the “S2M” diode is a simple 2A component used for AC-to-DC conversion in power bricks, the S2MPU06 is a complex multi-output computer chip designed specifically for internal smartphone logic.
More Products : https://gaffarmarketdelhi.com
