S2M U004X-C Mobile Phone IC

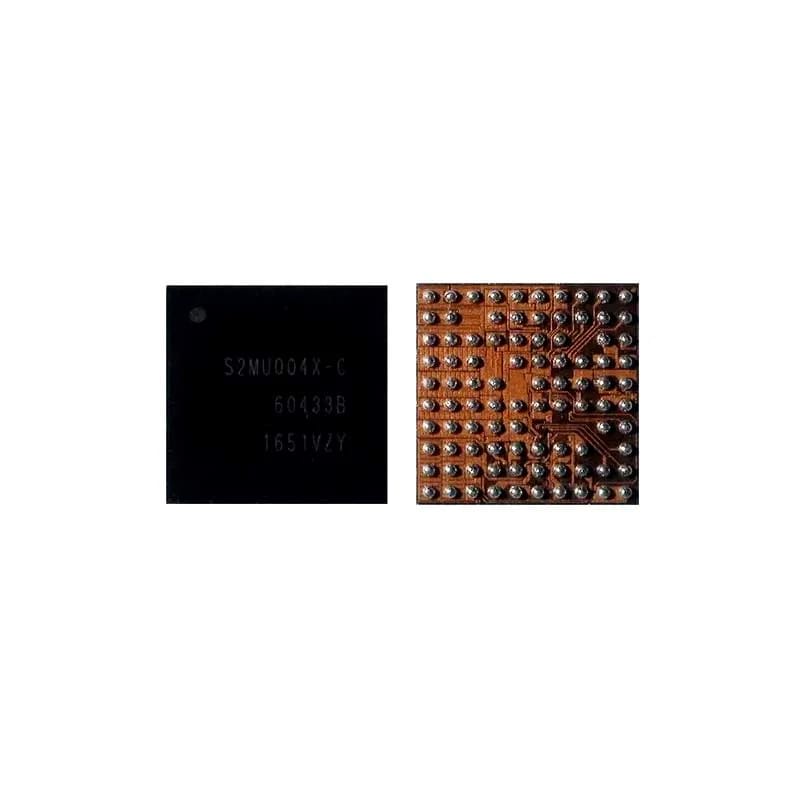

Overview of the S2M U004X-C Mobile Phone IC
The S2M U004X-C Mobile Phone IC is designed to meet the growing demands of modern mobile devices, delivering unmatched performance, efficiency, and reliability. As a core element of mobile phone hardware, this integrated circuit offers advanced features necessary to keep your device running seamlessly, regardless of its workload. Whether you’re developing new smartphone models or looking for replacements, this IC ensures optimized functionality and durability.
Exceptional Performance and Reliability
Built using cutting-edge technology, the S2M U004X-C IC is known for its precise power management capabilities, ensuring that every device it powers runs smoothly without draining excess energy. Its compact design enhances space efficiency, making it ideal for slim and sleek mobile phone designs. Additionally, the IC’s robust construction ensures longevity, so your devices stay operational even under intense usage conditions.
Why Choose the S2M U004X-C Mobile Phone IC?
The S2M U004X-C IC stands out in the market due to its efficient design combined with advanced features that cater to various technological needs. With compatibility across multiple mobile devices, it simplifies integration into numerous smartphone models. The high-performance capabilities and energy-efficient design make it suitable for developers or businesses looking to minimize power consumption while maximizing operational output.
Whether you’re an electronics manufacturer or a repair professional sourcing the best IC components for your products, the S2M U004X-C is an indispensable choice. Its ability to handle heavy workloads with ease, maintain thermal balance, and improve overall device functionality makes it one of the top options in the mobile hardware domain.
Key Features of the S2M U004X-C IC
- Advanced power management for optimal energy efficiency
- Designed for sleek and compact device builds
- Reliable performance under various usage conditions
- Compatibility with a range of mobile phone models
- Durable construction for extended service life
The S2M U004X-C Mobile Phone IC goes beyond functionality, presenting a solution that addresses the challenges faced by modern device manufacturers. If you’re aiming for superior device performance and dependability, this IC will elevate the capabilities of your mobile hardware.
The S2M U004X-C is a high-performance Power Management Integrated Circuit (PMIC) designed primarily for Samsung Galaxy series mobile devices. It serves as the “heart” of the device’s electrical system, regulating voltage and managing power distribution across critical hardware components like the CPU, display, and memory.
Technical Overview
This IC belongs to the S2M series of power management chips, which are specifically engineered to provide high-efficiency power conversion in a small footprint. In mobile repair and engineering, it is frequently used to address issues related to “no power,” charging failures, or rapid battery drain.
S2M U004X-C Full Specifications
| Feature | Specification |
| Model Number | S2M U004X-C (sometimes labeled S2MU004X) |
| Component Type | Power Management IC (PMIC) / Power IC |
| Manufacturer | Samsung / S2M Series |
| Package Type | BGA (Ball Grid Array) |
| Compatible Brands | Samsung Galaxy Series |
| Primary Function | Voltage Regulation, Power Distribution, and Charging Control |
| Output Rails | Multiple LDO (Low Dropout) and Buck Converters |
| Input Voltage | Typically $3.4V$ to $4.4V$ (Standard Li-ion Operating Range) |
| Application | Mobile Smartphones & Tablets |
| Operating Temperature | $-25°C$ to $+85°C$ (Standard Industrial Grade) |
| Material | Silicon-based Integrated Circuit with Lead-free Solder Balls |
Key Features & Functionality
- Efficient Power Distribution:
The S2M U004X-C converts the raw voltage from the battery into specific levels required by different modules. For example, it might provide $1.1V$ for the processor core and $1.8V$ or $2.8V$ for the camera sensors and memory.
- Integrated Charging Logic:
It often integrates the charging controller, managing the current flow from the USB port to the battery while ensuring thermal safety and preventing overcharging.
- Thermal Management:
Equipped with internal thermal shutdown protection, the IC can disable power outputs if it detects temperatures exceeding safe operating limits, preventing damage to the PCB (Printed Circuit Board).
- Compact BGA Design:
The chip uses a Ball Grid Array (BGA) architecture, which allows for a high density of connections in a very small area, essential for modern slim smartphone designs.
Compatibility List
The S2M U004X-C is most commonly found in mid-range to high-end Samsung devices from the 2017–2020 era. Common models include:
-
Samsung Galaxy J5 Prime (G570F)
-
Samsung Galaxy A3 (2017) (A320F)
-
Samsung Galaxy A5 (2017) (A520F)
-
Samsung Galaxy A7 (2017) (A720F)
Repair and Maintenance Note
Replacing this IC requires advanced soldering skills, specifically BGA Reballing. Because it is located near the CPU and EMMC on many motherboards, excessive heat during installation can damage surrounding components. It is recommended to use a high-quality stencil and lead-free solder paste for replacement.
