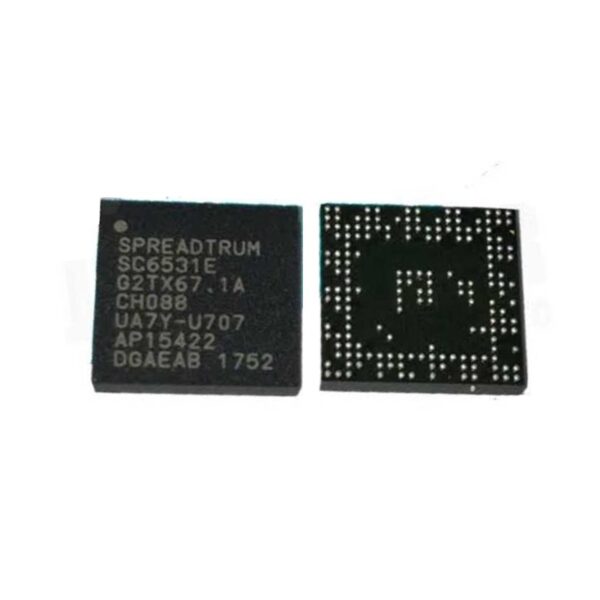

SC 6531E Mobile Phone IC
Reliable Performance for Modern Mobile Technology
The SC 6531E Mobile Phone IC is designed with precision to meet the demands of today’s rapidly advancing mobile technology. Whether you’re looking to create reliable solutions for feature phones or enhance existing devices, this integrated circuit (IC) stands out as a high-performance and highly compatible choice. Manufactured for stability and efficiency, the SC 6531E delivers seamless performance across a wide range of applications, making it an essential component for developers and manufacturers alike. SC 6531E Mobile Phone IC
Optimized Functionality for Enhanced Efficiency
What makes the SC 6531E exceptional is its optimized power management and advanced processing capabilities. This versatile IC is engineered to provide low power consumption without compromising processing speed, allowing it to cater to the needs of energy-efficient devices. Its robust architecture ensures compatibility with various mobile platforms, making it an ideal choice for applications demanding reliability and longevity. Whether for new development projects or replacements, the SC 6531E seamlessly integrates into your devices for consistent and high-quality operation. SC 6531E Mobile Phone IC
Applications and Compatibility
The SC 6531E Mobile Phone IC is widely recognized for its adaptability across diverse applications. From feature phones and basic mobile devices to embedded systems requiring lightweight yet powerful processing, this IC handles it all with ease. Moreover, its straightforward integration process significantly reduces design complexities and accelerates time-to-market for device manufacturers. With the SC 6531E, you benefit from a dependable solution designed to align with industry standards while delivering superior performance. SC 6531E Mobile Phone IC
Bring stability, efficiency, and innovation to your projects with the SC 6531E Mobile Phone IC. Designed to meet the challenges of modern electronics manufacturing, this integrated circuit is your partner in achieving high-quality outputs in a highly competitive market space. SC 6531E Mobile Phone IC
The SC6531E is a highly integrated System-on-Chip (SoC) developed by Spreadtrum (now part of UNISOC).1 It is primarily designed for low-cost 2G feature phones and basic IoT modules.2 It is the “E” revision of the popular SC6531 family, featuring improvements in power efficiency and thermal management over its predecessors like the SC6531D or SC6531DA.3
1. Key Technical Specifications
The SC6531E combines several essential mobile components into a single silicon die to save space and reduce manufacturing costs.4
| Component | Specification |
| CPU Core | Single-core ARM9 |
| Clock Speed | Approximately 208 MHz |
| Architecture | 32-bit RISC |
| Memory Support | Typically paired with 32MB/64MB RAM (SRAM/PSRAM) and SPI NOR Flash |
| Modem | Integrated GSM/GPRS (2G) |
| Package Type | BGA (Ball Grid Array), usually 12x12mm |
| Connectivity | Supports Bluetooth, FM Radio, and USB 1.1/2.0 |
2. Integrated Functional Blocks
Unlike high-end smartphone chips that only handle processing, the SC6531E is an “all-in-one” solution:5
-
Baseband Processor: Handles the cellular radio signals and communication protocols for calling and SMS.6
-
Power Management Unit (PMU): Manages battery charging, voltage regulation, and power distribution for the entire phone.7
-
Audio Codec: Includes the Digital-to-Analog Converter (DAC) and Analog-to-Digital Converter (ADC) for processing voice calls and MP3 playback.
-
Multimedia: Features a basic hardware video/image codec capable of handling low-resolution (HVGA/QVGA) screens and VGA-quality cameras.8
3. Common Applications
Because of its ultra-low cost (often priced under $2 in bulk), it is found in:
-
Feature Phones: Brands like Karbonn, Micromax, iBall, Itel, and various generic “China keypad” phones. SC 6531E Mobile Phone IC
-
Industrial IoT: GPS trackers, remote telemetry units, and simple smart meters that only need to send small amounts of data over GPRS. SC 6531E Mobile Phone IC
-
Bluetooth Speakers: Sometimes used in high-end feature-rich speakers to manage FM radio and basic display interfaces.
4. Technical Differences (E vs. Others)
The “E” version is often preferred by repair technicians because:
-
Thermal Stability: It runs cooler than the SC6531D, making it less prone to “dead phone” issues caused by overheating.
-
Compatibility: While it has the same BGA footprint as other SC6531 variants, the firmware/bootloader is usually specific to the “E” version.11 Swapping an “E” chip for a “D” chip on a motherboard often results in the phone being unable to boot or losing network signal.
5. Repair and Maintenance Tips
If you are working with this IC on a PCB:
-
Reballing: It requires a universal BGA stencil. Use a low-temperature solder paste to avoid damaging the internal ARM9 core during heating.
-
Software: To flash or unlock phones with this chip, tools like SPD Upgrade Tool or Miracle Box are commonly used.
-
Boot Key: Many SC6531E devices use the “Home” or “Center” button as the boot key to enter “Download Mode” via USB
