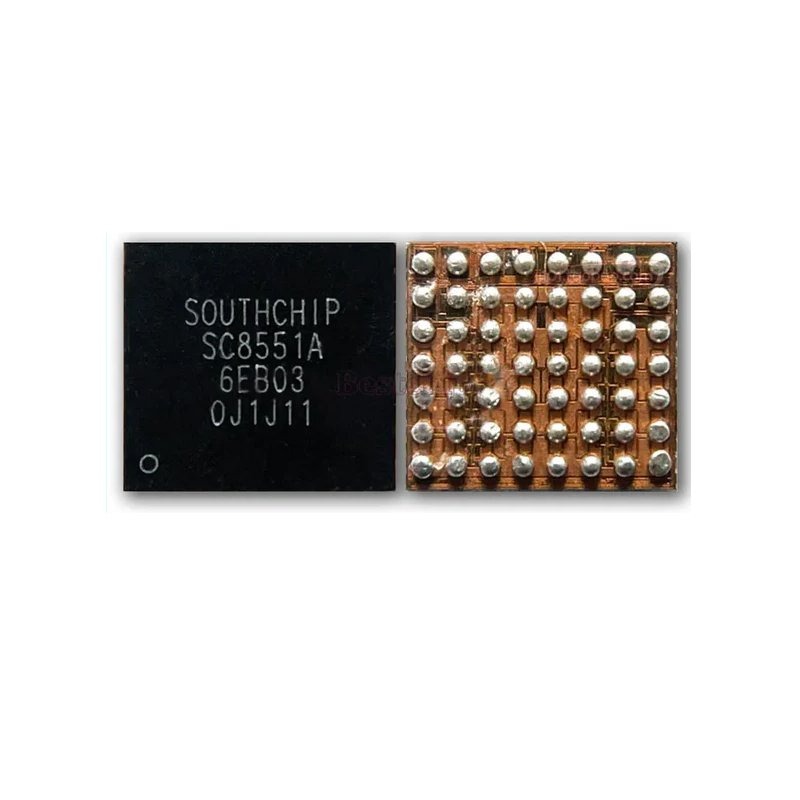

SC 8551A Mobile Phone IC
Enhance Your Device with SC 8551A Mobile Phone IC
Are you looking for a mobile phone IC that ensures superior performance and reliability? The SC 8551A Mobile Phone IC is designed to meet the diverse needs of modern devices, offering exceptional quality and seamless integration. Whether you’re a manufacturer or a repair technician, this IC is the perfect solution for enhancing the functionality and dependability of your mobile devices. SC 8551A Mobile Phone IC
Reliable Performance for Peak Efficiency
The SC 8551A is specifically engineered to deliver optimal performance under various conditions. Built using advanced technology, this mobile phone IC provides efficient power management, ensuring your device operates smoothly without overheating or excessive energy consumption. It supports high-speed processing and enables stable connectivity, making it an essential component for today’s mobile devices.
Versatility for Multiple Applications
This IC is highly versatile, making it suitable for a wide range of mobile phone models and applications. Its compact design and robust structure allow easy installation and compatibility with different device configurations. Whether you’re replacing a damaged component or using it in new device production, the SC 8551A offers unmatched adaptability and reliability.
Why Choose SC 8551A Mobile Phone IC?
The SC 8551A stands out for its durability, precision, and optimized design. It’s manufactured using quality materials to ensure long-lasting performance without regular replacements. With a focus on user needs, this IC integrates smoothly into existing systems and helps maximize the performance of mobile phones, keeping them running efficiently and reliably.
Consider the SC 8551A Mobile Phone IC for your next project and experience the difference that high-quality engineering brings to mobile device functionality. Backed by industry expertise, this IC is the ideal choice for those seeking dependable solutions for their devices.
The SC8551A, manufactured by Southchip Semiconductor, is a high-efficiency, single-cell battery charging IC specifically designed for modern smartphones. It utilizes a switched capacitor (charge pump) architecture, which is the gold standard for high-power fast charging because it minimizes heat generation by doubling the current while halving the voltage.
Below are the full technical specifications for the SC8551A. SC 8551A Mobile Phone IC
SC8551A Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | Southchip Semiconductor |
| Function | Switched Capacitor Direct Charger (Charge Pump) |
| Architecture | 2:1 Switched Cap (Double Current, Half Voltage) |
| Peak Efficiency | 97% |
| Max Charging Current | 8A (Switched Cap mode) / 6A (Direct mode) |
| Typical Power Output | 40W |
| VBUS Input Range | 3.3V to 11V |
| VBUS Abs. Max Rating | 20V |
| VOUT Range | 3.0V to 5.0V |
| VOUT Abs. Max Rating | 6.0V |
| ADC Resolution | 12-bit (Monitors Voltage, Current, Temperature) |
| Quiescent Current | 10µA (Typical) |
| Communication Interface | I2C Protocol |
| Package Type | WLCSP-56 (Wafer Level Chip Scale Package) |
| Dimensions | 2.995 mm x 3.255 mm |
Key Features & Protection Mechanisms
The SC8551A is known for its “10-way system protection” and “6-way charge-pump protection,” making it a highly safe component for mobile devices like Xiaomi, Huawei, and Vivo.
1. High-Efficiency Power Delivery
Unlike traditional buck converters that lose significant energy as heat, the SC8551A uses a 50% duty cycle. This allows the charging cable to carry only half the current delivered to the battery, significantly reducing “cable loss” and preventing the phone from becoming uncomfortably hot during 33W or 40W fast-charging sessions. SC 8551A Mobile Phone IC
2. Integrated ADC
The chip includes a high-precision 12-bit Analog-to-Digital Converter (ADC). This allows the phone’s CPU to monitor real-time data including:
-
VAC/VBUS: Input adapter voltage.
-
IBUS/IBAT: Current flow from the charger and into the battery.
-
TDIE: The internal temperature of the IC itself.
3. Comprehensive Protections
To prevent motherboard damage or battery swelling, the IC includes:
-
Over-Voltage Protection (OVP): Triggered at the input (VBUS) and output (VOUT).
-
Over-Current Protection (OCP): Monitors IBUS and IBAT.
-
Thermal Shutdown (TSHUT): Automatically stops charging if the chip exceeds safety temperatures (typically ~150°C). SC 8551A Mobile Phone IC
-
Flying Capacitor (CFLY) Detection: Checks for short or open circuits in external capacitors before starting the charging process. SC 8551A Mobile Phone IC
Applications in Repair
The SC8551A is a common replacement part in mobile repair shops. It is frequently found in:
-
Xiaomi/Redmi: Devices like the Redmi Note 10 Pro and various “Mi” series models.
-
Huawei/Vivo: Often used in mid-to-high-end models requiring proprietary fast-charge protocols.
-
Symptom Fixes: This IC is usually replaced when a phone has “no charging,” “slow charging,” or “fake charging” (where the icon shows but the percentage doesn’t rise).
