SDR 55 M Mobile Phone IC
Unmatched Performance with SDR 55 M Mobile Phone IC
The SDR 55 M Mobile Phone IC is the ideal solution for industry professionals and tech enthusiasts seeking a high-quality, efficient integrated circuit for mobile phone applications. Built with cutting-edge technology, this IC ensures robust performance, seamless communication capabilities, and energy efficiency, making it the perfect choice for next-generation mobile devices. Whether you’re working on the latest smartphone or upgrading an existing model, the SDR 55 M guarantees reliability and sophistication. SDR 55 M Mobile Phone IC
Features That Elevate Connectivity
With a focus on optimized connectivity and performance, the SDR 55 M Mobile Phone IC offers an array of standout features. It supports faster data transmission rates and smooth signal processing, ensuring uninterrupted communication between components. Crafted with precision engineering, the IC minimizes latency and ensures compatibility across a variety of mobile device architectures, empowering manufacturers to deliver unparalleled user experiences. SDR 55 M Mobile Phone IC
Why Choose the SDR 55 M?
Designed with durability and adaptability at its core, the SDR 55 M Mobile Phone IC is tailored for the demands of modern mobile technology. Not only does it enhance device functionality, but it also reduces power consumption, contributing to extended battery life and lower operational costs. Additionally, its compact design supports lightweight builds, helping manufacturers create sleeker, more portable phones without compromising on performance.
Whether you’re a developer or a manufacturer, the SDR 55 M IC is the dependable, powerful solution you’ve been looking for to take mobile innovation to the next level.

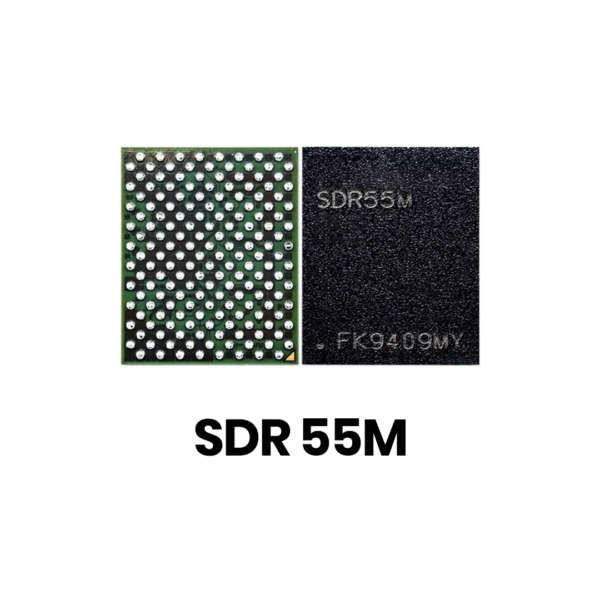

The SDR55M is a high-performance Radio Frequency (RF) Transceiver IC, often referred to in the mobile repair industry as a “Network IC.” It is a critical component of the Qualcomm Snapdragon X55 5G Modem-RF System, primarily found in flagship smartphones like the iPhone 12 series and various high-end Android devices (e.g., Xiaomi 10). SDR 55 M Mobile Phone IC
While “SDR55M” refers specifically to the RF transceiver portion of the chipset, it works in tandem with the SDX55M (the Baseband/Modem processor). SDR 55 M Mobile Phone IC
Technical Specifications: SDR55M RF Transceiver
The following table outlines the key technical parameters and functional specifications of the SDR55M IC.
| Feature | Specification Details |
| Manufacturer | Qualcomm |
| Part Number | SDR55M / SDR55M-002 |
| Function | 5G/4G/3G/2G RF Transceiver (Intermediate Frequency Processing) |
| Network Support | 5G NR (Sub-6 GHz & mmWave), LTE, WCDMA, GSM |
| Architecture | Zero-IF (Direct Conversion) for high integration |
| Modem Pairing | Specifically designed for the Snapdragon X55 (SDX55) modem |
| Technology Node | 7nm Process (for the companion modem) |
| Package Type | BGA (Ball Grid Array) – High-density Solder Ball Layout |
| Dimensions | Approx. 5mm x 5mm (varies by specific SKU) |
| Voltage Requirements | Typically operates on 1.8V, 1.2V, and 0.8V LDO rails |
| Connectivity | Supports MIMO 4×4, Carrier Aggregation (CA), and DSS |
Core Functions and Features
1. Multi-Mode Connectivity
The SDR55M is a “global” IC, meaning it is engineered to handle a massive range of frequencies. It manages the transition between 5G Sub-6GHz and 4G LTE seamlessly. In 5G mode, it facilitates high-speed data transfers by processing complex modulation schemes like 256-QAM.
2. Signal Conversion
As a software-defined radio (SDR) component, it converts analog radio signals received via the antenna into digital data that the baseband processor can understand. Conversely, it takes digital data from the phone’s CPU and converts it into RF signals for transmission.
3. Power Efficiency
Because 5G consumes significantly more power than 4G, the SDR55M utilizes advanced Envelope Tracking (ET) technology. This ensures the Power Amplifier (PA) only receives the exact voltage needed for the signal being sent, drastically reducing heat and battery drain.
4. Integration with RFFE
The IC acts as the “brain” for the RF Front-End (RFFE). It controls the antenna switches, low-noise amplifiers (LNAs), and power amplifiers located elsewhere on the motherboard to optimize signal reception in “dead zones.“
Common Issues and Symptoms (Repair Context)
In the mobile repair industry, the SDR55M is frequently replaced to solve the following hardware-level problems:
-
No Service / Searching: If the IC fails, the phone cannot lock onto any cellular network.
-
Unknown Baseband: When the phone’s software cannot “see” the modem hardware, often caused by a faulty SDR55M or its power supply.
-
Imei Null: Missing IMEI information in settings is a classic symptom of a network IC or baseband failure.
-
High Battery Drain: A short circuit within the SDR55M can cause the device to overheat even when not in use.
Note: Replacing this IC requires professional micro-soldering equipment (Hot Air Rework Station) and stencils, as it uses a BGA mounting system with microscopic solder balls.
