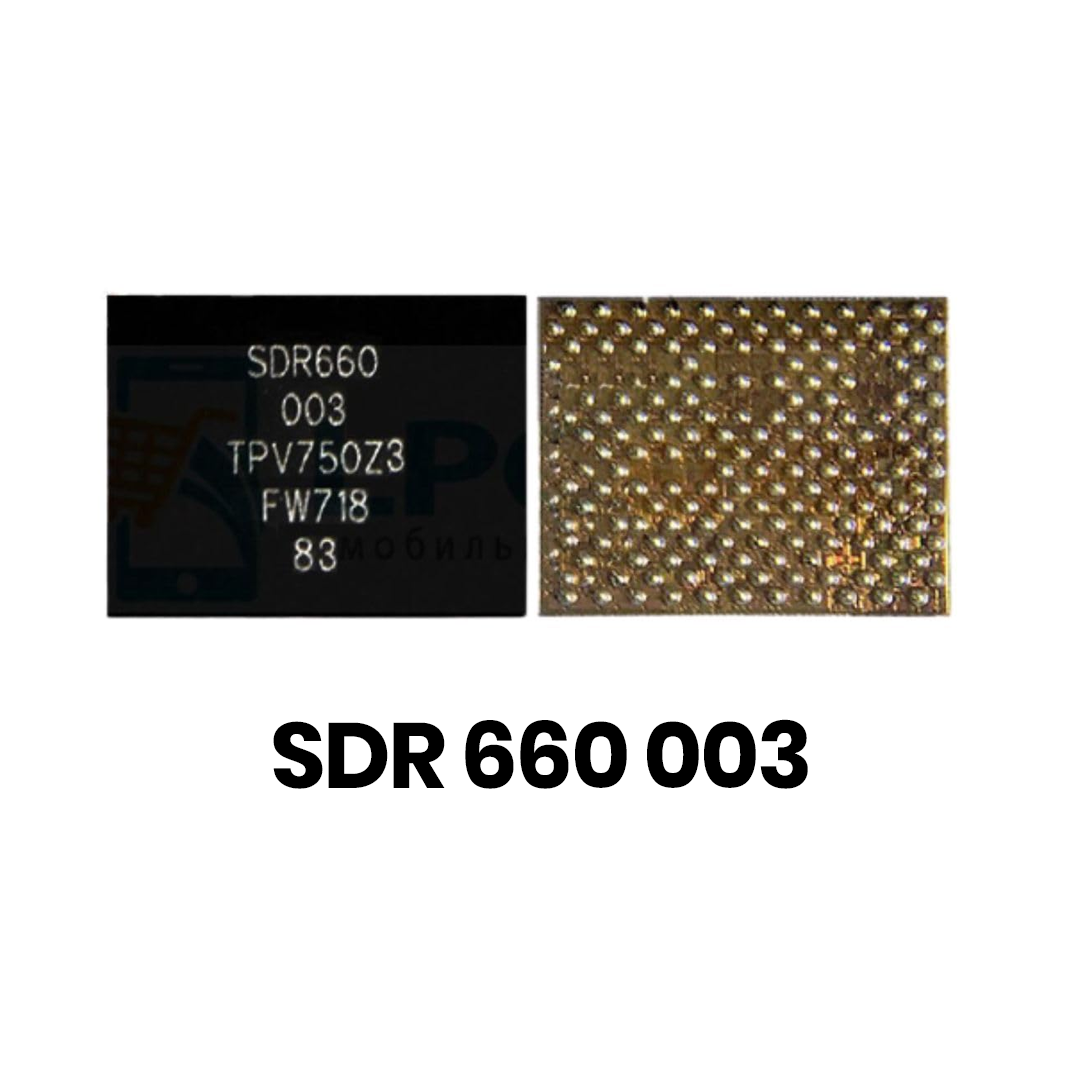

SDR 660 003 Mobile Phone IC
Unveiling the SDR 660 003 Mobile Phone IC
The SDR 660 003 Mobile Phone IC is a cutting-edge solution that revolutionizes mobile device functionality. Designed to deliver exceptional performance, energy efficiency, and reliability, this integrated circuit (IC) is the perfect choice for manufacturers and developers seeking a robust mobile phone component. Whether you aim to enhance connectivity features, maximize processing power, or improve energy optimization, the SDR 660 003 meets the highest industry standards for modern mobile technology. SDR 660 003 Mobile Phone IC
Key Features of the SDR 660 003 Mobile Phone IC
The SDR 660 003 Mobile Phone IC hosts an array of advanced features tailored to accommodate the needs of the modern smartphone market. With ultra-fast data processing and resource optimization, it ensures seamless performance during high-demand applications. The IC also integrates cutting-edge technology to support faster connection speeds, reduce latency, and enable enhanced signal clarity. Furthermore, its energy-efficient design allows for prolonged battery life, offering users an extended device uptime without compromising on performance.
Applications and Benefits
Targeted toward mobile device manufacturers and technology enthusiasts, the SDR 660 003 delivers unmatched efficiency and compatibility. Whether you’re looking to build flagship smartphones, durable feature phones, or IoT devices, this IC provides reliable performance across multiple domains. Its versatile configuration allows smooth integration into various designs while supporting resource-heavy applications. Beyond its technical prowess, the adoption of the SDR 660 003 Mobile Phone IC can significantly reduce production costs, increase customer satisfaction through improved device performance, and position your brand as a leader in innovative technology solutions.
The SDR660 003 is a critical RF Transceiver and Intermediate Frequency (IF) Integrated Circuit primarily used in smartphones powered by the Qualcomm Snapdragon 660 platform. It acts as the “bridge” between the phone’s antennas and the digital modem, handling the conversion of radio waves into data.
Below is the full technical specification and functional breakdown.
Technical Specifications Table
| Feature | Specification Details |
| Model Number | SDR660-003 |
| Manufacturer | Qualcomm (also fabricated by Samsung Semiconductor) |
| IC Type | RF Transceiver / Intermediate Frequency (IF) IC |
| Compatible Platform | Snapdragon 660 (SDM660) & Snapdragon 7xx Series |
| Process Technology | 14nm FinFET (Optimized for low power) |
| Functionality | Dual-band LNA, Frequency Mixing, Signal Modulation |
| Network Support | 2G, 3G, 4G LTE (Cat 12/13), VoLTE, carrier aggregation |
| Connectivity | Supports GSM, WCDMA, TD-SCDMA, FDD-LTE, TDD-LTE |
| Package Type | WLPSP (Wafer Level Chip Scale Package) |
| Operating Voltage | 1.8V (Primary Rail), 1.2V/0.9V (Core Logic) |
| Typical Use Case | Repairing “No Service” or “Searching” network issues |
Functional Overview
The SDR660 003 is responsible for the Radio Front-End (RFFE) chain. In modern mobile architecture, it performs the following critical tasks:
-
Down-Conversion: It takes high-frequency signals (e.g., 2.1 GHz LTE) received by the antenna and converts them into a lower “Intermediate Frequency” that the phone’s modem can process.
-
Up-Conversion: When you send a text or make a call, it converts digital data from the modem into high-frequency radio waves for transmission.
-
Signal Filtering: It works alongside Power Amplifiers (PA) and filters to ensure the signal is clean and stays within FCC-regulated bandwidths to avoid interference.
Device Compatibility
This IC is widely used across mid-range “performance” devices from 2018 to 2021. Key models include:
-
Xiaomi: Mi 6X, Mi Note 3, Mi Mix 2, Redmi Note 7/8/Pro, Redmi K20.
-
Oppo: R11, R11s, R15.
-
Vivo: X20, X21 Plus, V11.
-
Samsung: Certain Galaxy A-series models utilizing Snapdragon chipsets.
Common Fault Symptoms
Because this IC manages the network handshake, a failure in the SDR660 003 usually results in:
-
“No Service” or permanent “Searching” status even with a valid SIM.
-
Radio Off: The phone shows “Turn off Airplane Mode” even when it is already off.
-
Weak Signal: Frequent call drops or inability to connect to 4G/LTE while 2G works.
-
IMEI issues: While the IC doesn’t store the IMEI, a communication failure between it and the CPU can cause the baseboard version to appear as “Unknown.”
Repair Note for Technicians
The SDR660 003 is a BGA (Ball Grid Array) chip. Replacing it requires professional micro-soldering tools, including a hot air station (set to approx. 350°C), high-quality flux, and often a reballing stencil. It is highly sensitive to heat; excessive temperature during installation can damage the internal silicon gates.
