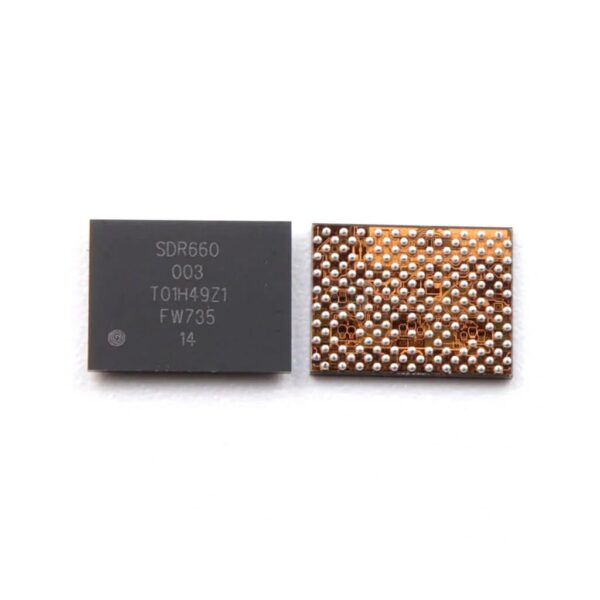

SDR 660 Network IC Mobile Phone IC
Advanced Connectivity with SDR 660 Network IC
The SDR 660 Network IC Mobile Phone IC is the cornerstone of modern mobile phone performance, offering unparalleled reliability and seamless connectivity for all your mobile needs. Designed with precision engineering, this network IC ensures optimized data transmission and smooth communication, elevating your mobile experience to the next level. Whether you’re streaming high-quality content, communicating across networks, or running performance-intensive applications, the SDR 660 simplifies connectivity challenges to deliver consistent results.
Reliable Design for Superior Performance
The SDR 660 Network IC is crafted to meet the dynamic demands of today’s mobile applications. Built with cutting-edge materials and advanced architectures, this IC stands out for its high durability and efficiency. Its robust design allows it to handle intensive tasks with minimal energy consumption, ensuring extended device life and a reduction in operational heat. The systematic circuitry of SDR 660 enhances its processing power, making it an essential core component in modern mobile devices that rely heavily on uninterrupted connectivity and fast processing speeds. SDR 660 Network IC Mobile Phone IC
Compatibility and Seamless Integration
Another key advantage of the SDR 660 Network IC is its extensive compatibility with a wide array of mobile device platforms. Its versatile design allows vertical integration into multiple systems, simplifying the manufacturing process for device makers. For users, this translates into smoother performance, quicker setup, and an enhanced user experience. From high-speed internet networking to real-time app usage with no lag, the SDR 660 guarantees stability across all functions. Its optimized programming is ready to align seamlessly with your mobile phone’s infrastructure.
The SDR660 is a critical Radio Frequency (RF) transceiver Integrated Circuit (IC) developed by Qualcomm.1 It is primarily used in smartphones powered by the Snapdragon 660 (SDM660) chipset.2 Unlike the main processor (CPU/GPU), the SDR660 is specialized for handling wireless signals, acting as the bridge between the phone’s antennas and the digital modem.
Technical Specifications Overview
The SDR660 is part of Qualcomm’s “intermediate frequency” line, designed to handle multi-mode and multi-band operations including LTE, 3G, and 2G. It works in tandem with the Snapdragon X12 LTE modem to provide high-speed data and stable voice calls.3
| Feature | Specification |
| Component Name | SDR660 (often labeled as SDR660-003) |
| Function | RF Transceiver (Radio Frequency Management) |
| Connectivity Support | 4G LTE (Cat 12/13), 3G (WCDMA/HSPA+), 2G (GSM/EDGE) |
| Download Speed | Up to 600 Mbps (via Snapdragon X12 Modem) |
| Upload Speed | Up to 150 Mbps |
| Carrier Aggregation | 3×20 MHz Downlink, 2×20 MHz Uplink |
| Wi-Fi Support | 802.11ac Wave 2, 2×2 MU-MIMO (Dual-band 2.4/5 GHz) |
| Bluetooth Support | Version 5.0 |
| Package Type | Wafer-Level Chip-Scale Package (WLCSP) |
| Compatible Models | Xiaomi Redmi Note 7/8, Oppo R11, Vivo X20/X21, etc. |
Key Roles of the SDR660 IC
1. Signal Modulation and Demodulation
The SDR660 converts digital data from the phone’s processor into radio waves (analog signals) for transmission. Conversely, it receives incoming radio waves from the environment and converts them back into digital data that the phone can understand. SDR 660 Network IC Mobile Phone IC
2. Advanced Carrier Aggregation
One of its standout features is support for 3x Carrier Aggregation. This technology allows the phone to combine three different frequency bands into a single “pipe,” significantly increasing data speeds and improving connection stability in crowded areas. SDR 660 Network IC Mobile Phone IC
3. Power Efficiency
Manufactured on a low-leakage process, the SDR660 is designed to minimize battery drain during active data usage. It works with the Qualcomm Envelope Tracker to ensure the power amplifier only uses the exact amount of energy needed for the current signal strength. SDR 660 Network IC Mobile Phone IC
Common Symptoms of a Faulty SDR660
Because this IC manages all cellular communications, a failure usually manifests in “No Service” or “Baseband” issues.4 Common repair scenarios include:
-
Unknown Baseband: The “Baseband Version” in the phone settings appears as “Unknown” or empty.5
-
No Signal/No Service: The phone fails to detect any network even with a valid SIM card.
-
IMEI Null: Often associated with the IC’s inability to communicate with the modem. SDR 660 Network IC Mobile Phone IC
-
Hardware Damage: Frequent in devices that have suffered water damage or heavy drops, requiring professional “reballing” or replacement. SDR 660 Network IC Mobile Phone IC
Professional Repair Note
The SDR660 is a BGA (Ball Grid Array) chip. Replacing it requires precision tools, including a hot air station, high-quality flux, and a specific stenciling kit. Due to its proximity to the main CPU on many motherboards, DIY repairs are not recommended without advanced soldering skills.
