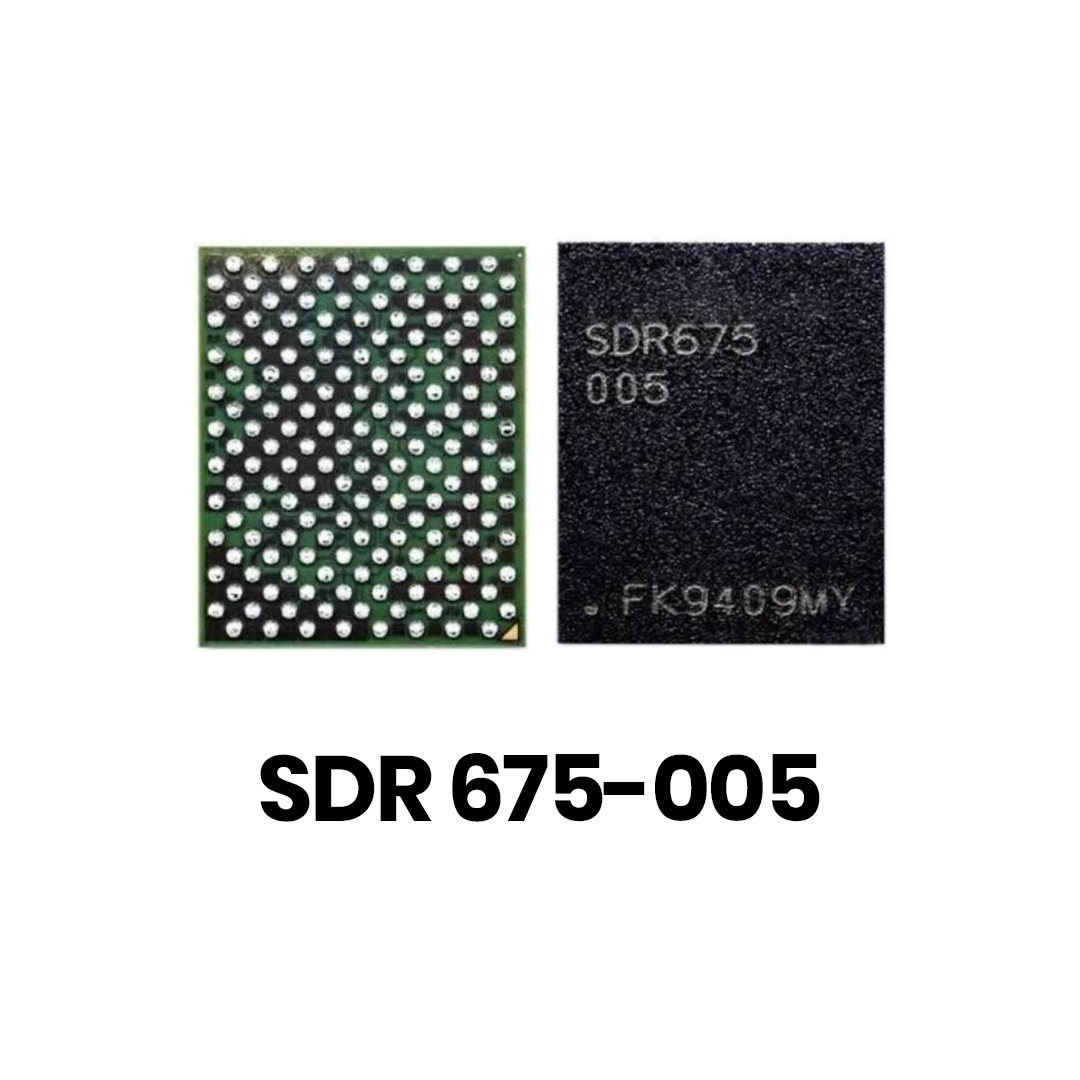

SDR 675-005 Mobile Phone IC
Exceptional Performance for Mobile Devices
The SDR 675-005 Mobile Phone IC is designed to deliver seamless functionality and reliable performance for modern mobile devices. Built with high-efficiency circuitry, this small yet powerful integrated circuit ensures optimal processing and connectivity capabilities that cater to your smartphone’s needs. Whether it’s managing complex signal protocols or enabling smooth communication, the SDR 675-005 IC guarantees enhanced efficiency without compromising on performance.
Compact Design with Advanced Features
At the forefront of innovation, the SDR 675-005 Mobile Phone IC boasts a compact design that fits effortlessly within various mobile device architectures. Its advanced features include superior signal processing, minimal power consumption, and robust thermal management, making it ideal for high-demand applications. Crafted with precision, this IC ensures compatibility with multiple mobile platforms to enable versatile usage and integration capabilities. It is not just an essential addition to your device but a significant upgrade to enable better performance and reliability. SDR 675-005 Mobile Phone IC
Perfect Solution for Industry Standards
The SDR 675-005 IC aligns with international standards for mobile phone components, ensuring high reliability and quality. With its robust build and reliability-focused design, this IC assures long-lasting performance, adapting expertly to the evolving needs of today’s mobile device users. From device manufacturers looking to enhance connectivity options to repair technicians sourcing premium-grade components, the SDR 675-005 delivers value across diverse applications.
Invest in the SDR 675-005 Mobile Phone IC and experience the perfect balance of cutting-edge technology, efficiency, and reliability for your mobile devices.
The SDR675-005 is a critical Radio Frequency (RF) Integrated Circuit, specifically categorized as an Intermediate Frequency (IF) Transceiver. It serves as the bridge between a smartphone’s high-frequency antennas and its baseband processor, commonly found in devices powered by Qualcomm or MediaTek chipsets, such as the Xiaomi Redmi Note 9 series and Xiaomi 10.
Below are the comprehensive technical specifications and details for this component. SDR 675-005 Mobile Phone IC
Technical Specifications: SDR675-005 IC
| Feature | Specification Details |
| Model Number | SDR675-005 (often labeled as 005-SDR675) |
| Component Type | Intermediate Frequency (IF) Transceiver IC |
| Primary Function | Signal Up-conversion / Down-conversion |
| Supported Networks | GSM, WCDMA, LTE (4G), and early 5G (Sub-6 GHz) |
| Frequency Range | Multi-band support (High, Mid, and Low bands) |
| Architecture | CMOS Technology with Low Power Consumption |
| Packaging Type | BGA (Ball Grid Array) |
| Package Weight | Approx. 0.01g to 0.02g |
| Compatible Brands | Xiaomi, Redmi, Samsung, ZTE, Realme |
| Key Device Usage | Redmi Note 9 Pro, Note 9S, Xiaomi 10, Mi 10T |
| Material Composition | Silicon Substrate with High-Durable Thermal Pads |
| Operating Temp | -40°C to +85°C (Standard Mobile Grade) |
Key Functional Overview
The SDR675-005 is not a standalone processor; it is a dedicated slave IC within the RF Front-End (RFFE) subsystem. Its role is divided into two primary operations:
-
Down-Conversion (RX): It receives high-frequency analog signals from the antenna (GHz range), filters them, and converts them into a lower intermediate frequency (IF) that the main processor can digitize and decode into data or voice.
-
Up-Conversion (TX): It takes digital data from the baseband processor, converts it into an analog signal, and “mixes” it to the required radio frequency for transmission.
Signs of Failure and Diagnostic Data
Since this IC manages the signal path, a faulty SDR675-005 typically manifests as:
-
“No Service” or “Searching…” errors even with a valid SIM card.
-
Persistent “Radio Off” status in the phone’s testing menu (
*#*#4636#*#*). -
Frequent signal drops or inability to connect to 4G/LTE while 2G remains available.
-
Abnormal voltage readings at the power input pins (typically around 1.8V and 1.0V lines).
Installation & Repair Notes
-
Precision Soldering: Because this is a BGA chip, replacement requires a Hot Air Rework Station set to approximately 330°C–350°C and high-quality flux.
-
Revision Sensitivity: The “005” suffix is critical. While other SDR675 variants exist, they are often not pin-compatible and may lead to a permanent “no signal” state or a motherboard short if interchanged.
-
Reballing: New chips usually come pre-balled with lead-free solder spheres.
