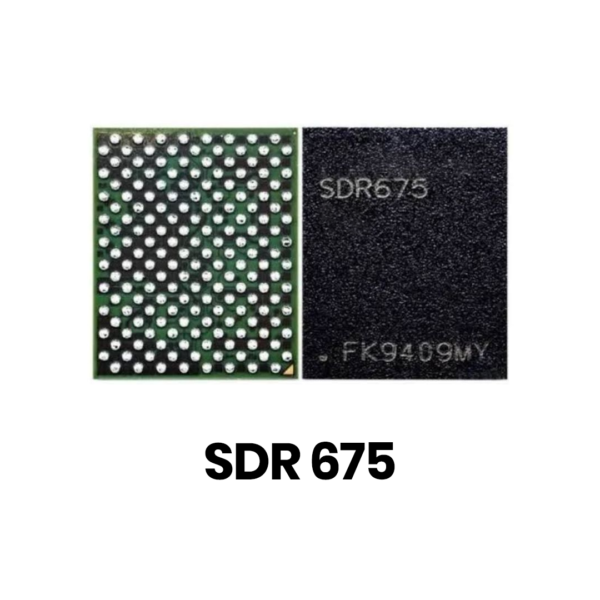

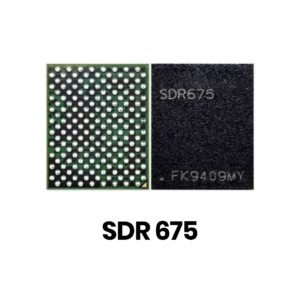

SDR 675 Mobile Phone IC
Exceptional Performance for Your Devices
The SDR 675 Mobile Phone IC is engineered to deliver superior functionality for modern smartphones. Designed with precision and efficiency, this integrated circuit ensures seamless operation and high-speed performance for a wide range of applications. SDR 675 Mobile Phone IC
Compact Design with High Reliability
Packed into a compact form factor, the SDR 675 is built to empower both performance and durability. Its cutting-edge design reduces energy consumption while maintaining robust operational stability, making it an essential component for next-generation mobile technology.
Versatile and Easy Integration
Perfectly suited for diverse use cases, the SDR 675 integrates effortlessly with your device’s architecture. With enhanced compatibility and optimized processing capabilities, this IC guarantees an exceptional user experience and reliable performance for manufacturers and end-users alike.
The SDR675 is a high-performance Intermediate Frequency (IF) Transceiver IC (Integrated Circuit) developed by Qualcomm. It serves as a vital bridge in the Radio Frequency (RF) subsystem of mid-range smartphones, specifically those powered by the Snapdragon 675 Mobile Platform.
Its primary role is to handle the conversion of signals between the baseband processor (which deals with digital data) and the RF front-end (which deals with high-frequency radio waves). Without this chip, a mobile phone cannot maintain a stable connection to cellular networks. SDR 675 Mobile Phone IC
Core Specifications: SDR675 Transceiver
| Feature | Specification Details |
| Manufacturer | Qualcomm |
| Model Number | SDR675 (Common revision: 005) |
| IC Type | RF Transceiver / Intermediate Frequency (IF) IC |
| Function | Signal modulation/demodulation & Frequency conversion |
| Technology | CMOS Integration |
| Package Type | QFN (Quad Flat No-leads) or similar High-Density BGA |
| Pin Count | Approximately 178 pins (varies by revision) |
| Compatible Platforms | Snapdragon 675 (SDM675), Snapdragon 700 series |
| Network Support | LTE (Cat 12/15), WCDMA, GSM, CDMA |
| Key Capability | Carrier Aggregation (CA) support for high-speed data |
Technical Breakdown and Functionality
The SDR675 is not a standalone processor like a CPU; rather, it is a specialized communication chip. Its performance directly impacts the phone’s “Network Reception” quality.
- Intermediate Frequency Processing:
The chip takes high-frequency signals received by the antenna (e.g., 2.1 GHz) and down-converts them to a lower “Intermediate Frequency” that the baseband modem can process. Conversely, it up-converts data from the modem for transmission. SDR 675 Mobile Phone IC
- Carrier Aggregation Support:
One of its standout features is the ability to handle Carrier Aggregation. This allows the device to combine multiple frequency bands simultaneously, significantly increasing download speeds (up to 600 Mbps when paired with the X12 LTE modem). SDR 675 Mobile Phone IC
- Power Management:
Designed with advanced power-saving states, the SDR675 minimizes battery drain during “Idle” mode while maintaining the ability to wake up instantly for incoming calls or data packets. SDR 675 Mobile Phone IC
Common Applications and Compatibility
This IC is widely used in “Global” versions of mid-range smartphones released between 2019 and 2021. If a phone suffers from “No Service” or “Searching…” errors that aren’t fixed by a software reset, this chip is often the hardware culprit. SDR 675 Mobile Phone IC
Popular Devices Utilizing SDR675:
-
Xiaomi: Redmi Note 7 Pro, Redmi Note 9 Pro, Mi 10 (certain regional variants).
-
Samsung: Galaxy A70, Galaxy M40.
-
Vivo/Oppo: Various V-series and R-series mid-range models.
Troubleshooting & Repair Notes
Because the SDR675 is a BGA (Ball Grid Array) component, it is soldered directly to the motherboard.
-
Failure Symptoms: Frequent signal dropping, Wi-Fi/Bluetooth interference (in shared architectures), or the device being stuck in “Airplane Mode.”
-
Repair Method: Technicians use a Hot Air Rework Station to “reflow” or “reball” the chip. Because of its tiny pin pitch, precise temperature control is required to avoid damaging the main PCB layers.
-
Version Sensitivity: When sourcing a replacement, technicians must match the suffix (e.g., SDR675-005). Using a different revision can lead to “Baseband Unknown” errors or total loss of network functionality.
