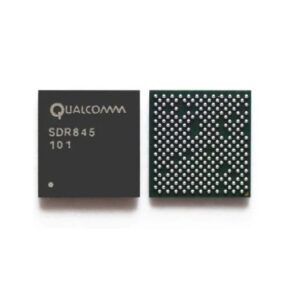

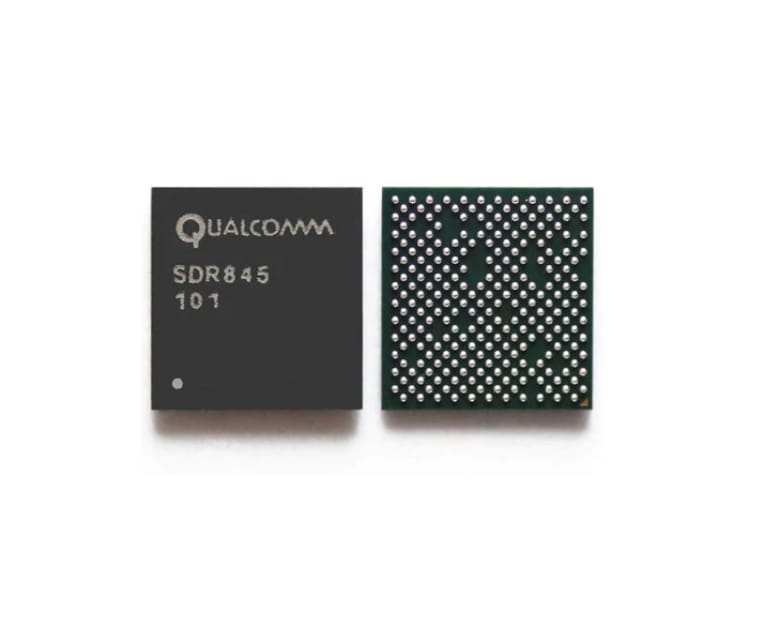

SDR 845-101 Mobile Phone IC
The SDR 845-101 Mobile Phone IC is a cutting-edge integrated circuit designed to enhance mobile phone performance, ensuring unparalleled reliability and efficiency. It is an ideal choice for manufacturers seeking superior functionality and seamless connectivity for their devices. With innovative technology and precision, the SDR 845-101 stands out as a key component in modern mobile systems.
Exceptional Performance and Features
The SDR 845-101 IC is engineered with top-tier specifications, offering high-speed processing, efficient power consumption, and compatibility with a wide range of mobile architectures. Built to deliver exceptional performance, this IC supports advanced signal processing, making it suitable for next-generation smartphones and communication devices. Leveraging cutting-edge technology, the SDR 845-101 ensures smooth operation while maximizing device efficiency.
Versatility and Reliability
This Mobile Phone IC is highly versatile, compatible with both 4G and 5G networks, and supports a broad spectrum of mobile applications. From boosting connectivity performance to streamlining advanced features, the SDR 845-101 IC guarantees reliable operations under various conditions. Its robust construction and adaptive design ensure long-lasting durability, minimizing the risk of hardware failure and enhancing the overall lifecycle of devices in which it is integrated.
Ease of Integration
The SDR 845-101 offers hassle-free integration into any mobile device system, thanks to its user-friendly architecture and standardized interfaces. Designed for seamless compatibility, this IC simplifies development timelines for manufacturers, saving valuable resources without compromising quality. With this feature-rich component, developers can achieve both faster time-to-market and optimal performance.
Whether you are designing flagship smartphones or cost-efficient models, the SDR 845-101 Mobile Phone IC is the perfect solution for crafting reliable, high-functioning devices that meet consumer demands and industry standards.
The SDR 845-101 is a critical radio frequency (RF) and intermediate frequency (IF) transceiver integrated circuit (IC). Primarily utilized within devices powered by the Qualcomm Snapdragon 845 mobile platform, it serves as the communication bridge between the processor and the cellular network, handling the conversion of signals for transmission and reception.
Below are the detailed specifications and technical parameters for the SDR 845-101 IC.
Technical Specifications: SDR 845-101 Transceiver
| Category | Specification | Details |
| Component Name | Model Number | SDR 845-101 |
| IC Type | RF Transceiver / Intermediate Frequency (IF) IC | |
| Electrical Specs | Supply Voltage ($V_{cc}$) | $1.0\text{V}$ to $6.0\text{V}$ (Nominal operating ranges vary) |
| Dissipation Power | Approximately $0.6\text{W}$ | |
| Current Consumption | Optimized for low-power idle and active RX/TX modes | |
| Thermal Range | Operating Temperature | $0^\circ\text{C}$ to $85^\circ\text{C}$ (Standard mobile range) |
| Storage Temperature | $-40^\circ\text{C}$ to $125^\circ\text{C}$ | |
| Connectivity | Network Support | GSM, WCDMA, LTE (FDD/TDD), TD-SCDMA |
| Compatibility | Integrated with Qualcomm Snapdragon X20 LTE Modem | |
| Maximum Bandwidth | Supports up to 20MHz carrier aggregation | |
| Physical Specs | Package Type | BGA (Ball Grid Array) |
| Ball Count | Specific to mobile motherboard footprints | |
| Weight | ~0.01 kg (unmounted component) | |
| Manufacturing | Process Node | High-performance RF CMOS |
| Manufacturer | Qualcomm (Original Equipment) |
Functional Overview
The SDR 845-101 is designed to work in tandem with the SDM845 (Snapdragon 845) SoC. Its primary role is to manage the radio frequency front-end (RFFE) operations.
-
Signal Processing: It handles the up-conversion of baseband signals to radio frequencies for transmission and the down-conversion of received RF signals to baseband for processing by the CPU/Modem.
-
Carrier Aggregation: It supports advanced LTE features, including 5x carrier aggregation, which allows the mobile device to combine multiple frequency blocks for higher data speeds (up to 1.2 Gbps download when paired with the X20 modem).
-
MIMO Support: Works with 4×4 MIMO antenna configurations to improve signal stability and throughput in congested areas.
Common Compatible Devices
This IC is a standard component found in flagship devices from the 2018–2020 era that utilized the Snapdragon 845 chipset. Notable models include:
-
Samsung: Galaxy S9, S9+, and Note 9 (Snapdragon variants).
-
Google: Pixel 3 and Pixel 3 XL.
-
Xiaomi: Mi 8, Mi Mix 2S, and POCO F1.
-
OnePlus: OnePlus 6 and 6T.
-
Gaming Phones: Black Shark (1st Gen) and Razer Phone 2.
Maintenance & Repair Notes
-
Fault Symptoms: Common indicators of a failing SDR 845-101 IC include “No Service” errors, intermittent signal dropping, or the inability to toggle Wi-Fi/Cellular data.
-
Installation: As a BGA component, replacement requires professional SMD reworking tools (hot air station) and precision reballing stencils ($0.12\text{mm}$ thickness recommended).
