SDR 865 Mobile Phone IC
Innovative SDR 865 IC for Exceptional Mobile Performance
The SDR 865 Mobile Phone IC is a cutting-edge integration designed to power next-generation mobile devices. With enhanced capabilities to deliver seamless connectivity and efficient processing, this IC is a vital component for achieving high-speed network compatibility, robust performance, and improved device efficiency. SDR 865 Mobile Phone IC
Advanced Features Tailored for Modern Needs
The SDR 865 comes equipped with state-of-the-art architecture, ensuring the perfect balance of speed, reliability, and energy efficiency. Features include advanced signal processing techniques, support for 5G bandwidths, and optimized thermal management for consistent performance during demanding operations. Whether for enhancing multimedia experiences, supporting AI-driven applications, or multitasking, the SDR 865 IC meets a variety of needs with precision and reliability.
Unparalleled Compatibility and Efficiency
Designed to seamlessly integrate with modern mobile platforms, the SDR 865 IC ensures optimal performance across diverse hardware configurations. It is compatible with advanced operating systems, delivering smoother user interactions, quicker app startups, and robust connectivity even in high-demand environments. Its compact design and energy-efficient operation make it suitable for both flagship devices and mid-range applications, representing a versatile solution for manufacturers and developers.
Embrace the future of mobile technology with the SDR 865 Mobile Phone IC – a standout choice for enhancing the performance and connectivity of modern devices while setting new benchmarks in efficiency and capability.

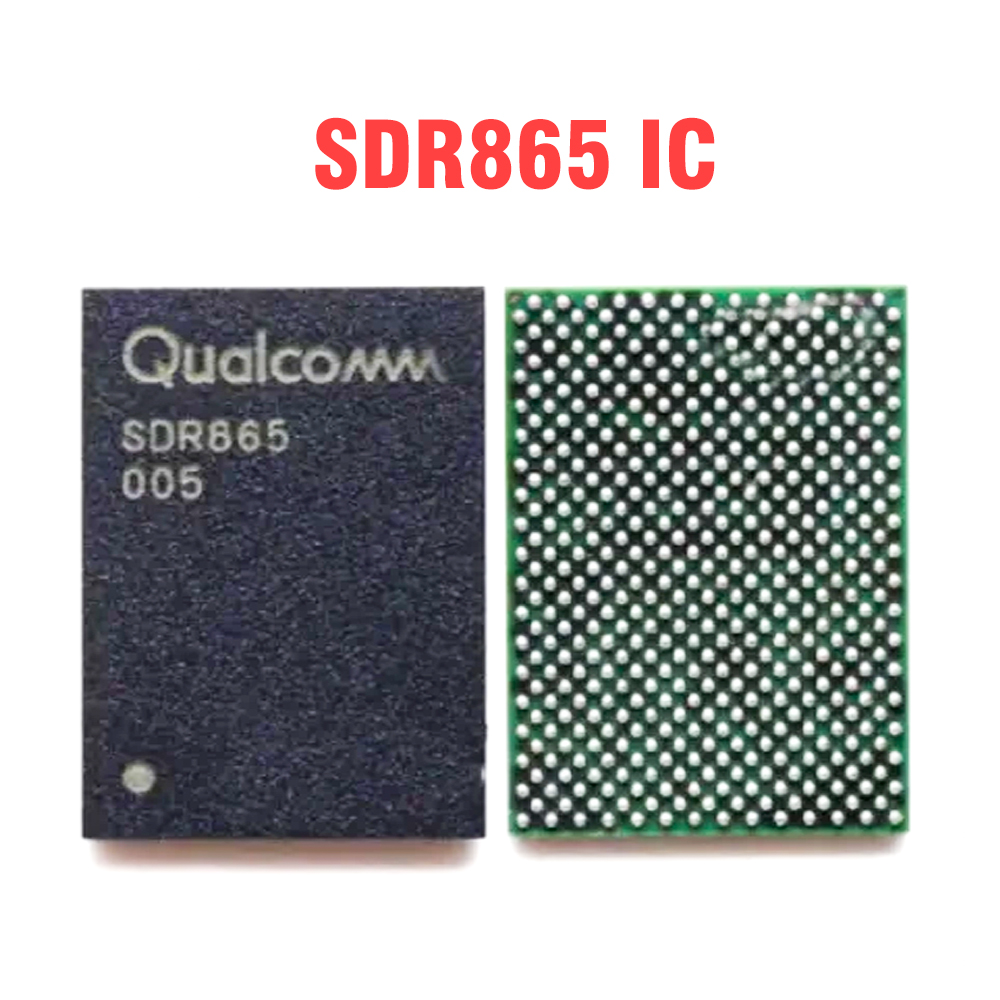

The SDR865 is a high-performance RF Transceiver IC (Integrated Circuit) developed by Qualcomm.1 It is the primary radio frequency component designed to work in tandem with the Snapdragon X55 5G Modem-RF System, famously utilized in flagship devices such as the iPhone 12 series and various Snapdragon 865-based Android smartphones. SDR 865 Mobile Phone IC
Unlike the main processor, the SDR865 handles the “Intermediate Frequency” (IF) and Radio Frequency (RF) signals, serving as the bridge between the digital modem and the device’s antennas. SDR 865 Mobile Phone IC
Technical Specifications: Qualcomm SDR865 IC
| Category | Specification | Details |
| Component Name | Model Number | SDR865 (SDR-865-0-PSP486) |
| Function | Primary Role | RF Transceiver / Intermediate Frequency (IF) IC |
| Modem Pairing | Compatibility | Qualcomm Snapdragon X55 5G Modem |
| Network Support | Multimode Support | 5G (Sub-6GHz), 4G LTE, 3G (WCDMA), 2G (GSM) |
| Package Type | Enclosure | BGA (Ball Grid Array) |
| Pin Count | Connection Points | 486-pin (PSP486) |
| Dimensions | Physical Size | Approx. 6.99 mm x 9.22 mm |
| Process Node | Manufacturing | 7nm Technology |
| Input Voltage | Supply Range | 1.0V to 1.8V (Typical Core/IO) |
| Operating Temp | Thermal Range | -30°C to +85°C |
| Power Consumption | Active State | Designed for low-power 5G envelope tracking |
| Key Use Case | Notable Devices | Apple iPhone 12 Series, Samsung Galaxy S20/S21 |
Functional Overview
The SDR865 is a critical piece of the 5G puzzle.2 While the Snapdragon 865 CPU handles the apps and the X55 Modem handles the data protocols, the SDR865 Transceiver is responsible for: SDR 865 Mobile Phone IC
-
Signal Conversion: Converting digital data from the modem into analog radio waves for transmission, and vice versa for reception. SDR 865 Mobile Phone IC
-
Carrier Aggregation: It supports complex carrier aggregation, allowing the phone to combine multiple frequency bands to achieve the “multi-gigabit” speeds promised by 5G.3
-
Global Band Support: It is designed to be a “Global 5G” solution, meaning a single SDR865 chip can support a vast array of frequency bands used by carriers in different countries.4
-
Integration with mmWave: In devices that support millimeter-wave (mmWave) 5G, the SDR865 works alongside the SMR526 (Intermediate Frequency IC) and QTM525/527 antenna modules to manage high-frequency data.
Repair & Maintenance Note
In the mobile repair industry, the SDR865 is often labeled as the “Intermediate Frequency IC” or “Baseband RF Chip.”5 If a device shows “No Service” or “Searching” despite a working SIM card, technicians often look at this chip or its power lines as a primary point of failure. Because it is a BGA chip with 486 pins, replacement requires professional-grade micro-soldering and reballing equipment.
