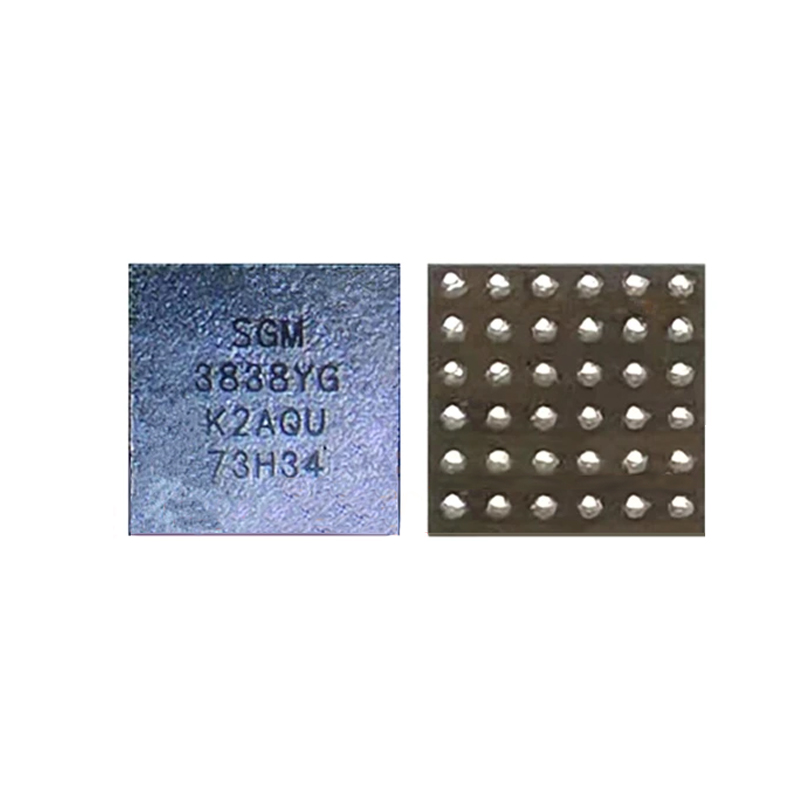

SGM3838YG Mobile Phone IC
Enhance Your Mobile Device with the SGM3838YG
The SGM3838YG Mobile Phone IC is engineered to take your mobile device performance to the next level. With industry-leading efficiency, compact design, and advanced functionality, this IC is a game-changer for mobile device manufacturers and enthusiasts alike. Say goodbye to subpar performance and hello to seamless integration and optimized power management. SGM3838YG Mobile Phone IC
Key Features of the SGM3838YG Mobile Phone IC
Designed with precision and reliability in mind, this component boasts several standout features:
– Boosted Efficiency: Improve power distribution and energy optimization in mobile devices, ensuring consistent and long-lasting performance.
– Compact Design: The SGM3838YG is tailored for modern mobile devices, making it ideal for space-constrained applications.
– Advanced Compatibility: Seamlessly integrates with various mobile device architectures to meet diverse needs.
– Durable Construction: Built to withstand challenging conditions, promising consistent performance over time.
Why Choose the SGM3838YG for Your Mobile Devices?
With the SGM3838YG Mobile Phone IC, you gain a reliable solution that balances cutting-edge innovation and functional stability. Its impeccable engineering reduces energy consumption, minimizes heat generation, and optimizes operation—making it perfect for smartphones, tablets, wearables, or any compact electronic device.
This IC not only delivers unrivaled performance but also prioritizes durability and compatibility, ensuring your mobile device operates smoothly across varying conditions. Make the smart choice to elevate your products with the SGM3838YG Mobile Phone IC today—that’s efficiency, functionality, and dependability in one compact solution.
The SGM3838YG is a high-performance power management integrated circuit (PMIC) specifically designed for AMOLED display power supplies in mobile devices. Manufactured by SGMICRO, it is widely used in smartphones from brands like Huawei (e.g., Nova 9), Honor (e.g., 50 SE), and Vivo. SGM3838YG Mobile Phone IC
Its primary role is to provide the precise triple-voltage rails ($V_{ELVDD}$, $V_{ELVSS}$, and $V_{AVDD}$) required for the backlighting and logic of modern high-resolution OLED panels.
Core Specifications Table
| Feature | Specification Details |
| Manufacturer | SGMICRO |
| Part Number | SGM3838YG/TR |
| Package Type | WLCSP-2.5×2.5-36B (Green) |
| Pin Count | 36 Pins (Ball Grid Array) |
| Input Voltage Range ($V_{IN}$) | 2.5V to 4.8V |
| Operating Temperature | -40°C to +85°C |
| Digital Interface | Single-wire (SWIRE) for voltage programming |
| Main Application | AMOLED Display Power Supply for Smartphones/Tablets |
Output Rail Specifications
The SGM3838YG integrates two boost converters and one inverting buck-boost converter to drive the display.
| Output Rail | Purpose | Voltage Range | Step Size | Max Current |
| $V_{ELVDD}$ | Positive OLED supply | 4.6V to 5.0V | 100mV | 700mA |
| $V_{ELVSS}$ | Negative OLED supply | -0.8V to -6.0V | 100mV | 700mA |
| $V_{AVDD}$ | Analog supply | 5.5V to 7.9V | 100mV | 150mA |
Key Technical Features
-
High Precision: Offers voltage accuracy as tight as 0.7% for critical OLED rails, ensuring uniform brightness across the screen.
-
Protection Mechanisms:
-
Short Circuit Protection (SCP): Prevents damage if the display flex cable or panel shorts. SGM3838YG Mobile Phone IC
-
Overload Protection (OLP): Shuts down if the current draw exceeds safe limits.
-
Thermal Shutdown: Protects the IC from overheating during heavy processing or high brightness. SGM3838YG Mobile Phone IC
-
-
Isolation: Features bi-directional isolation between $V_{IN}$ and $V_{OUT}$ to prevent battery drain or leakage when the display is off. SGM3838YG Mobile Phone IC
-
Start-up Timing: Includes a controlled $V_{ELVSS}$ start-up delay (approx. 5.6ms) to manage power sequencing correctly for delicate OLED layers.
Hardware Application & Repair Note
In mobile repair, the SGM3838YG is frequently identified as the “Display IC” or “Light IC.”
Common Symptoms of Failure:
-
Black Screen: The phone vibrates and receives calls, but the display remains completely dark.
-
Flickering: The screen shows the logo briefly or flickers before going black.
-
No Backlight: In LCD models (where used as a driver), the image is visible only under a bright external light.
Technical Warning: Because this IC uses a WLCSP (Wafer Level Chip Scale Package), it is extremely small (2.5mm x 2.5mm). Replacement requires professional micro-soldering tools, a microscope, and precise temperature control to avoid damaging the surrounding motherboard components or the IC itself.
